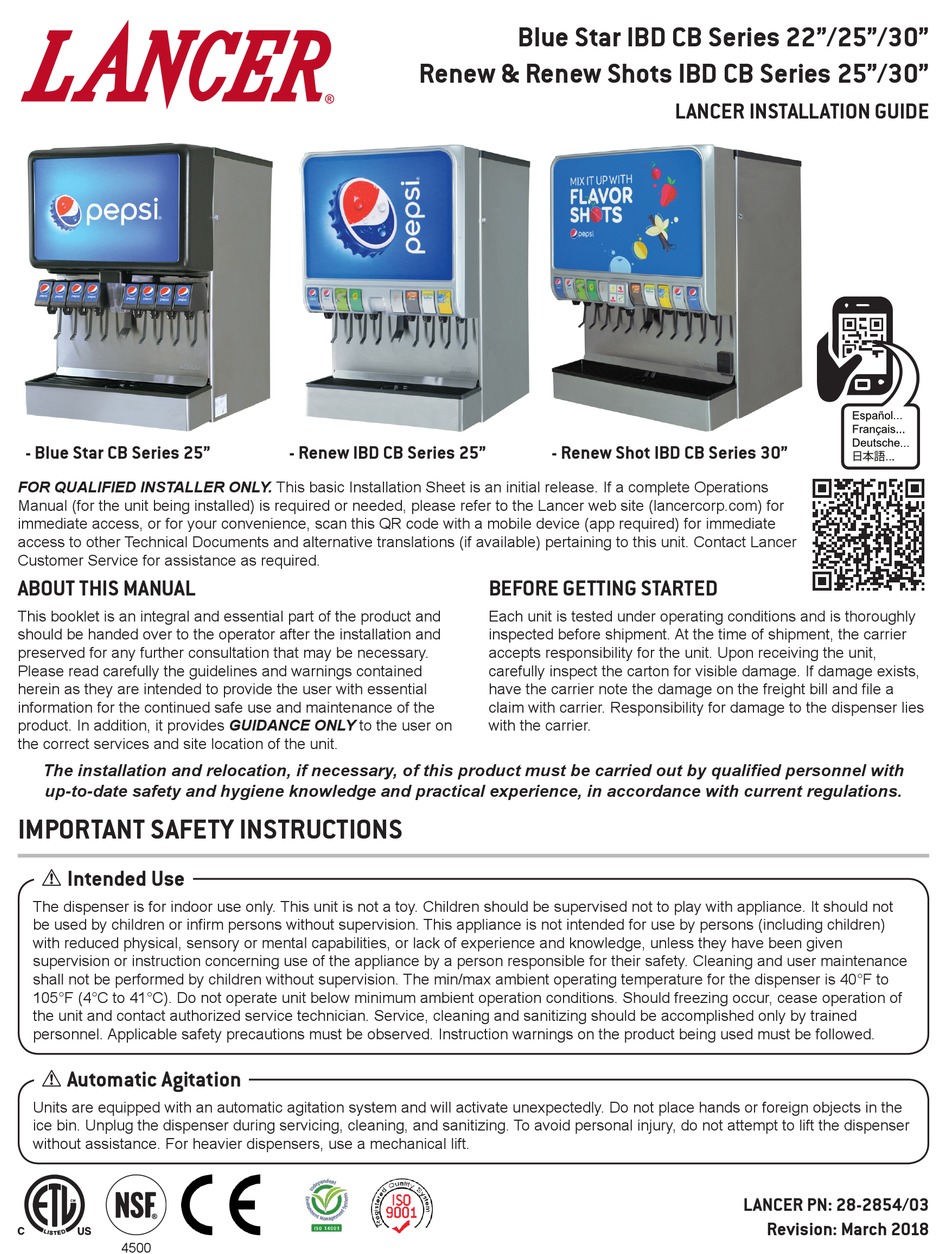

- Blue Star CB Series 25"
FOR QUALIFIED INSTALLER ONLY. This basic Installation Sheet is an initial release. If a complete Operations
Manual (for the unit being installed) is required or needed, please refer to the Lancer web site (lancercorp.com) for
immediate access, or for your convenience, scan this QR code with a mobile device (app required) for immediate
access to other Technical Documents and alternative translations (if available) pertaining to this unit. Contact Lancer
Customer Service for assistance as required.
ABOUT THIS MANUAL
This booklet is an integral and essential part of the product and
should be handed over to the operator after the installation and
preserved for any further consultation that may be necessary.
Please read carefully the guidelines and warnings contained
herein as they are intended to provide the user with essential
information for the continued safe use and maintenance of the
product. In addition, it provides GUIDANCE ONLY to the user on
the correct services and site location of the unit.
The installation and relocation, if necessary, of this product must be carried out by qualified personnel with
up-to-date safety and hygiene knowledge and practical experience, in accordance with current regulations.
IMPORTANT SAFETY INSTRUCTIONS
! Intended Use
The dispenser is for indoor use only. This unit is not a toy. Children should be supervised not to play with appliance. It should not
be used by children or infirm persons without supervision. This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their safety. Cleaning and user maintenance
shall not be performed by children without supervision. The min/max ambient operating temperature for the dispenser is 40°F to
105°F (4°C to 41°C). Do not operate unit below minimum ambient operation conditions. Should freezing occur, cease operation of
the unit and contact authorized service technician. Service, cleaning and sanitizing should be accomplished only by trained
personnel. Applicable safety precautions must be observed. Instruction warnings on the product being used must be followed.
! Automatic Agitation
Units are equipped with an automatic agitation system and will activate unexpectedly. Do not place hands or foreign objects in the
ice bin. Unplug the dispenser during servicing, cleaning, and sanitizing. To avoid personal injury, do not attempt to lift the dispenser
without assistance. For heavier dispensers, use a mechanical lift.
®
4500
Renew & Renew Shots IBD CB Series 25"/30"
- Renew IBD CB Series 25"
Blue Star IBD CB Series 22"/25"/30"
- Renew Shot IBD CB Series 30"
BEFORE GETTING STARTED
Each unit is tested under operating conditions and is thoroughly
inspected before shipment. At the time of shipment, the carrier
accepts responsibility for the unit. Upon receiving the unit,
carefully inspect the carton for visible damage. If damage exists,
have the carrier note the damage on the freight bill and file a
claim with carrier. Responsibility for damage to the dispenser lies
with the carrier.
LANCER INSTALLATION GUIDE
LANCER PN: 28-2854/03
Revision: March 2018
Advertisement
Table of Contents
Related Manuals for lancer Blue Star IBD CB Series 22
Summary of Contents for lancer Blue Star IBD CB Series 22
- Page 1 FOR QUALIFIED INSTALLER ONLY. This basic Installation Sheet is an initial release. If a complete Operations Manual (for the unit being installed) is required or needed, please refer to the Lancer web site (lancercorp.com) for immediate access, or for your convenience, scan this QR code with a mobile device (app required) for immediate access to other Technical Documents and alternative translations (if available) pertaining to this unit.
-
Page 2: Specifications And Features
Ensure the backflow prevention device complies with ASSE and local stan- dards. It is the responsibility of the installer to ensure compliance. SPECIFICATIONS & FEATURES Blue Star IBD CB Series 22” DIMENSIONS ELECTRICAL... - Page 3 Inlet: 3/8 inch barb Max Static Pressure: 65 PSI (0.448 MPA) This unit emits a sound pressure level below 70 dB Features of the Blue Star IBD CB Series 22”/25”/30” Cold Carbonation Capability • Water is pre-chilled in the cold plate before entering the carbonator tank.
-
Page 4: Leveling The Dispenser
Sufficient clearance must be provided, if an ice maker is not An adapter plate is required when installing an icemaker. installed, to allow filling ice compartment from a five gallon Contact your Sales Representative or Lancer Customer bucket (a minimum of 16 inches is recommended). Service for more information. -
Page 5: Dispenser Installation
Route appropriate tubing from the syrup pump location to the Remote Pump Installation syrup inlets and connect tubing to all syrup inlets. If necessary, install water booster (Lancer PN MC-163172) For units with a flavor shot module, route appropriate tubing between water supply and the unit. -
Page 6: Dispenser Setup
Installing CO Supply Using a wrench, loosen lock nut on the regulator adjustment screw of the high pressure CO regulator connected to the Connect high pressure CO regulator assembly to CO source, then using a screwdriver back out lock nut screw all cylinder or bulk system. -
Page 7: Adjust Water Flow Rate & Syrup/Water Ratio
Activate each valve to ensure a good flow of water is page 5 for reference). achieved. Using a Lancer ratio cup verify water flow rate (5 oz. in 4 Ensure pump deck is turned OFF before turning on CO sec.). Use a screwdriver to adjust if needed. -
Page 8: Cleaning And Sanitizing
CLEANING AND SANITIZING GENERAL INFORMATION Lancer equipment (new or reconditioned) is shipped from the factory cleaned and sanitized in accordance with NSF guidelines. The operator of the equipment must provide continuous maintenance as required by this manual and/or state and local health department guidelines to ensure proper operation and sanitation requirements are maintained. The cleaning procedures provided herein pertain to the Lancer equipment identified by this manual. If other equipment is being cleaned, follow the guidelines established by the manufacturer for that equipment. Cleaning should be accomplished only by trained personnel. Sanitary gloves are to be used during cleaning operations. Applicable safety precautions must be observed. Instruction warnings on the product being used must be followed. ! ATTENTION • Use sanitary gloves when cleaning the unit and observe all applicable safety precautions. • DO NOT use a water jet to clean or sanitize the unit. • DO NOT disconnect water lines when cleaning and sanitizing syrup lines, to avoid contamination. • DO NOT use strong bleaches or detergents; These can discolor and corrode various materials. • DO NOT use metal scrapers, sharp objects, steel wool, scouring pads, abrasives, or solvents on the dispenser. • DO NOT use hot water above 140° F (60° C). This can damage the dispenser. • DO NOT spill sanitizing solution on any circuit boards. Insure all sanitizing solution is removed from the system. Cleaning Solution Sanitizing Solution Mix a mild, non-abrasive detergent (e.g. Sodium Laureth... -
Page 9: Cleaning And Sanitizing Nozzles
Cleaning and Sanitizing Nozzles Wash nozzle and diffuser with cleaning solution then immerse in sanitizing solution and let sit for fifteen (15) Disconnect power, so as to not activate valve while cleaning. minutes. Remove nozzle by twisting counter clockwise and pulling Set nozzle and diffuser aside and let air dry. -
Page 10: Ice Chute Cleaning
Ice Chute Cleaning Place syrup lines into sanitizing solution and activate each valve to fill with sanitizer. Let sit for ten (10) minutes. NOTE 10. Reconnect syrup lines to BIB’s and draw drinks to flush It is recommended to perform this procedure monthly, solution from the dispenser. or more often if desired. Use the cleaning solution 11. -
Page 11: Plumbing Diagrams
PLUMBING DIAGRAMS 22” - 6 Valve 25” - 8 Valve *Syrup Lines Not Shown *Syrup Lines Not Shown 30” - 8 Valve 30” - 10 Valve *Syrup Lines Not Shown *Syrup Lines Not Shown Dispenser Disposal To prevent possible harm to the environment from improper disposal, recycle the unit by locating an authorized recycler or contact the retailer where the product was purchased. -
Page 12: Wiring Diagram
WIRING DIAGRAM Lancer Corp. 800-729-1500 Technical Support/Warranty: 800-729-1550 custserv@lancercorp.com lancercorp.com...
