Page 1

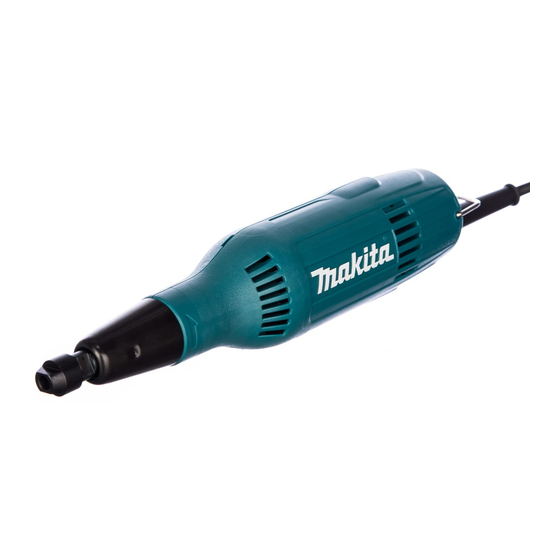

GD0603 Description Die Grinder ONCEPT AND MAIN APPLICATIONS Model GD0603 is the successor of Die grinder 906, inheriting the advantage such as easy handling and compactness. The new aesthetic design is incorporated, and the product competitiveness is Dimensions: mm (") enhanced.
Page 2
257562-1 SLEEVE 9 assembling Ball bearing 698DDW to Spindle [2] LUBRICANT AND ADHESIVE APPLICATION Apply Makita grease FA No.2 to the following portions designated with the black triangle to protect parts and product from unusual abrasion. Fig. 1 Item No.
Page 4
P 4/ 14 epair [3] DISASSEMBLY/ASSEMBLY [3] -1 Spindle, Armature DISASSEMBLING (2) Take out Spindle and Armature section. Fig. 3 Fig. 3 (32) 1. Unscrew four 4x18 Tapping screws (32). slit 2. Twist Slotted head screwdriver inserted in the slit of Housing set (1). Slotted head screwdriver (31)
Page 5
P 5/ 14 epair [3] DISASSEMBLY/ASSEMBLY [3] -1 Spindle, Armature DISASSEMBLING (2) Take out Spindle and Armature section. Fig. 4 Fig. 4 (21) (11) (17) (18) 1. Pull off Spindle (11) and Armature (21) from Couping (18). (17) (11) (13) 2.
Page 6
P 6/ 14 epair [3] DISASSEMBLY/ASSEMBLY [3] -1 Spindle, Armature DISASSEMBLING (3) Remove Ball bearings from Armature. Fig. 5 Fig. 5 1R004-A 1. Remove Retaining ring S-8 (15) with 1R004 and 1R004-A. 1R004 (14) (15) (14) 1R269 2. Remove Ball bearing 608LLB (14) with 1R269.
Page 7
P 7/ 14 epair [3] DISASSEMBLY/ASSEMBLY [3] -1 Spindle, Armature ASSEMBLING (1) Assemble Spindle section. Fig. 6 Fig. 6 1. Insert Ball bearing 608LLB (14) with 1R026 and Arbor press as deep as possible passing over this part. 1R026 (14) ル...
Page 8
P 8/ 14 epair [3] DISASSEMBLY/ASSEMBLY [3] -1 Spindle, Armature ASSEMBLING (2) Assemble Spindle section. Fig. 7 Fig. 7 (12) hole of (11) 1. Align Spindle (11), Spring pin 3-12 (12) and 1R274 as drawn. (11) Hole of 1R274 1R274 2.
Page 9
P 9/ 14 epair [3] DISASSEMBLY/ASSEMBLY [3] -1 Spindle, Armature ASSEMBLING (3) Assemble Armature section. Fig. 8 Fig. 8 1. Align Armature (21), Spring pin 3-12 (12) and 1R274 as drawn. (21) (23) 1R274 2. Assemble Spring pin 3-12 (23) to Armature (21) by tapping 1R268 until the tip of Spring pin 3-12 (23) comes out by 2.25-2.55mm from Armature (21).
Page 10
P 10/ 14 epair [3] DISASSEMBLY/ASSEMBLY [3] -1 Spindle, Armature ASSEMBLING (5) Assemble Spindle section and Armature. Fig. 10 Fig. 10 1. Assemble Spindle section and Armature (21) to Housing set L (1) by passing through Field (26). (26) (21) 2.
P 11/ 14 ircuit diagram Fig. D-1 For High voltage area where Noise suppression is required Color index of lead wires' sheath (2) Noise suppressor Black Blue (3) Terminal block Brown Orange (4) Switch Purple White (5) Power supply cord (20) Brush holder Insulated connector M3.5 (20)
P 12/ 14 iring diagram For easy and exact wiring, put the electrical parts. Fig. D-2 Fig. D-2 Setting Electrical Parts Brush holder (19) has to be so set that the connected Field lead wire (orange) can be Put Choke coil (D) between guided toward Cord clamp (7) side.
Page 13
P 13/ 14 iring diagram Fig. D-3 Pass Field lead wires (Orange, White) under Terminal block (3) has to be so put that the Lead Brush holders (19). wire (blue) of Power supply cord can be easily Pass Field lead wires (Orange, White) between guided out toward Switch (4) side through the Rib A and Rib B.
Page 14
P 14/ 14 iring diagram In case Closed end connector is used instead of Terminal block Fig. D-4 Wiring Put Closed end connector between Brush holder (19) and Cord clamp (7). Do not put Closed end connector on Rib G (rG). (19) (19) (rG)
