U-Line H-2508 Manual

H-2508

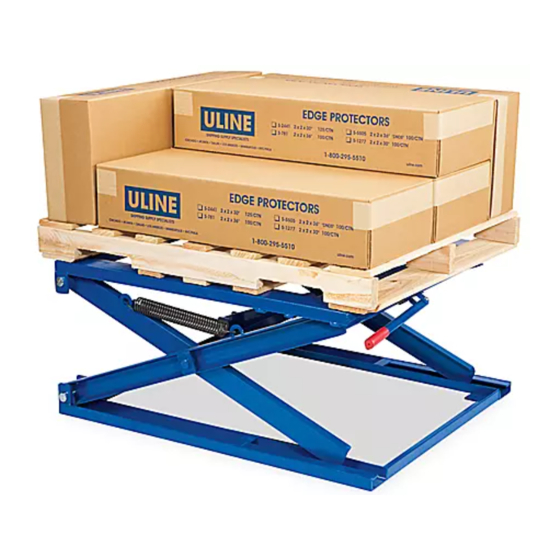

ADJUSTABLE PALLET
STAND
WArNiNG! Follow these safety instructions to
avoid any personal injuries.
1. Raise and lower the pallet stand only from side with
lifting handles and handle bar.
2. Do not raise or lower the pallet stand while loaded.
3. Do not stand on the pallet stand.
4. Do not crawl under the pallet stand at any time.
5. Keep hands, feet, and foreign objects out from
underneath pallet stand.
Spring must be installed prior to use of the Pallet Stand.
NoTE: For spring installation two people are
recommended.
1. Handle bar has three settings. The Middle, or neutral
setting, is for storage only. The Left setting is for
moving the stand from the storage position into the
first position only or vice versa. The right setting is for
is for moving the stand from the first position to the
second or third position and vice versa.
2. Move handle bar securely into the Left setting.
3. Lift stand from the storage position into the first
operating position using a lift handle and
handle bar.
NoTE: Be sure the unit is locked into position
before proceeding on to the next step.
PAGE 1 OF 2
1-800-295-5510
uline.com
SAFETY iNSTrUcTioNS
iNSTALLATioN iNSTrUcTioNS
6. Do not exceed maximum loading capacity of 5,000
pounds.
7. Insure pallet stand is evenly loaded for safety.
8. Visually check that the top of the scissor leg is
securely in lock notch.
9. Make sure all operator safety labels are in place.
4. Slide the handle bar from the Left into the right
setting.
5. Lift stand from the first operating position to the third
operating position.
NoTE: Be sure the unit is locked into position
before proceeding on to the next step.
6. The unit should be in the third operating position
(raised all the way). Attach springs to washers that
are located in-between the scissor legs, just above
the pivot point.
0110 IH-2508
