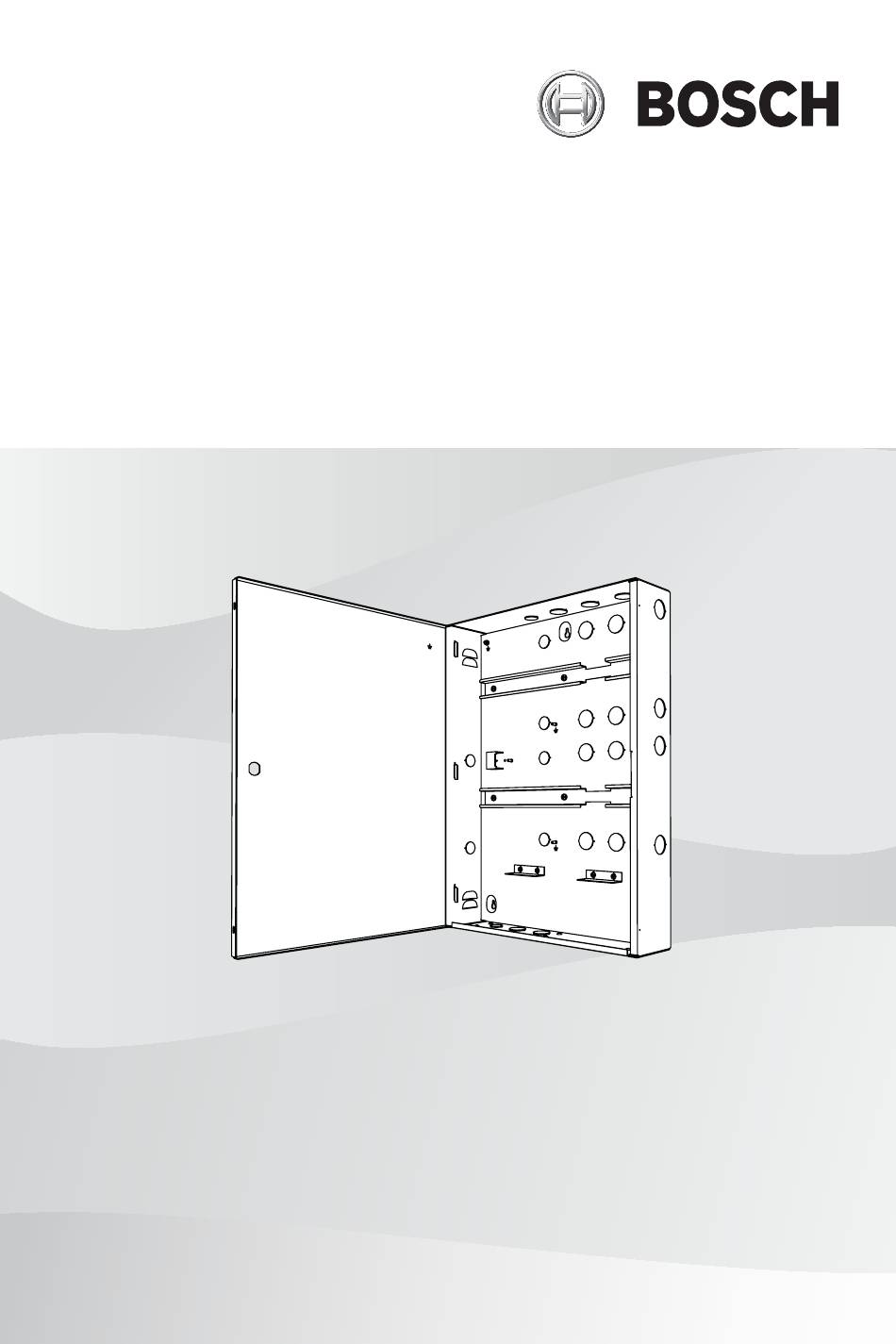

  • Page 1 AMC2 enclosure with 2 DIN rails AEC‑AMC2‑UL02 Installation manual...

  • Page 3: Table Of Contents

    AMC2 enclosure with 2 Table of contents | en DIN rails Table of contents System overview Components of the enclosure Parts included Cables to be assembled Mounting the enclosure Connections Connecting the devices Connecting the cables Connections for supporting Universal Power Supply 3.3.1...

  • Page 4: System Overview

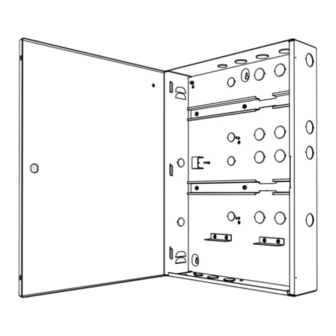

    AMC2 enclosure with 2 en | System overview DIN rails System overview Components of the enclosure Figure 1.1: Components of the enclosure Position Description Cover grounding point Main grounding point 2019-12 | V03 | F.01U.330.017 Bosch Security Systems B.V.
  • Page 5 System overview | en DIN rails Position Description Mounting rail for power supply unit (PSU) and Access Modular Controller (AMC2) AMC2 grounding point Cable knock-outs for reader and signal cables Tamper contact Temperature sensor bracket Fixing bracket for rechargeable batteries...

  • Page 6: Parts Included

    AMC2 enclosure with 2 en | System overview DIN rails Parts included 2019-12 | V03 | F.01U.330.017 Bosch Security Systems B.V.
  • Page 7 AMC2 enclosure with 2 System overview | en DIN rails Position Description Cable ties to secure cables Three screw anchors S8 and M6 × 50 screws Bracket for cable fixing Fuse and fuse holder Bosch Security Systems B.V. 2019-12 | V03 | F.01U.330.017...

  • Page 8: Cables To Be Assembled

    AMC2 enclosure with 2 en | System overview DIN rails Cables to be assembled Position Description Power supply cable (AMC2) Power supply cable (battery) Battery cable Cover ground cable Cover contact wired 2019-12 | V03 | F.01U.330.017 Bosch Security Systems B.V.
  • Page 9 AMC2 enclosure with 2 System overview | en DIN rails Position Description Power cable Power cable with LED indicator (UL required) Bosch Security Systems B.V. 2019-12 | V03 | F.01U.330.017...

  • Page 10: Mounting The Enclosure

    AMC2 enclosure with 2 en | Mounting the enclosure DIN rails Mounting the enclosure The enclosure is designed to be mounted on a wall. Open the door lock of the enclosure with the provided key. Hold the enclosure at the desired position against the wall.
  • Page 11 AMC2 enclosure with 2 Mounting the enclosure | en DIN rails 401 mm 15,787 in 86,5 mm 200,5 mm 3,406 in 7,894 in 5 mm 0,197 in 10 mm 0,394 in 536 mm 21,102 in 5 mm 0,197 in 10 mm...

  • Page 12: Connections

    AMC2 enclosure with 2 en | Connections DIN rails Connections Connecting the devices Precondition: Install readers and other peripheral devices as described in the corresponding technical documentation. 1 2 3 4 5 6 RS-485 EXT Power Supply AMC2 BAT RTH...
  • Page 13 Disconnect the mains supply voltage before you work on the devices inside the enclosure. Installing the components Mount the Access Modular Controller (AMC2) on the right- hand side of the mounting rail. Mount the power supply unit on the left-hand side of the mounting rail.

  • Page 14: Connecting The Cables

    OK. Attach connector A9 (Figure 4.1) to the power supply connection DC. Connect the grounding cable A6 (Figure 4.1) to the AMC2 grounding point. Connecting the AC power cable (F) Use the cables to connect the three-pin connector (Figure 1.1, position 12) to the AC connector (Figure 4.6, position...
  • Page 15 AMC2 enclosure with 2 Connections | en DIN rails Mounting and connecting the power cable with LED indicator Notice! Use this cable (G) instead of cable F if you are installing a system that is to be UL approved. Pass the cable end through the front of the LED bracket hole (Figure 1, position 13).

  • Page 16: Connections For Supporting Universal Power Supply

    AMC2 enclosure with 2 en | Connections DIN rails Connecting the main AC supply X Connect the ground cable to the main grounding point (Figure 1.1, position 2). Connect the neutral wire to terminal N (Figure 3.2). Connect the phase wire to terminal L1 (Figure 3.2).

  • Page 17: 12 V Mode Operation

    AMC2 enclosure with 2 Connections | en DIN rails 3.3.1 12 V mode operation Notice! Make sure that the power supply has the correct output voltage (12 V). Figure 3.3: 12 V mode with one battery (left); 12 V mode with two batteries (right) 12 V mode operation using one battery...
  • Page 18 AMC2 enclosure with 2 en | Connections DIN rails 12 V mode operation using two batteries Set the switch of the power supply unit to 12 V. Connect B12 to the power supply interface labeled BAT. Connect B7b (black) to the rechargeable negative (-) terminal of the battery.

  • Page 19: Mode Operation

    AMC2 enclosure with 2 Connections | en DIN rails 3.3.2 24 V mode operation Notice! Make sure that the power supply has the correct output voltage (24 V). Figure 3.4: 24 V mode Connecting the battery cables Set the switch of the power supply unit to 24 V.
  • Page 20 AMC2 enclosure with 2 en | Connections DIN rails Attach the bracket to the back of the housing next to the batteries. 2019-12 | V03 | F.01U.330.017 Bosch Security Systems B.V.

  • Page 21: Appendices

    DIN rails Appendices UL requirements Notice! All cables connected to the AMC2 modules and the power supply are classified as Class 2 conductors. The battery cable and the AC input cable are non-power limited circuits. Notice! Maintain a minimum of 6.4 mm spacing between all class 2 or 3...

  • Page 22: Cable Assembly

    For instructions on how to assemble these components see Connecting the cables, page 14 . Notice! These components must be assembled by a qualified installer. A - Power supply (AMC2) Figure 4.1: Power cable (AMC2) Position Description Quantity Size Supplier example...
  • Page 23 AMC2 enclosure with 2 Appendices | en DIN rails Position Description Quantity Size Supplier example Wire 18 MediKabel UL Style AWG blue 1015 121180 06 End splice Klauke - 172RK insulated red 1,5 Ring Klauke - 6204 terminal red 4-1...
  • Page 24 AMC2 enclosure with 2 en | Appendices DIN rails B - Power supply (battery) Figure 4.2: Power supply (battery) Position Description Quantity Size Supplier example Wire 18 MediKabel UL Style AWG black 1015 121180 08 Wire 18 MediKabel UL Style AWG black...
  • Page 25 AMC2 enclosure with 2 Appendices | en DIN rails Position Description Quantity Size Supplier example Ettinger - 12.99.491 Conduit Stocko - EH sleeve 4,8 650.110.PA66 Ettinger - 12.99.491 Fuse 125V Littlefuse - 5A 2AG 0229005.HXP Fuse Littlefuse - holder In-...
  • Page 26 AMC2 enclosure with 2 en | Appendices DIN rails Position Description Quantity Size Supplier example Conduit Stocko - EH sleeve 4,8 650.110.PA66 Ettinger - 12.99.491 D - Cover ground cable Figure 4.4: Cover ground cable Position Description Quantity Size Supplier example...
  • Page 27 AMC2 enclosure with 2 Appendices | en DIN rails F - Power cable Figure 4.6: Power cable Position Description Quantity Size Supplier example Wire 18 MediKabel UL Style AWG blue 1015 121180 06 Wire 18 MediKabel UL Style 1015 121180 01...
  • Page 28 AMC2 enclosure with 2 en | Appendices DIN rails G - LED power indicator Figure 4.7: LED power indicator Position Description Quantity Size Supplier example Wire 18 MediKabel UL Style AWG blue 1015 121180 06 Wire 18 MediKabel UL Style 1015 121180 01...
  • Page 29 AMC2 enclosure with 2 Appendices | DIN rails Bosch Security Systems B.V. 2019-12 | V03 | F.01U.330.017...
  • Page 30 AMC2 enclosure with 2 | Appendices DIN rails 2019-12 | V03 | F.01U.330.017 Bosch Security Systems B.V.
