NETGEAR Lifestyle ASG1100 Installation Manual

ASG1100 Lifestyle Gateway with ZigBee

Package Contents

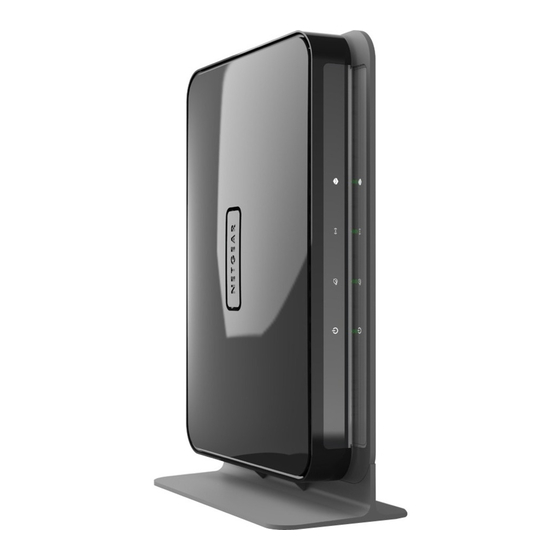

Gateway
Power adapter

Connect the Gateway

Installation Guide
1. Verify the package contents.
2. Decide where to place the gateway.
Note: For best WiFi coverage, identify a relatively central location within the
premises. Ensure that the gateway can be conveniently wired to the broadband
router and is close to an AC outlet.
3. Install the gateway in the proper orientation:
• Mount vertically if most devices are on the same floor as the gateway.
• Place horizontally (after removing the stand) if the devices and gateway
occupy multiple floors.
Vertical mount
Ethernet cable
4. Connect the cables:
a. Connect an Ethernet cable from one of the open ports of the broadband
router to the WAN Ethernet port of the gateway.
b. Pull wires gently to verify that gateway connections are secure.
c. Plug the power cord into the gateway and then plug the power adapter into
an AC outlet.
5. Wait until the Power and Devices LEDs on the gateway become solid green
Horizontal mount
(this could take a few minutes).
6. To begin the installation process, visit
installer credentials to log in to the Example system.
Gateway Broadband router
http://www.example.com
and use
