Page 1

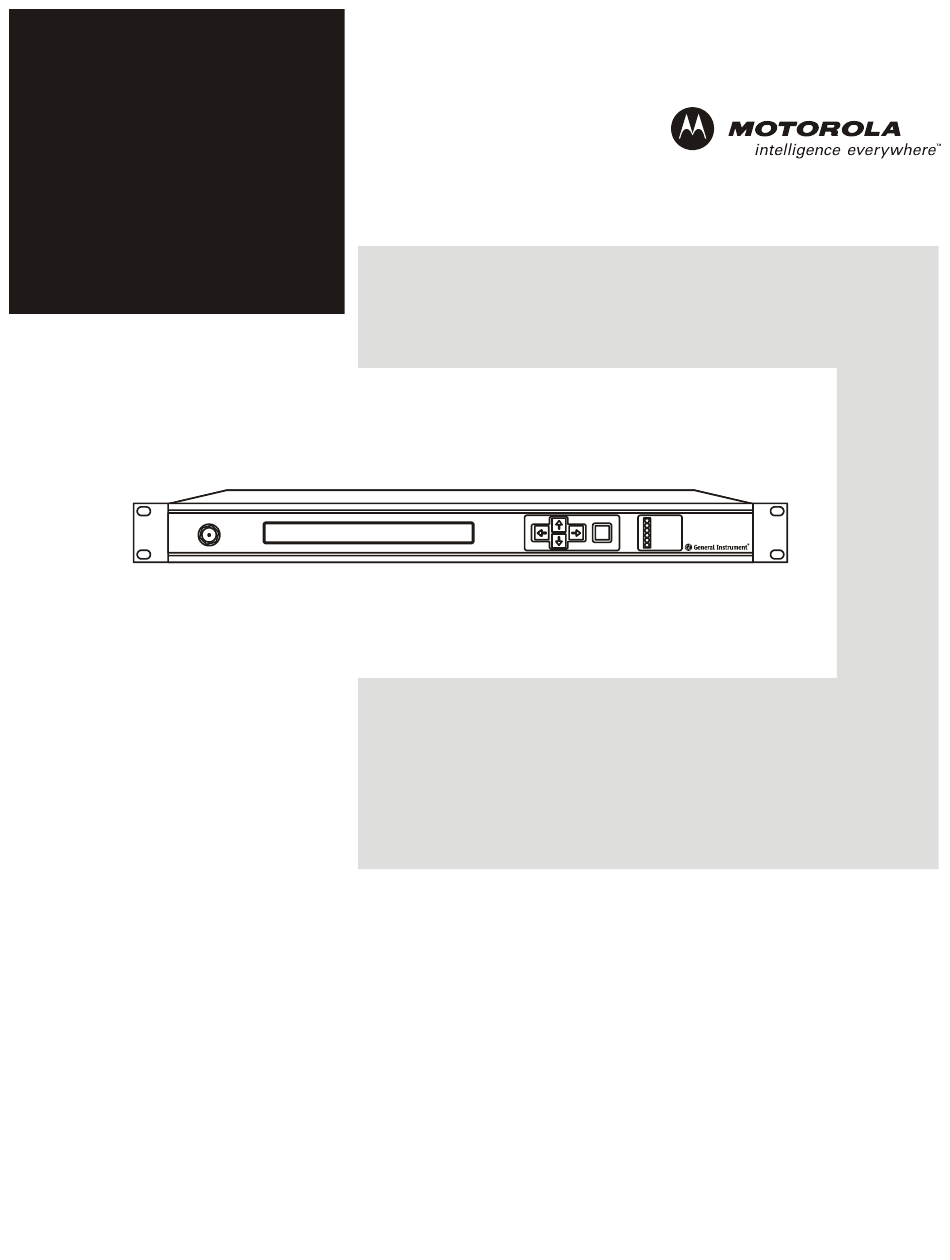

Installation and Operation Manual OM 1000 Out-of-band Modulator Software Version 3.5 TEST OM 1000 -20dB POWER DATA IN MAIN: [INTFC] PORT NET ID EXT SYNC ADMIN CONTRAST> 6 PLL ERROR RF ERROR FAULT SUMM...
Page 2
Any changes or modifications not expressly approved by Motorola could void the user’s authority to operate this equipment under the rules and regulations of the FCC.
Page 3
Motorola, Inc. Motorola reserves the right to revise this publication and to make changes in content from time to time without obligation on the part of Motorola to provide notification of such revision or change. Motorola provides this guide without warranty of any kind, either implied or expressed, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.
Connecting the Interface Cables ..............................3-3 Connecting Ethernet and Modulator Output Cables ......................3-3 Connecting Optional Serial Port Cabling..........................3-4 Connecting the Optional Ground ..............................3-5 Connecting the Power Cable ................................3-5 Confirming Correct Installation ..............................3-5 OM 1000 Installation and Operation Manual...
Page 5
MAIN Menu ......................................4-5 ADMIN Menu......................................4-6 ADMIN Menu⎯Saving and Implementing Changes ......................4-7 ADMIN Menu⎯Rebooting the OM 1000 ..........................4-7 ADMIN Menu⎯Purging the OM 1000 Software ........................4-8 NTFC Menu⎯Modifying the Physical Port Default Settings .......................4-9 INTFC 1 Menu⎯Viewing 1 (RS-232 Console Port) Settings..................4-10 PORT INTFC 2 Menu⎯Setting Up...
Page 6
BOOTP Request and Reply Format............................C-2 BOOTP Request................................C-2 BOOTP Server Reply ...............................C-2 Boot File (FOF) Format ................................C-3 Hosts File Format ................................C-6 Services File Format.................................C-7 The Service Name File..............................C-8 The Gateway File ................................C-9 The Operate Directory..............................C-9 OM 1000 Installation and Operation Manual...
Page 7
Figure 3-1 Rack mounting ................................3-2 Figure 3-2 OM 1000 Ethernet and modulator output connection ....................3-3 Figure 3-3 OM 1000 optional serial and interface output connection ..................3-4 Figure 4-1 Sample OM 1000 configuration menu ..........................4-1 Figure 4-2 OM 1000 MAIN menu..............................4-5 Figure 4-3 ADMIN menu ..................................4-6...
Page 8
Table 2-1 OM 1000 input ports................................ 2-3 Table 2-2 Multiplexer output destinations ............................. 2-4 Table 2-3 OM 1000 front panel RF monitor jack, controls, and indicators................2-8 Table 2-4 OM 1000 input/output and power connections ......................2-9 Table 4-1 Menus ....................................4-2 Table 4-2 MAIN menu options................................
Section 1 Introduction The Motorola OM 1000 Out-of-band Modulator links the digital headend equipment with the distribution system by combining the various out-of-band inputs into a quadrature phase shift key (QPSK)-modulated signal. It converts multiple digital input streams into a RF output signal for transmission over the cable system.
Section 3 Installation provides instructions on how to install the OM 1000. Section 4 Setup and Operation provides instructions on how to set up and operate the OM 1000. Section 5 Troubleshooting provides problem solving, testing, and maintenance information. Appendix A Specifications provides the technical specifications for the OM 1000.
Outside the U.S.: 215-323-0044 Motorola Online: http://businessonline.motorola.com The TRC is on call 24 hours a day, 7 days a week. In addition, Motorola Online offers a searchable solutions database, technical documentation, and low-priority issue creation and tracking. Technical Response Center...
Introduction Calling for Repairs If repair is necessary, call the Motorola Repair Facility at 1-800-642-0442 for a Return for Service Authorization (RSA) number before sending the unit. The RSA number must be prominently displayed on all equipment cartons. The Repair Facility is open from 7:00 AM to 4:00 PM Pacific Time, Monday through Friday.
Other devices in the headend create the specific commands, messages, and downloadable code that make up the information contained in the OOB datastream. The OM 1000 accepts this information and processes it for delivery on the OOB channel by combining it into a Motion Picture Expert Group-2 (MPEG-2) compliant transport multiplex and outputting that transport multiplex as an RF signal.
Overview Functional Overview The primary function of the OM 1000 is to combine multiple OOB data inputs into a single datastream that is transmitted over the OOB channel as an RF signal. The OM 1000 also provides serial data communications to transmit and receive baseband digital data over various serial data ports.
Refer to the operate.txt file in Appendix C, “Initialization Information” for configuration information. In general, OOB data input to the OM 1000 must be in MPEG-2 transport packets. Data sent to configure, control, and boot the OM 1000 need not conform to MPEG-2 format.
The null port is a conceptual destination equivalent to routing a packet to nowhere (that is, discarding the packet). Because of the number of possible input sources and output destinations, the OM 1000 relies on a collection of data-handling specifications called PID maps to support the proper multiplexing and routing of data through the packet multiplexer.
Depending on your system configuration, the Digital Consumer Terminal (DCT) control-stream input to the OM 1000 can include the PID 0 and PID 1 control streams required to define the OOB transport multiplex. If not, these streams are added to the multiplex before it is input to the RF modulator.
PID maps, the packet multiplexer directs input packets to serial data port destination queues and multiplexes them into output datastreams in the same way it routes and multiplexes data for the RF modulator. Serial data ports must be configured as output ports to be valid output destinations. OM 1000 Installation and Operation Manual...
Overview Physical Overview The OM 1000 chassis mounts in a standard 19-inch equipment rack in a digital headend, network hub office, or network end office. It occupies one rack unit (1.75 vertical inches) and requires a blank panel with one rack unit of space above and below it for cooling airflow.

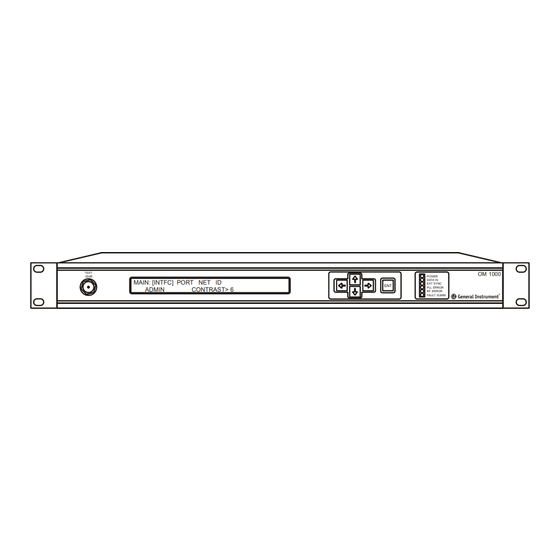

Overview Controls and Indicators The OM 1000 controls and indicators, as well as the RF monitor jack, are located on the front panel. Figure 2-6 illustrates the front-panel controls and indicators: Figure 2-6 OM 1000 front panel TEST OM 1000...
Overview Input/Output and Power Connections All input, output, and power connections to and from the OM 1000 are made at the rear panel, which is illustrated in Figure 2-7: Figure 2-7 Rear-panel EMR ALRT PORT 5 PORT 4 PORT 3...
Page 23
Overview Connector Description is a DB9-pin RS-232 communications port used for console PORT terminal (diagnostic) communications. Reserved for future use. is an RJ-45 type connector. The use of this port is not currently supported. OM 1000 Installation and Operation Manual...
Cabinet containing the RF modulator and related equipment Mounting screws with plastic washers Provided to mount the unit in the rack Acquire the following items that are not included with the OM 1000, but are necessary to complete the installation: Item Description Ethernet cable with RJ-45 connectors Required to connect to the Ethernet connector;...
CAUTION! Improper grounding may damage the OM 1000. Refer to the national guidelines or local standards for the OM 1000 proper grounding to equipment racks and to the building grounding system. To mount the unit in the rack:...
Optional ground wire connection CAUTION! To avoid possible damage to the OM 1000, ensure that the ac-power cord is disconnected before connecting any I/O cables. Connecting Ethernet and Modulator Output Cables For most applications, the RF modulator must be connected to the distribution system. Figure 3-2 illustrates a typical connection for Ethernet and modulator output.
To connect to a serial port: Align the male pins on the DB9 connector with the female connector marked 232 I illustrated in Figure 3-3: Figure 3-3 OM 1000 optional serial and interface output connection RS-232 DB9 to/from out-of-band RS-232 or data providers...
Connect the AC-power cord after all I/O connections are complete. The power supply automatically senses and adapts to any input from 85 through 264 Vac, at 47 through 63 Hz. The OM 1000 meets all specifications with an AC input from 100 through 240 Vac, 50 through 60 Hz.
CAUTION! Any changes you make to operate parameters apply only to the current OM 1000 operating cycle and will be lost when you power down the unit. To save changes to flash memory as default settings at subsequent power ups, select SAVE from the ADMIN menu and then press .
Setup and Operation Menus OM 1000 front-panel LCD functionality is partitioned into six menus as listed in Table 4-1: Table 4-1 Menus Menu Title Function MAIN Main Provides access to the other menus to configure physical ports, logical ports, and the network. It also provides unit identification and access to OM 1000 administrative functions.
(Host control status is set to no host in the OM1000.hst file.) NET CTRL SVC - DAC2OM2 = 5167/tcp (set in OM1000.svc file) (The DAC 6000-to-OM 1000 TCP/IP service connection is set to 5167 in the OM1000.svc file.) OM 1000 Installation and Operation Manual...
This section provides menu procedures to set up the OM 1000 from the front panel. Some of the menu procedures are supplemental, as they do not directly alter operating settings of the OM 1000; however, proficiency with these menus is...
The OM 1000 is shipped with generic application settings stored in flash memory. When you boot the unit from flash memory, the menu displays the initialization parameters followed by Ethernet test results. At the end of the power-up sequence, the OM 1000 displays the MAIN menu, shown in Figure 4-2: Figure 4-2...
Page 34
Do not use the PURGE AND REBOOT option unless the OM 1000 is connected to a BOOTP server on your LAN; the OM 1000 will not download new application image files and will not be rebooted if it is not connected to a BOOTP server.
Page 35
RAM disk, the unit broadcasts BOOTP requests over the Ethernet for up to 10 seconds. If the OM 1000 receives a response from the server, a new boot file transfers to the OM 1000 through the Ethernet. The information in the BOOTP response includes the unit IP address and subnet mask, the IP address of the host server, and the full path name of the boot file.
Page 36
CAUTION! If the BOOTP server is NOT on the local network, the OM 1000 will not be reloaded with software and will not be rebooted. Erasing OM 1000 software should only be done when a new version of OM 1000 software is to be loaded onto the OM 1000.
Time-To-Live (TTL) setting, a selection for enabling or disabling IGMP, and a menu selection for the multicast MAC receive address assigned to the OM 1000 at the factory. Displays the MAIN menu. Configures the operating parameters for optional 4.
MAC address, TTL settings, IGMP settings, and a menu selection for the assigned multicast MAC receive address. Figure 4-5 illustrates the INTFC 3-ENET menu: Figure 4-5 INTFC 3 ENET menu OM 1000 Installation and Operation Manual...
Displays the previous menu. RCV MCAST Displays the multicast receive menu. 000 through 255 Sets the multicast transmit TTL value. The OM 1000 must then be rebooted before any changes are applied. IGMP ENABLE Enables or Disables IGMP. The OM 1000 must then be DISABLE rebooted before any changes are applied.
71.00 menu Modulator modulator • selection setup menu • 6 MOD • Port 75.25 selection • • • 129.00 Back to INTFC menu Modulator mode • • • Output signal level • • • OM 1000 Installation and Operation Manual...
Select 2T TEST to enable the modulator to generate and transmit a two-tone test and then proceed to Spectrum Analyzer Procedure⎯Setting the Modulator Output Signal Level in 2T Test Mode to measure and adjust the output signal level. OM 1000 Installation and Operation Manual...
CW carrier. In general, the test modes are reserved for factory testing; however, some are useful for troubleshooting specific equipment faults. Refer to Section 5, "Troubleshooting," for more information on modulator test modes. OM 1000 Installation and Operation Manual...
Measure and record the signal level of the analog carriers by observing the level of the carriers during sync tip. During sync tip, the full power of the signal is concentrated in the carrier. Connect the of the OM 1000 to a spectrum analyzer configured as follows: RF OUT Configuration Setting...
During sync tip, the full signal power is concentrated in the carrier. Connect the of the OM 1000 to a spectrum analyzer and measure the power of the RF OUT modulator-output signal using a 300 kHz resolution bandwidth. Because this test mode generates CW carriers, no correction factor need be applied to the measured power level.
Setting up the internal MPEG message generator port Main menu Interface Interface Interface menu port Console INTFC selection setup menu 530/232 Back to Interface menu ENET Back to EA-PORT main menu UNEQPD 00000 • 530/232 EA-PIDS 1503H • FFFFF OM 1000 Installation and Operation Manual...
PID value, the value is overwritten, which forces the default entry to take effect and nullifies the mapped value. Refer to Setting PID Maps to set up PID mapping for the internal generator port. OM 1000 Installation and Operation Manual...
Setup and Operation 4-19 PORT Menu⎯Setting Up Logical Ports The OM 1000 supports up to 16 logical ports, designated as 1 through 16. To set up a logical port: Select the logical port number to configure. Select the physical interface associated with the logical port.
3rd output through destination Multicast receive menu (disabled if not IN) Delete map DELETE Multicast 224.000.000.000 * Displayed for PIDTBL entries 2-28 only receive RCV-IP# menu 239.255.255.255 Back to UDP port setup menu OM 1000 Installation and Operation Manual...
Selects the logical Ethernet input port for the MORE menu. The MORE menu allows the user access to the RCV MCAST IP menu. SRC-UDP 05000 The UDP port number must be unique across the entire OM 1000. through 65535 OM 1000 Installation and Operation Manual...
Commits the current settings to the OM 1000 database. To store the settings permanently, display the ADMIN menu and save the settings. This is displayed only when a change is made. The OM 1000 must then be rebooted before any changes are applied.
Page 51
UDP port number. If two logical input ports are configured to use the same UDP port number, upon rebooting, the OM 1000 will only configure the first input port. A Trap error will be sent out if the trap receive address is configured.
Specifies the hexadecimal number to which the specified input PID is through re-assigned for output. Press to move from digit to digit or change 1FFFH digits. This is not displayed on the menu for PID table entry number 01. OM 1000 Installation and Operation Manual...
Page 53
If keys E, F, and G are set to zero, the input sent to the associated logical port for this entry is deleted. DELETE Deletes this map from the set of PID maps for this port. OM 1000 Installation and Operation Manual...
PORT Menu⎯Setting Receive Multicast IP Addresses (Logical Ethernet Input Ports Only) Each logical Ethernet input port receives data that is sent to the OM 1000 as either singlecast or broadcast packets. In addition, each Ethernet input port can receive data that is sent to it as multicast data.
After all changes are made, select the COMMIT field and press . All changes are immediately applied (the OM 1000 does not have to be rebooted). To save the changes to flash memory, select SAVE from the ADMIN menu. Table 4-13 describes the fields and available options:...
Logical Ethernet Output Port menu (Figure 4-19). Select the MORE option and then press ENT to display the Logical Ethernet Destination IP Address menu (Figure 4-20). Select DST-IP and enter a destination IP address (singlecast, broadcast, or multicast IP address). OM 1000 Installation and Operation Manual...
After all changes are made, select UP to return to the logical Ethernet output port menu. Select COMMIT to commit all changes to the OM 1000 database. To save the changes to flash memory, select SAVE from the ADMIN menu. The OM 1000 must be rebooted for these changes to take effect.
To store the settings permanently, display the ADMIN menu and save the settings. This is only displayed when a change is made. The OM 1000 must then be rebooted before any changes are applied. Figure 4-20 illustrates the logical Ethernet destination IP address menu:...
Setup and Operation 4-31 NET Menu⎯Setting Up the Network For the OM 1000 to function properly on the network, set the: IP address for the OM 1000 and the host Subnet mask Port protocol Select NET on the MAIN menu to display the NET port setup menu illustrated in Figure 4-21:...
Select OAM&P to display the OAM&P menu illustrated in Figure 4-23: Figure 4-23 OAM&P menu Select SUBNET and enter the value required for your configuration. Select IP and enter the value required for your configuration. OM 1000 Installation and Operation Manual...
255.255.255.255 The BOOTP server through the BOOTP response normally assigns the subnet mask. If the subnet mask is not zero (0.0.0.0) in the BOOTP response, it overrides the subnet mask stored on the OM 1000 and displays here. NET Menu⎯Setting Up the CTRL (Control) Menu Options...
This field displays the previous menu. STATUS x This display-only field displays the current status of the Host to OM 1000 connection. This field informs the user if an OM Host is specified, if the specified OM Host is connected, or if the specified OM Host is not connected.
Select the service corresponding to the TCP/IP connection to the DAC 6000. The source for the services selections is the services file. PORT/PRTCL n This display only field is the corresponding port protocol. OM 1000 Installation and Operation Manual...
Back to Network setup menu To set up SNMP: Select NET on the OM 1000 Main menu to display the NET menu. Select SNMP and then press to display the SNMP menu illustrated in Figure 4-28: Figure 4-28 SNMP port setup menu Select TRAP RCVR IP and then program the desired IP address.
For example, if x = 10 and y = 5, then the OM 1000 would have to drop 50 packets over a five-minute time frame to create an alarm condition. The OM 1000 calculates the number of drops approximately once every minute.
The number of occurrences where the continuity count is not contiguous is used as a trigger to send out SNMP traps based on user-defined thresholds. The OM 1000 sends a major alarm when it has detected that the user defined threshold for such occurrences has been exceeded.
Table 4-21 describes the fields and available options: Table 4-21 ID menu options Field Description Identifies the current menu. UNIT Displays the UNIT menu. SOFTWARE Displays the SW menu. LOCATION Displays the LOC menu. Displays the MAIN menu. OM 1000 Installation and Operation Manual...
UNIT menu options Field Description UNIT Identifies the current menu. SN n Identifies the serial number for the OM 1000. HW VER n Identifies the hardware version for the OM 1000. Displays the ID menu. MORE Displays the extended UNIT menu.
Displays the UNIT menu. The inventory code is settable in the OM1000.ini file with an ASCII editor. After you set the OM1000.ini file, you must download the file to the OM 1000 through BOOTP/TFTP. OM 1000 Installation and Operation Manual...
APP n Identifies the software application version. BOOTROM n Identifies the software bootrom version. Displays the ID menu. AGENT x Identifies the OM 1000 SNMP agent version. MIB n Identifies the SNMP MIB version. OM 1000 Installation and Operation Manual...
Identifies the shelf for this unit. The area, rack, and shelf fields are settable in the OM1000.ini file with an ASCII text editor. After you set the OM1000.ini file, you must download the file to the OM 1000 through BOOTP/TFTP.
Troubleshooting This section provides information to help you isolate and resolve common error conditions reported by the OM 1000. It also provides maintenance recommendations if the unit fails to power up. If you need assistance, contact the TRC at: Inside the U.S.: 1-888-944-HELP (1-888-944-4357) Outside the U.S.: 215-323-0044.
Improper contrast setting or bad Adjust the contrast until the display display is optimum, or return the readability or blank OM 1000 to the factory for repair or replacement. Adjusted port settings did not Changes were not committed or Commit and then save the saved through the front-panel changes.
In the CON Test mode, the FIR filter frequency-response shape is a raised cosine with an alpha value equal to 0.5. This mode is useful for testing using a constellation or vector analyzer. OM 1000 Installation and Operation Manual...
0 through 50° C 0 through 90%, non-condensing Ambient humidity −40 through +75° C Storage temperature Convection Cooling Physical Specifications Dimensions 17 L x 17 W x 1.75 H inches Weight 8 lbs Mounting Rack mount PRELIMINARY OM 1000 Installation and Operation Manual...
Data (Bit) Rate are optional ports. OPT1 OPT2 When the OM 1000 is configured with the optional RS-530 interface (part number 453970-003), must use the external clock when receiving the TCI TAC stream. OPT1 OM 1000 Installation and Operation Manual...
Appendix B Cabling Specifications This appendix provides interface-cabling guidelines for the OM 1000. RS-232 DB9 Interface Cabling ( PORT The OM 1000 is configured as a DTE: Connector DB9 male shielded connector with screw locks type Cable type Shielded twisted pair...
Sinking the clock is needed when sending data through a modem through a network T1 line. In this case, the modem sources a clock that is locked to the network. The OM 1000 sinks the clock and sources data to the modem to be sent to the network.
Cabling Specifications DB25 RS-530 Interface Cabling ( - Optional Module) PORT PORT The OM 1000 is configured as a DTE. Connector type DB25 male shielded connector with screw locks Cable type 25 conductor shielded Bit rate 56 K maximum async/2 Mbps sync...
Syncing the clock is needed when sending data through a modem through a network T1 line. In this case, the modem sources a clock that is locked to the network. The OM 1000 syncs the clock and sources data to the modem to be sent to the network.
The OM 1000 begins initialization by broadcasting a BOOTP request over its Ethernet port. When initializing with the self-boot option, the OM 1000 times out waiting for a reply and then initializes itself from the information stored in its flash memory.
The BOOTP request is transferred using User Datagram Protocol (UDP). BOOTP Server Reply In the BOOTP reply to the OM 1000, the BOOTP server includes: A value indicating that the message is a BOOTP reply The IP address of the boot server...
(an “F” at the end of the line listing the file), the listed file is then downloaded to the OM 1000. If the downloaded FOF and the OM 1000 local copy are the same and a force download flag does not exist in the FOF, the OM 1000 does not download any additional files. It continues booting using the values stored in flash memory.
Initialization Information CAUTION! Do not change the second field, which is the symbolic name used by the OM 1000. Changing the name can cause an initialization failure. Figure C-1 provides an example of an FOF file: Figure C-1 Sample FOF file...
The hosts file, specified in the FOF, defines the names and IP addresses of all other devices in the headend LAN with which the OM 1000 must communicate. In the hosts file, all lines must be either comment or data lines, and each line must be terminated with a carriage return or a carriage return plus line feed.
Initialization Information Services File Format The services file specified in the FOF defines the TCP/UDP ports the OM 1000 uses to communicate with other devices in the headend LAN. Within the services file, all lines must be either comment or data lines, and each line must be terminated with a carriage return or a carriage return plus line feed.
OM 1000 logical ports (ports 1 through 16). During initialization, the OM 1000 reads this file. The OM 1000 uses a local copy of this file unless it cannot find it or is forced to download it from the boot server through a "force" command in the associated FOF.
#---------------------------------------------------------------------- The Operate Directory The Operate Directory contains the basic set of files required for normal OM 1000 operation. Its files and their purpose are listed below. An asterisk following the file name indicates a file that may require modification for use in a particular site. All other files should not be altered.
Page 91
If the Multicast Receive capability is to be activated, the Multicast Receive MAC address must be specified. Example: [Physical Port Configuration] PhysicalTable = #Group 1 2 0 0 0 0 0 0 0 0 0 0 0 0 #Group 2 OM 1000 Installation and Operation Manual...
Page 92
ACC-4000D. 1000. Network services and their ethernet port and protocol are listed here. The OM-1000 uses this file to select the control device port and protocol (usually 5167/tcp). See the file header for format. OM 1000 Installation and Operation Manual...
Integrated Receiver Transcoder 1000/2000 IRT 1000 Integrated Receiver Transcoder 1000 Integrated Receiver Transcoder 2000 IRT 2000 International Standards Organization Integrated Transport Encryption Multiplexer 1000 ITEM 1000 local area network liquid crystal display light-emitting diode OM 1000 Installation and Operation Manual...
Page 94
RPD 1000 return for service authorization service control channel SNMP Simple Network Management Protocol Transmission Control Protocol Transmission Control Protocol/Internet Protocol TCP/IP Trivial File Transfer Protocol TFTP User Datagram Protocol unshielded twisted pair unique word OM 1000 Installation and Operation Manual...
The received bits are used to detect and correct transmission errors. Headend Configuration Tool (HCT 1000) A Motorola PC-based tool for provisioning network devices in a digital CATV headend or broadband interactive network. The HCT 1000 helps set up embedded code images, assign IP addresses to network devices, and set up start-up parameters.
Page 96
A block-based encoding technique used for forward error correction. User Datagram Protocol (UDP) A transmission protocol that uses an IP address to identify the destination host and a port number to identify the destination application. OM 1000 Installation and Operation Manual...
