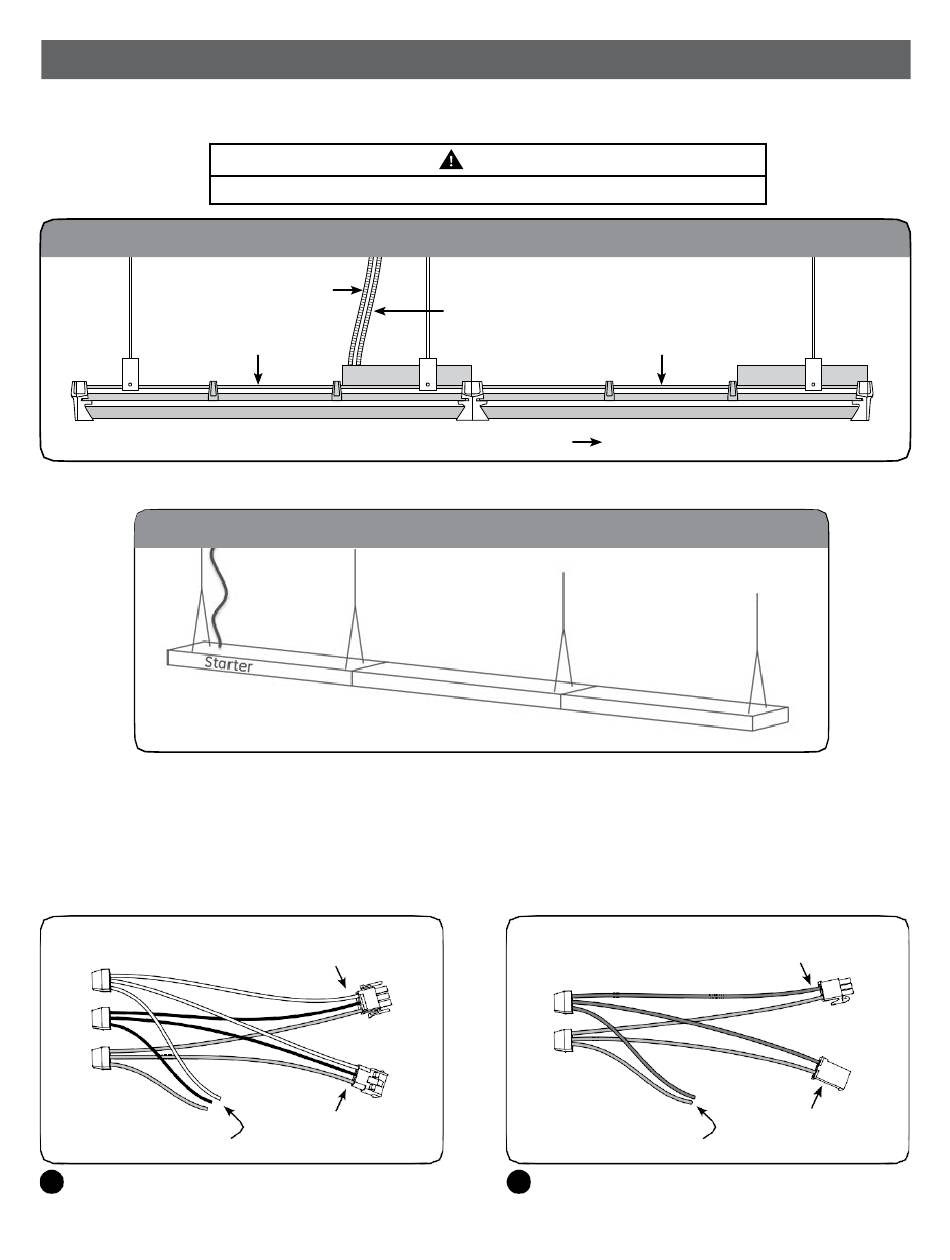

Installation of a Continuous Row using a Starter Kit

Use starter kits as a convenient way to install continuous rows. Starter kits are ordered separately (SKU 93018007 provides parts for
1 continuous row, SKU 93022791 provides parts for 10 continuous rows).
First fixturein
Continuous runs must begin with a first unit that is suspended at both ends. Use provided end-caps from starter kits to begin and
terminate the row.
As the name implies, the Starter (if your product has such a choice) contains the beginning of the electrical connection.
This means that this fixture has the only Power Drop.
The starter, when suspended, also is normally the only fixture in the row with (2) suspension hangers.
The rest of the run may be suspended from a single hanger (positioned near the end where the next fixture will connect).
For mechanical installation, follow steps 1-6 described earlier in these install instructions.
Connect to AC line using
separate UL listed wire nuts
1
Use provided starter power harness as an extension
for the first fixture in the row.
THERE IS A REqUIRED DIRECTION FOR ASSEMBLING A CONTINUOUS ROW.
ACline
the row
Direction of continuous row installation
The Starter & Continuous Run fixtures connect in rows
Connect to power harness in
driverenclosure
Connect to next fixture in
continuous row
CAUTION
Ceiling
Dimming line
(optional)
Connect to dimmingline
(optional) using separate
UL listed wirenuts
2
A dimming starter harness is provided to optionally
connect the dimming through wiring to the dimming line.
5
Next fixture in
the row
Connect to dimmingharness
in driverenclosure
Connect to next fixture in
continuous row
