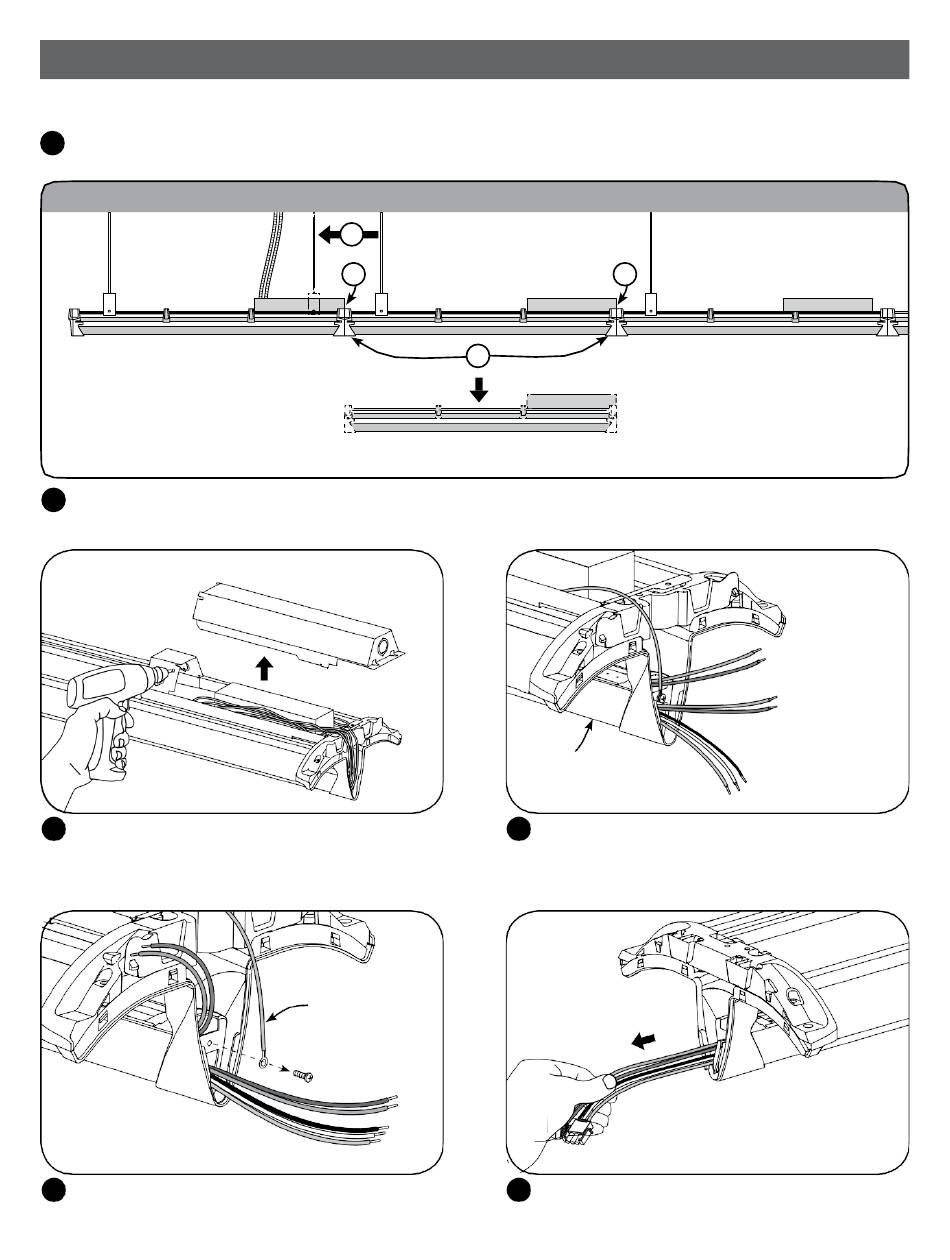

Light Engine Replacement Procedure
For optical codes A, B, E, F, G, J, K, M, N, P, R, S
1
Disconnect the luminaire power source.
1.
Move suspension point to avoid
cantilever effect.
2.
Remove 2 screws on PSU cover.
Disconnect wires to adjacent
fixtures.
3.
Unsnapboth ends.
2
Remove fixture from ceiling.
3
Unscrew and remove the PSU cover.
5
Remove ground screw and wire.
Ceiling
1
2
3
Fixture toreplace
Groundwire
11
2
Heatsink
4
Locate AC, DC and dimming wires coming from
heatsink and cut or disconnect them (other wires
not shown for clarity).
6
Pull out the thru wiring from the opposite end.
Save wiring forlater.
DC wires
(blue/red)
Dimming wires
(grey/purple)
AC wires
(black/white/green)
