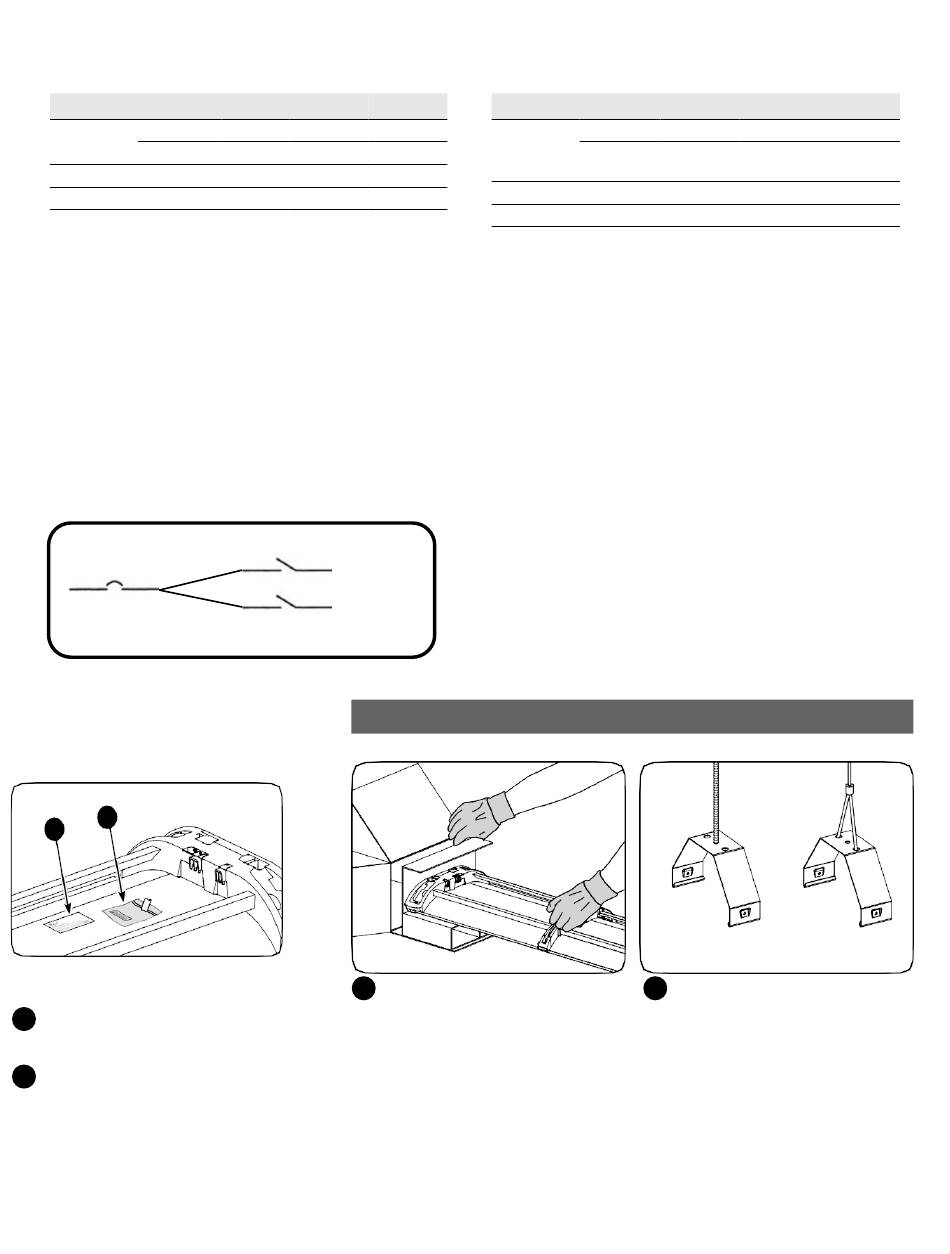

Installation Of An Independent Unit (Is1) - GE Current Lumination IS Series Installation Manual

IMPORTANT - Maximum Length of Electrical Run
IS of First Generation
Voltage A E,G,S or J
120V 192'
277V or 347V 400'
• Please see technical data sheet for electrical properties
to ensure safe installation.
• Under an y circumstance, maximum driver current
through connected fixtures shall not exceed 15A for
types A, G, J, B, F, K, or E.
• Maximum drive current through connected fixtures shall
not exceed 12A for types M, N, P, R.
IS series luminaires come in two versions: continuous units (ISC series) and independent units (IS1 series). A continuous electrical run
will consist of a number of continuous units up to a maximum current specified above. When installing luminaires use clean gloves
in order to avoid fouling the reflective surface. To insure a clean fixture, install the fixture with the plastic bag around the fixture, and
then remove plastic bag upon completion of any and all construction related activity.
If two additional circuits are included in luminaire, they must be connected in daisy chain to the same
circuit breaker as per diagram below and total current not exceeding a maximum of 15A or 12A (per
above comment).
Breaker
Daintree Node
Identiftcation Label
1
Daintree Node identification label installed
1
on luminaire back reflector.
2
Remove package with smaller label. This label
is to be used for customer floor plan or records.
Lumen Code
B,F or K M,N,P or R U,V,W or X
160' 80'
320' 188' 132'
Circuit #1
Circuit #2

Installation of an Independent Unit (IS1)

1
Carefully unpack unit and inspect for
defects before installing. Wear work
gloves to prevent dirt and oil from
being transferred to the luminaire.
NOTE: When installing luminaires use
clean gloves in order to avoid fouling
the reflective surface.
IS of Second Generation
Voltage
60'
120V
277V or347V
• Maximum driver current through connected fixtures shall
not exceed 15A for lumen codes [42], [52], [84], or [A0].
• Maxiumum driver current through connected fixtures shall
not exceed 12A for lumen codes [65], [85], [A3], [A7], [A1],
[A2], [B1] or[B4].
3
Lumen Code
[65] [85]
[42] [84] [52][A0]
[A3][A7]
192' 160' 80'
400' 320' 188'
Choose suspension method
2
Attach mounting bracket to ceiling
support structure either directly or
using a GE suspension kit according
to the suspension kit instructions
(see page 2). Maximum distance
between suspension points shall not
exceed the length of the luminaire.
[A1][A2]
[B1][B4]
60'
132'
