Honeywell V5013N Product Data

Three-way threaded globe valve
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

APPLICATION

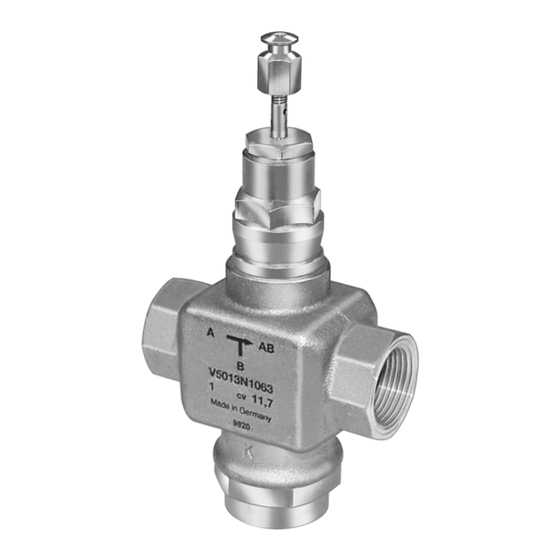

The V5013N is a three-way threaded globe valve that
controls hot water, cold water, and glycol solutions (up to 50
percent concentration) in heating or cooling HVAC
applications. The valve is used for mixing service to direct
flow from one of two inlets to a common outlet in two-position
or modulating control systems.
® U.S. Registered Trademark
Copyright © 1998 Honeywell Inc. • All Rights Reserved
Three-Way Threaded Globe Valve

FEATURES

• Red brass body with NPT-threaded connections.
• Stainless steel stem and brass plug.
• Low seat leakage rate (≤0.05 percent C
• Spring-loaded, self-adjusting packing.
• 50:1 rangeability per VDI/VDE 2173.
• Constant total flow throughout full stem travel.
• Accurate positioning to ensure state of the art
temperature control.
• Sizes range from 1/2 inch to 2 inches.
• Suitable for pneumatic or electric/electronic actuation.
• Repack and rebuild kits available for field servicing.
Application ........................................................................... 1
Features .............................................................................. 1
Specifications ...................................................................... 2
Ordering Information ........................................................... 2
Installation ........................................................................... 7
Checkout ............................................................................. 8
V5013N
PRODUCT DATA
).
v
Contents
63-2549

Advertisement

loading

Related Manuals for Honeywell V5013N

Summary of Contents for Honeywell V5013N

  • Page 1: Table Of Contents

    • Suitable for pneumatic or electric/electronic actuation. • Repack and rebuild kits available for field servicing. APPLICATION The V5013N is a three-way threaded globe valve that controls hot water, cold water, and glycol solutions (up to 50 percent concentration) in heating or cooling HVAC applications.

  • Page 2: Specifications

    Honeywell Inc., 1885 Douglas Drive North Minneapolis, Minnesota 55422-4386 (612) 951-1000 In Canada—Honeywell Limited/Honeywell Limitée, 155 Gordon Baker Road, North York, Ontario M2H 3N7. International Sales and Service Offices in all principal cities of the world. Manufacturing in Australia, Canada, Finland, France, Germany, Japan, Mexico, Netherlands, Spain, Taiwan, United Kingdom, U.S.A.
  • Page 3 L - LOWER SEAT U - UPPER SEAT USE 4-11 PSI (30-75 kPa) RANGE FOR DETERMINING CLOSEOFF OF VALVES WITH MP953E M12908 ACTUATORS. Fig. 1. Close-off pressures at various control air pressures for V5013N Valves and MP953 Pneumatic Actuators. continued 63-2549...
  • Page 4 MP953F ACTUATORS. M12907 Fig. 1. Close-off pressures at various control air pressures for V5013N Valves and MP953 Pneumatic Actuators (continued). Table 2. Close off ratings (psid) for V5013N Valves with electric/electronic actuators and Q5001 Linkages. ML6421A,B ML6425A,B ML7984, Mod IV Motor with Q5001 Linkages...
  • Page 5 3-5/16 (83.5) NOTE: 1 DIMENSION IS WITH STEM FULLY UP, NOT DOWN. 2 WITH STEM EXTENSION FOR MP953A,C (8 IN. ONLY) M12901 Fig. 2. V5013N body dimensions in in. (mm). Replacement Parts: See Fig. 3. Stem Repack Kit Rebuild Kit Stem Button Valve OS No.
  • Page 6 V5013N THREE-WAY THREADED GLOBE VALVE V5013N THREE-WAY GLOBE VALVES STEM BUTTON ASSEMBLY PACKING NUT REPACK KIT PACKING CARTRIDGE VALVE BODY SEAT RING PLUG ASSEMBLY LOWER SEAT 0901787 REPACK KIT (FOR VALVES WITH 3/8 INCH STEM) SHOWN. 0901786 REPACK KIT (FOR VALVES WITH 1/4 INCH STEM) CONTAINS THREE PACKING WAFERS INSTEAD OF FOUR.

  • Page 7: Installation

    M12903 4. After installation is complete, check out product operation as provided in these instructions. Fig. 4. Typical V5013N mixing valve with constant volume through coil. IMPORTANT 1. Do not lift the valve by holding the stem. 2. Do not mount the valve with the stem pointed lower V5013N than horizontal.

  • Page 8: Checkout

    V5013N THREE-WAY THREADED GLOBE VALVE Threaded Valve Bodies PIPE SIZE EFFECTIVE LENGTH OF THREADS (IN.) IN IN. (MM) Threading on threaded bodies conform to American Standard (12.7) Taper Pipe Threads (NPT). 9/16 (14.3) 11/16 (17.5) 1-1/4 11/16 (17.5) NOTE: Installing a strainer is strongly recommended.
