Makita LS1030 Technical Information

T
ECHNICAL INFORMATION
Subject
For Models
Description
1. The slide plates will be changed from 0.3 mm (0.0012 " )
to 0.5 mm (0.002 " ) in thickness and 3.8 mm (5/32 " ) to 6.0
mm (15/64 " ) in width.
2. The rubber pins will be discontinued.
3. The slide plate installing portion of the base will be lowered. So the dimension (A) will be changed from 20.2 mm (0.795 " )
to 20.4 mm (0.803 " ). The current type base and the new type base are interchangeable.
Slide plate installing portion of base
Change on slide plate and base

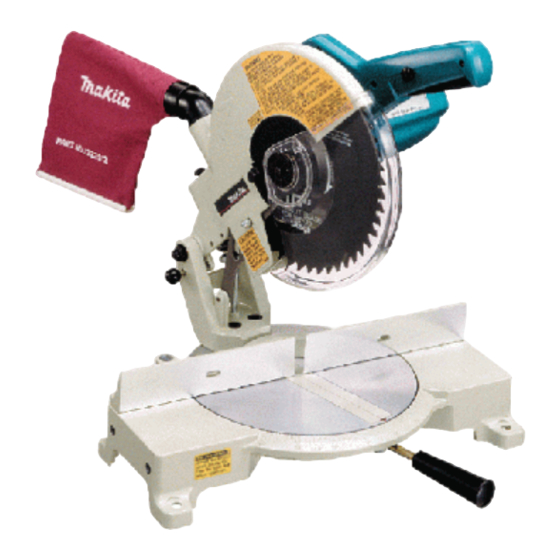

LS1030 (Miter Saw)
Rubber pin 4
Base
Dimension (A): 20.2 mm (0.795
3.8 mm (5/32
0.3 mm (0.0012
"
)
"
20.4 mm ((0.803 )
Slide plate
" "
) 6.0 mm (15/64
"
) 0.5 mm (0.002
Top surface of base
44192
)
"
)
