ECHNICAL INFORMATION
Models No.
Description
C
ONCEPTION AND MAIN APPLICATIONS

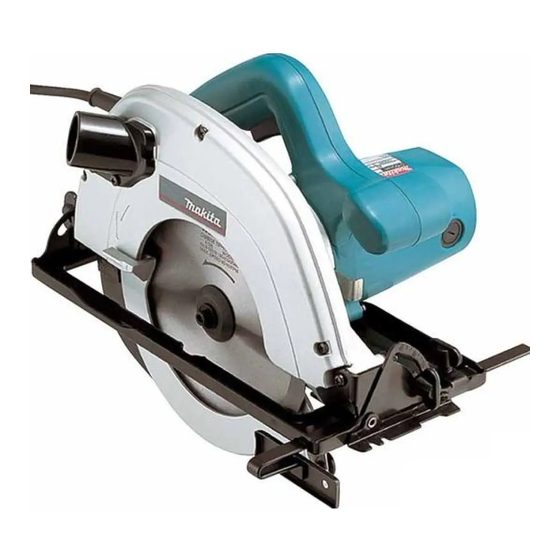

Model 5704R has been developed as the 190mm Circular Saw
with riving knife.
This easy-to- control Circular Saw also features its superiority
to competitors in Low noise, Low vibration and Cutting speed.
Save more money, and get higher performance.
Model 5704RK comes with plastic carrying case.
S
pecification
Voltage (V)
110
220
230
240
No load speed : rpm.= min.
Diameter : mm (")
Size of blade
Arbor : mm (")
Max.cutting
at 90°
capacities
at 45°
: mm (")
at 50°
Electric brake
Protection from electric shock
Net weight : Kg (lbs.)
Cord length : m (ft)
S
tandard equipment
* Carbide tipped saw blade 190mm (7-1/2) ................. 1 pc. (for China : 24T for Europe : 12T)
* Rip fence .................................................................... 1 pc.
* Hex wrench ................................................................ 1 pc.
* Joint assembly (for connecting vacuum cleaner)........ 1 pc.
* Plastic carrying case ................................................... 1 pc. (only for Model 5704RK)
< Note > The standard equipment for the tool shown may differ from country to country.
O
ptional accessories
* Various saw blades
5704R, 5704RK
Circular Saw 190mm
Dimensions : mm (")
345 (13-5/8)
Length (L-1)
328 (12-7/8)
Length (L-2)
Height (H-1)
253 (10)
Height (H-2)
181 (7-1/8)
Width (W-1)
238 (9-3/8)
Width (W-2)
150 (5-7/8)
Cycle (Hz)
Current (A)
12
50 / 60
5.3
50 / 60
5.5
50 / 60
5.3
50 / 60
-1
190 (7-1/2)
30 (1-3/16)
66 (2-5/8)
46 (1-13/16)
No
by double insulation
4.6 (10.1)
2.5 (8.2)
H-2
H-1
Continuous Rating (W)
Input
1,200
1,100
1,200
1,200
4,900
* 20 (13/16) for China
PRODUCT
L-1
L-2
Max. Output(W)
Output
740
1,400
610
1,100
740
1,400
740
1,400
P 1 / 5
W-1
W-2
