- Page 1 4/8 Series Ethernet Switch User Manual UD03706B...
- Page 2 Any and all information, including, among others, wordings, pictures, graphs are the properties of Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries (hereinafter referred to be “Hikvision”). This user manual (hereinafter referred to be “the Manual”) cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of Hikvision.
- Page 3 Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
- Page 4 Preparing for installation The HIKVISION 4/8 Series Ethernet Switch includes the following models: Model Name Ethernet Switch Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Provides additional information to emphasize or supplement important points of the main text.
-
Page 5: Table Of Contents
Table of Contents Chapter 1 4/8 Switch Overview ........................... 1 1.1 Standard Configuration ............................1 Chapter 2 Installation Preparation ..........................4 2.1 Cautions ................................4 2.2 Safety Advice ................................. 4 2.2.1 Safety Principles ..............................4 2.2.2 Safety Notices ..............................4 2.2.3 Safety Principles for Live Working ........................ -
Page 6: Chapter 1 4/8 Switch Overview

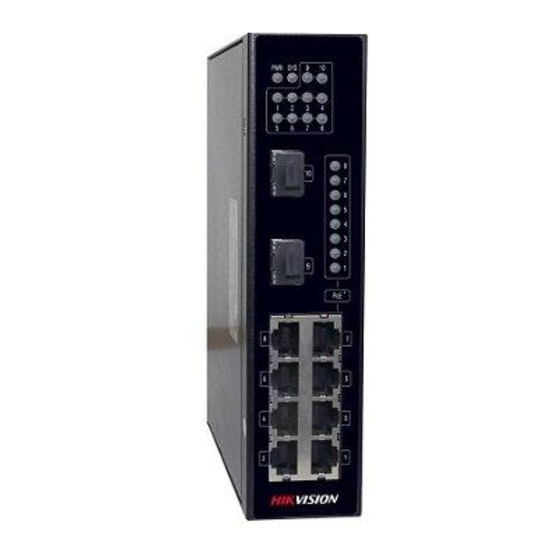

Chapter 1 4/8 Switch Overview The document describes the characteristics and parameters of 4/8 and gives an overview （Note: the access line should not exceed 10m. The input voltage is less than 50V, the of 4/8. maximum output power is less than 30W, the input voltage is more than 50V, and the maximum output power is 30W.）... - Page 7 Abbrev. Name Remarks If the switch is powered on, the indicator is power indicator If the indicator is always on, the system System indicator works normally. Realizes the forward of gigabit Ethernet 2 SFP ports optical signals. Realizes the PoE function and forwards 8 RJ45 ports 10/100M Ethernet electrical signals If the indicator is always on, the PoE works...
- Page 8 Table 1-3 Parts at the rear template of the 4/8 switch Abbrev. Name Remarks The grounding column The grounding must be fine. Press DEFAULT key for more DEFAULT than 5 seconds to restore to factory settings. DC power socket 44~57VDC - 3 -...
-
Page 9: Chapter 2 Installation Preparation
Chapter 2 Installation Preparation 2.1 Cautions Similar to other electronic products, the semiconductor chip easily gets damaged if you power on and off abruptly and frequently. To restart up the switch of 4/8 switch, you have to open the power on-off three or five seconds after the power is cut off. Avoid severe collision or falling down from the height to protect the parts in the switch. -
Page 10: Electrostatic Discharge Damage Prevention
Put off ornaments, such as ring, necklace, watch and bracelet, before you operate under live working. When metal articles connect the power to the ground, short circuit happens and components may be damaged. Please cut off the direct-current connection when you operate the hull or work near the power supply. -
Page 11: Location Configuration Prevention
2.3.2 Location Configuration Prevention The following preventive measures assist you to design the proper environment for the switch. Make sure that the workshop is well-ventilated, the heat of TX devices is well-discharged and sufficient air circulation is provided for device cooling. ... -
Page 12: Chapter 3 Installing The 4/8 Switch
Chapter 3 Installing the 4/8 Switch Caution: Only professionals are allowed to install or replace the devices of the switch. 3.1 installation equipment The switch adopts the way of clamping rail installation. Please select the most suitable installation location according to the specific installation environment 3.2 Track installation The switch supports card rail installation, and the specific installation steps are as follows: ... -
Page 13: Connection Protected Ground Line
Figure 3-2 track installation diagram 3.3 connection protected ground line Connecting the ground wire is not only to release the overvoltage and overcurrent caused by lightning stroke as soon as possible, but also a necessary measure to ensure personal safety. The side panel of the industrial switchboard provides a grounding bolt, which is an important guarantee for the equipment to prevent thunder and prevent interference, so the user must be grounded correctly. -
Page 14: Connecting The Sfp Ports
Figure 3-3 track Equipment grounding Figure 3-4 track Ground completion schematic 3.4 Connecting the SFP Ports 4/8 switch provides 2 gigabit SFP optical ports. Each port corresponds to one indicator respectively, which is used for indicating the port Link/ACT state. When the indicator is always on, the link is normal;... -
Page 15: Connecting 100M Ethernet Base-T Ports
3.4.1 Connecting 100M Ethernet Base-T Ports The 4/8 switch has 4/8 10/100Base-TX ports. Each port has one indicator, which indicates the state of Link/ACT. If the indicator is always on, the port is linked up; if the indicator flickers, the data is transmitted on the port. The numbering order of the pins in the UTP port is the same as the console port. -
Page 16: Checkup After Installation
Pin name Symbol Note Sending the normal phase of the data TXD1+ Output Sending the paraphase of the data TXD1- Output Receiving the normal phase of the RXD1+ Input data Sending the normal phase of the data TXD2+ Output Sending the paraphase of the data TXD2- Output Receiving the paraphase of the data... -
Page 17: Chapter 4 Specifications
Chapter 4 Specifications DS-3T0306P DS-3T0310P Item 8.8Gbps 8.8Gbps Backplane 3.6Mpps 4.2Mpps Forwarding rate 4 100M Base-T ports+2 1000Base-X ports 8 100M Base-T ports+2 1000Base-X ports Ports 155x130x42 170x156x42 Dimensions(W×D×H)(mm) <9W <9W Consumption Support Support POE/POE+ Power supply DC：44～57VDC Operating temperature/humidity: -40℃-75℃，5%-95% non-condensing Environment Storage temperature/humidity: -40℃-85℃；5%-95% non-condensing IP40... - Page 18 - 13 -...
