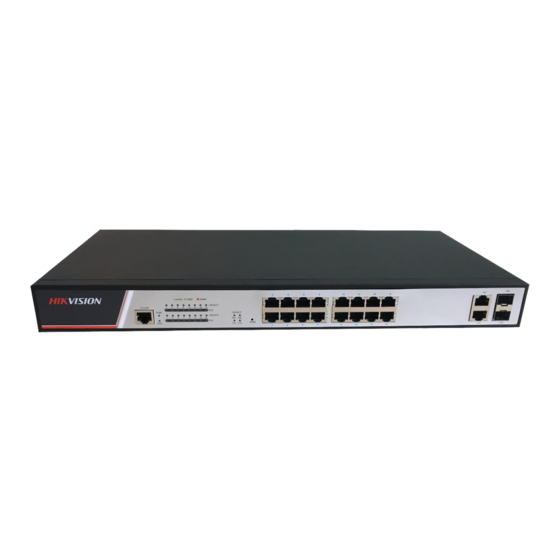

DS-3E2300P Series Ethernet Switch
WEB Configuration
User Manual
UD03706B
I

Advertisement

Table of Contents
loading

Related Manuals for HIKVISION DS-3E2300P Series

Summary of Contents for HIKVISION DS-3E2300P Series

  • Page 1 DS-3E2300P Series Ethernet Switch WEB Configuration User Manual UD03706B...
  • Page 2 SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS THE APPLICABLE LAW. HIKVISION SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES.
  • Page 3 WEB Configuration of DS-3E2300P Series Ethernet Switch [选取日期] Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.

  • Page 4: Table Of Contents

    WEB Configuration of DS-3E2300P Series Ethernet Switch [选取日期] Table of Contents Chapter 1 Configuration Preparation .............. 1 1.1 HTTP Configuration ................1 1.1.1 Choosing the Prompt Language ..........1 1.1.2 Setting the HTTP Port ..............1 1.1.3 Enabling the HTTP service ............1 1.1.4 Setting the HTTP Access Mode ............
  • Page 5 WEB Configuration of DS-3E2300P Series Ethernet Switch [选取日期] 4.6.2 MAC Binding Configuration ............13 4.6.3 Setting the Static MAC Filtration Mode ........13 4.6.4 Static MAC Filtration Entries ............. 13 4.6.5 Setting the Dynamic MAC Filtration Mode ......13 4.7 Storm Control ..................14 4.7.1 Broadcast storm control ..............
  • Page 6 WEB Configuration of DS-3E2300P Series Ethernet Switch [选取日期] 5.7 LLDP Configuration ................24 5.7.1 Configuring the Global Attributes of LLDP ......24 5.7.2 Configuring the Attributes of the LLDP Port ......24 5.8 DDM Configuration ................25 5.9 Link Aggregation Configuration ............25 5.9.1 Port Aggregation Configuration ..........
  • Page 7 WEB Configuration of DS-3E2300P Series Ethernet Switch [选取日期] 8.1 SNMP Configuration ................39 8.1.1 SNMP Community Management ..........39 8.1.2 SNMP Host Management ............39 8.2 RMON ...................... 40 8.2.1 RMON Statistic Information Configuration ......40 8.2.2 RMON History Information Configuration ......40 8.2.3 RMON Alarm Information Configuration .......

  • Page 8: Chapter 1 Configuration Preparation

    WEB Configuration of DS-3E2300P Series Ethernet SwitchEW [选取日期] Chapter 1 Configuration Preparation 1.1 HTTP Configuration Switch configuration can be conducted not only through command lines and SNMP but also through Web browser. The switches support the HTTP configuration, the abnormal packet timeout configuration, and so on.

  • Page 9: Setting The Http Access Mode

    WEB Configuration of DS-3E2300P Series Ethernet SwitchEW [选取日期] 1.1.4 Setting the HTTP Access Mode You can access a switch through two access modes: HTTP access and HTTPS access, and you can use the following command to set the access mode to HTTP.

  • Page 10: Setting The Https Port

    WEB Configuration of DS-3E2300P Series Ethernet SwitchEW [选取日期] ip http ssl-access enable Setting the HTTPS access mode 1.2.2 Setting the HTTPS Port As the HTTP port, HTTPS has its default service port, port 443, and you also can run the following command to change its service port.

  • Page 11: Chapter 2 Accessing The Switch Through Http

    WEB Configuration of DS-3E2300P Series Ethernet SwitchEW [选取日期] Chapter 2 Accessing the Switch through HTTP 2.1 Accessing the Switch through HTTP When accessing the switch through Web, please make sure that the applied browser complies with the following requirements: HTML of version 4.0 HTTP of version 1.1...

  • Page 12: Upgrading To The Web-Supported Version

    WEB Configuration of DS-3E2300P Series Ethernet SwitchEW [选取日期] 2.1.2 Upgrading to the Web-Supported Version If your switch is upgraded to the Web-supported version during its operation and the switch has already stored its configuration files, the Web visit cannot be directly applied on the switch.

  • Page 13: Introduction Of Web Interface

    WEB Configuration of DS-3E2300P Series Ethernet SwitchEW [选取日期] Step 8 Enter the command write", to save the current configuration to the configuration file. Step 9 Open the WEB browser on the PC that the switch connects, enterhttps://192.168.0.1on the address bar (192.168.0.1 stands for the management IP address of the switch)IP address of the switch) and then press the Enter key.

  • Page 14: Navigation Bar

    WEB Configuration of DS-3E2300P Series Ethernet SwitchEW [选取日期] 2.3.2 Navigation Bar The contents shown in the navigation bar. The contents in the navigation bar are shown in a form of list and are classified according to types. By default, the list is located at “Runtime Info”.

  • Page 15: Configuration Area

    WEB Configuration of DS-3E2300P Series Ethernet SwitchEW [选取日期] 2.3.3 Configuration Area The configuration display area shows the state and configuration of the device. The contents of this area can be modified by the clicking of the items in the navigation bar.

  • Page 16: Chapter 3 Basic Configuration

    WEB Configuration of DS-3E2300P Series Ethernet SwitchEW [选取日期] Chapter 3 Basic Configuration 3.1 Hostname Configuration Click Basic Config -> Hostname in the navigation bar, the Hostname Configuration page appears, as shown in the following figure. The hostname will be displayed in the login dialog box.
  • Page 17 WEB Configuration of DS-3E2300P Series Ethernet SwitchEW [选取日期] you select “Network Time Synchronization”, you can designate 3 SNTP servers for the device and set the interval of time synchronization.

  • Page 18: Chapter 4 Configuration Of The Physical Interface

    WEB Configuration of DS-3E2300P Series Ethernet SwitchEW [选取日期] Chapter 4 Configuration of the Physical Interface 4.1 Configuring Port Description Click Port Config -> Port Description in the navigation bar, the Port description Configuration page appears, as shown in the following figure.

  • Page 19: Port Mirror

    WEB Configuration of DS-3E2300P Series Ethernet SwitchEW [选取日期] 4.4 Port Mirror Click Port Config-> Port Mirror in the navigation bar, the Port Mirror Config page appears, as shown in the following figure. Click the dropdown list on the right side of "Mirror Port" and select a port to be the destination port of mirror.

  • Page 20: Mac Binding Configuration

    WEB Configuration of DS-3E2300P Series Ethernet SwitchEW [选取日期] 4.6.2 MAC Binding Configuration Click Port Config-> Port Security -> MAC Bind in the navigation bar, the Configure the MAC-Binding Info page appears, as shown in the following figure. Click “Detail” and then you can conduct the binding of the source MAC address for each physical port.

  • Page 21: Storm Control

    WEB Configuration of DS-3E2300P Series Ethernet SwitchEW [选取日期] You can set the dynamic MAC filtration mode and the allowable maximum number of addresses on this page. By default, the dynamic MAC filtration mode is disabled and the maximum number of addresses is 1.

  • Page 22: Port Protect Group List

    WEB Configuration of DS-3E2300P Series Ethernet SwitchEW [选取日期] 4.8.1 Port Protect Group List Click Port Config-> Port Protect Group Config -> Port Protect Group List in the navigation bar, the Port Protect Group List page appears. If you click New, a new port protect group will be created, as shown in the following figure.

  • Page 23: Poe Global Realtime Info

    WEB Configuration of DS-3E2300P Series Ethernet SwitchEW [选取日期] On this page, you can configure the POE power supply management mode, lower priority upgrade preemption threshold, enable/disable POE MIB inform. 4.9.2 POE Global Realtime Info Click Port Config -> POE Mgr->POE Global Realtime Info in the navigation bar, the POE management configuration page appears, as shown in the following figure.

  • Page 24: Poe Port Policy Power

    WEB Configuration of DS-3E2300P Series Ethernet SwitchEW [选取日期] 4.9.4 POE Port Policy Power Click Port Config -> POE Mgr->POE Port Policy Power in the navigation bar, the POE Port Policy Power configuration page appears, as shown in the following figure.

  • Page 25: Chapter 5 Layer-2 Configuration

    WEB Configuration of DS-3E2300P Series Ethernet SwitchEW [选取日期] Chapter 5 Layer-2 Configuration 5.1 VLAN Configuration 5.1.1 VLAN List Click Layer-2 Config -> VLAN Config in the navigation bar, the VLAN Config page appears, as shown in the following figure. The VLAN list will display VLAN items that exist in the current device according to the ascending order.

  • Page 26: Gvrp Configuration

    WEB Configuration of DS-3E2300P Series Ethernet SwitchEW [选取日期] Through the port list, you can set for each port the default VLAN , the VLAN mode (Trunk or Access), whether to allow the entrance of current VLAN packets and whether to execute the untagging of the current VLAN when the port works as the egress port.

  • Page 27: Configuring The Attributes Of The Stp Port

    WEB Configuration of DS-3E2300P Series Ethernet SwitchEW [选取日期] The root STP configuration information and the STP port’s status are only-read. Click the dropdown box on the right side of “Protocol” to change the currently running STP mode. The supported modes include STP, RSTP and Disabled STP.

  • Page 28: Igmp-Snooping Vlan List

    WEB Configuration of DS-3E2300P Series Ethernet SwitchEW [选取日期] On this page you can set whether to make a switch to forward unknown multicasts, whether to enable IGMP snooping, and whether to configure the switch as the querier of IGMP. 5.4.2 IGMP-Snooping VLAN List In the navigation bar, click L2 Config ->...

  • Page 29: Static Multicast Address

    WEB Configuration of DS-3E2300P Series Ethernet SwitchEW [选取日期] 5.4.3 Static Multicast Address Click L2 Config -> IGMP Snooping > Static Multicast Address List in the navigation bar, and enter static multicast address configuration page. This page displays the static multicast group in current network according to IGMP-Snooping statistics and the port set each member belongs to.

  • Page 30: Static Mac Configuration

    WEB Configuration of DS-3E2300P Series Ethernet SwitchEW [选取日期] Step 2 Click “New” to add ARP entry. The VLAN interface needs to be assigned when configuring the ARP entry. Step 3 Click “Modify” to modify the current ARP entry. Step 4 Click “Delete” to delete the selected ARP entry.

  • Page 31: Lldp Configuration

    WEB Configuration of DS-3E2300P Series Ethernet SwitchEW [选取日期] 5.7 LLDP Configuration 5.7.1 Configuring the Global Attributes of LLDP If you click Layer-2 Config -> LLDP Config in the navigation bar, the Global LLDP Config page appears, as shown in the following.

  • Page 32: Ddm Configuration

    WEB Configuration of DS-3E2300P Series Ethernet SwitchEW [选取日期] LLDP interface configuration can enable or disable the port transmitting LLDP packets. 5.8 DDM Configuration Click L2 Config > DDM Config in the navigation bar, and enter DDM configuration page. 5.9 Link Aggregation Configuration 5.9.1 Port Aggregation Configuration...

  • Page 33: Configuring Load Balance Of Port Aggregation Group

    WEB Configuration of DS-3E2300P Series Ethernet SwitchEW [选取日期] An aggregation group is selectable when it is created but is not selectable when it is modified. When a member port exists on the aggregation port, you can choose the aggregation mode to be Static, LACP Active or LACP Passive.

  • Page 34: Eaps Ring Configuration

    WEB Configuration of DS-3E2300P Series Ethernet SwitchEW [选取日期]  1. The system can support 8 EAPS rings.  2. After a ring is configured, its port, node type and control Vlan cannot be modified. If the port of the ring, the node type or the control Vlan need be adjusted, please delete the ring and then establish a new one.

  • Page 35: Meaps Configuration

    WEB Configuration of DS-3E2300P Series Ethernet SwitchEW [选取日期] 5.11 MEAPS Configuration 5.11.1 MEAPS Ring Configuration Step 1 Click Layer-2 Config -> Multiple Ring Protection -> Multiple Ring Protection on the navigation bar, the Multiple Ring Protection Configuration page appears. The list shows the current configured MEAPS ring, including Domain ID, Ring ID, Ring type, Node type, Control Vlan, Hello Time, Failed Time, Pre Forward Time, primary port and secondary port.

  • Page 36: Backup Link Protocol Configuration

    WEB Configuration of DS-3E2300P Series Ethernet SwitchEW [选取日期] In an existed MEAPS ring, its domain ID, ring ID, ring type, node type and control Vlan cannot be modified. The primary ring can only be configured with the main node and the Transit node.

  • Page 37: Backup Link Protocol Interface Configuration

    WEB Configuration of DS-3E2300P Series Ethernet SwitchEW [选取日期]  The system supports 8 link backup groups.  The Preemption mode determines the policy the primary port and the backup port forward packets. 5.12.2 Backup Link Protocol Interface Configuration Step 1 Click Layer-2 Config -> Backup Link Protocol Config -> Backup Link Protocol Interface Config on the navigation bar, the Backup Link Protocol Global Config page appears.

  • Page 38: Pdp Configuration

    WEB Configuration of DS-3E2300P Series Ethernet SwitchEW [选取日期] You can set the size of the maximum transmission unit (MTU). 5.14 PDP Configuration 5.14.1 Configuring the Global Attributes of PDP Click Layer-2 Config -> PDP Config in the navigation bar, the Global PDP Config page appears, as shown in the following figure.

  • Page 39: Chapter 6 Layer-3 Configuration

    WEB Configuration of DS-3E2300P Series Ethernet SwitchEW [选取日期] Chapter 6 Layer-3 Configuration 6.1 Vlan interface configuration Click L3 Config -> VLAN Interfaces and IP Addresses, and enter the VLAN interface configuration page. Click New to add a new VLAN interface. Click Cancel to delete a VLAN interface. Click Modify to modify the settings of a corresponding VLAN interface.
  • Page 40 WEB Configuration of DS-3E2300P Series Ethernet SwitchEW [选取日期] Click Create to add a static route. If you click Edit, you can modify the current static route. If you click Cancel, you can cancel the chosen static route.

  • Page 41: Chapter 7 Advanced Configuration

    WEB Configuration of DS-3E2300P Series Ethernet SwitchEW [选取日期] Chapter 7 Advanced Configuration 7.1 QoS Configuration 7.1.1 Configuring QoS Port Click Advanced Config -> QoS -> Configure QoS Port, the Port Priority Config page appears. You can set the CoS value by clicking the dropdown box on the right of each port and selecting a value.

  • Page 42: Ip Access Control List

    WEB Configuration of DS-3E2300P Series Ethernet SwitchEW [选取日期] 7.2 IP Access Control List 7.2.1 Setting the Name of the IP Access Control List Click Advanced Config -> IP Access Control List -> IP Access Control List Config, the IP ACL configuration page appears.

  • Page 43: Applying The Ip Access Control List

    WEB Configuration of DS-3E2300P Series Ethernet SwitchEW [选取日期] Click New to add a rule of the IP access control list. Click Cancel to delete a rule of the IP access control list. If you click Modify, the corresponding IP access control list appears and you can set the corresponding rules for the IP access control list.

  • Page 44: Mac Access Control List

    WEB Configuration of DS-3E2300P Series Ethernet SwitchEW [选取日期] 7.3 MAC Access Control List 7.3.1 Setting the Name of the IP Access Control List Click Advanced Config -> MAC Access Control List -> MAC Access Control List Config, the MAC ACL configuration page appears.

  • Page 45: Applying The Mac Access Control List

    WEB Configuration of DS-3E2300P Series Ethernet SwitchEW [选取日期] 7.3.3 Applying the MAC Access Control List Click Advanced Config -> MAC Access Control List -> Applying The MAC Access Control List, the Applying the MAC access control list page appears.

  • Page 46: Chapter 8 Network Management Configuration

    WEB Configuration of DS-3E2300P Series Ethernet SwitchEW [选取日期] Chapter 8 Network Management Configuration 8.1 SNMP Configuration Click Network Management Config -> SNMP Management in the navigation bar, the SNMP management page appears, as shown in the figure. 8.1.1 SNMP Community Management On the SNMP community management page, you can know the related configuration information about SNMP community.

  • Page 47: Rmon

    WEB Configuration of DS-3E2300P Series Ethernet SwitchEW [选取日期] You can create, modify or cancel the SNMP host information, and if you click New or Edit, you can switch to the configuration page of SNMP host. On the SNMP host configuration page, you can enter SNMP Host IP, SNMP Community, SNMP Message Type and SNMP Community Version.

  • Page 48: Rmon Alarm Information Configuration

    WEB Configuration of DS-3E2300P Series Ethernet SwitchEW [选取日期] You need to set a physical port to be the reception terminal of the monitor data. The index is used to identify a specific interface; if the index is same to that of the previous application interface, it will replace that of the previous application interface.

  • Page 49: Rmon Event Configuration

    WEB Configuration of DS-3E2300P Series Ethernet SwitchEW [选取日期] If the alarm type is absolute, the value of the MIB object will be directly minitored; if the alarm type is delta, the change of the value of the MIB object in two sampling will be monitored.

  • Page 50: Chapter 9 Diagnosis Tools

    WEB Configuration of DS-3E2300P Series Ethernet SwitchEW [选取日期] Chapter 9 Diagnosis Tools Click Diagnosis Tools -> Ping, the Ping page appears. Ping is used to test whether the switch connects other devices. If a Ping test need be conducted, please enter an IP address in the “Destination address”...

  • Page 51: Chapter 10 System Management

    WEB Configuration of DS-3E2300P Series Ethernet SwitchEW [选取日期] Chapter 10 System Management 10.1 User Management 10.1.1 User List Click System Mgr.-> User Mgr., the User Management page appears. You can click “New” to create a new user. To modify the permission or the login password, click “Edit” on the right of the user list.

  • Page 52: User Group Management

    WEB Configuration of DS-3E2300P Series Ethernet SwitchEW [选取日期] Step 2 In the “User name” text box, enter a name, which contains letters, numbers and symbols except “?”, “\”, “&”, “#” and the "Space" symbol. Step 3 In the “Password” textbox enter a login password, and in the “Confirming password”...

  • Page 53: Password Rule Management

    WEB Configuration of DS-3E2300P Series Ethernet SwitchEW [选取日期] 10.1.4 Password Rule Management Click password rule management Tab page to enter password rule management page. Click “create new” to create new password rule. Click “delete” to delete password rule. Set some password rules including whether the password can be the same with the user name, whether the password must contain numbers, lowercase, uppercase, special characters, the minimum length and the period of validity.

  • Page 54: Authorization Rule Management

    WEB Configuration of DS-3E2300P Series Ethernet SwitchEW [选取日期] You can configure the maximum number of attempts and periods or you don’t, but you must configure them simultaneously or neither. 10.1.6 Authorization Rule Management Click the Tab page of authorization rule and enter the authorization rule management page.

  • Page 55: Managing The Configuration Files

    WEB Configuration of DS-3E2300P Series Ethernet SwitchEW [选取日期] If “Enabling the log server” is selected, the device will transmit the log information to the designated server. In this case, you need enter the address of the server in the “Address of the system log server”...

  • Page 56: Importing The Configuration Information

    WEB Configuration of DS-3E2300P Series Ethernet SwitchEW [选取日期] 10.3.2 Importing the Configuration Information You can import the configuration files from PC to the device and replace the configuration file that is currently being used. For example, by importing the backup configuration files, you can resume the device to its configuration of a previous moment.

  • Page 57: Update System Software

    WEB Configuration of DS-3E2300P Series Ethernet SwitchEW [选取日期] Default name of the system profile is “Switch.bin”. You are suggested to change the default name to a name that easy to identify. 10.4.2 Update System Software  Please ensure your update system profile match with the device type. Otherwise, the system cannot operate normally.
  • Page 58 WEB Configuration of DS-3E2300P Series Ethernet SwitchEW [选取日期] If the device need be rebooted, please first make sure that the modified configuration of the device has already been saved, and then click the “Reboot” button.
  • Page 59 WEB Configuration of DS-3E2300P Series Ethernet SwitchEW [选取日期]...
