PSP Repair and Parts

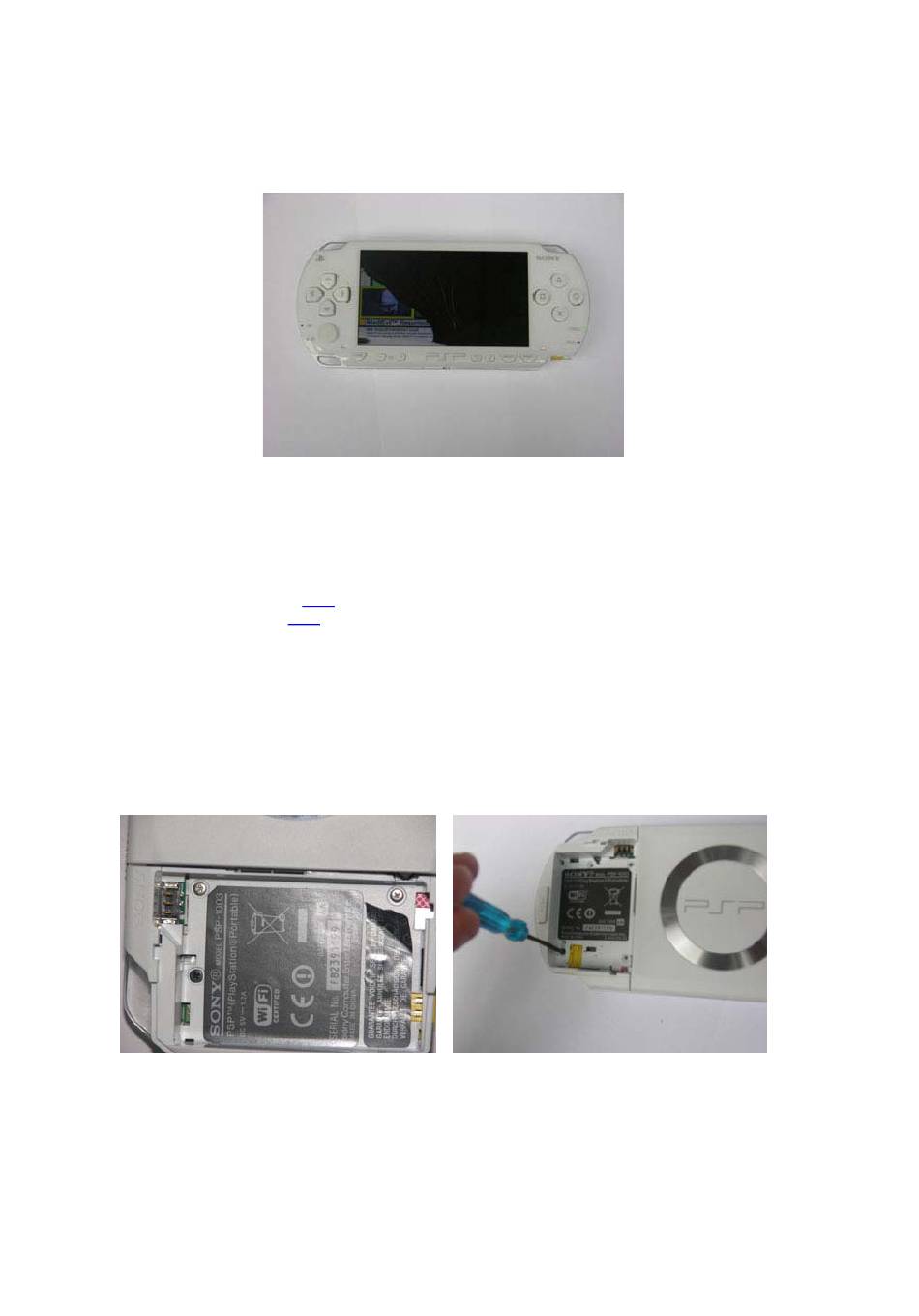

PlayStation Portable Screen Replacement Guide.

Introduction

This guide aims to provide you with assistance and tips for replacing a broken screen on a Sony PSP (PlayStation

Portable).

A broken screen is a major problem for PSP users and renders the console useless until you are able to replace the

screen. This repair is relatively straightforward and requires patience and careful handling.

Required Tools

A Mini Crosshead Screwdriver (available

here

in the PSP Parts section of the website)

A Replacement PSP Screen (available

here

in the PSP Parts section of the website)

An air duster / can of compressed air (not essential)

Stage One: Front Case Removal

The PSP is relatively straight forward to take apart, having seven screws holding the consoles casing together.

Start by removing the visible screws on the right hand side near the headphone jack then move to the left hand side where

there are four screws to take out. Two of these are visible, with the other two hidden underneath the "guarantee void"

sticker, which you are going to have to peel away to access the screws.

Finally, remove the screw at the base of the console next to the barcode sticker. The front case will just lift off allowing you

to access the inside of the PSP.

Page 1: Required Tools
PlayStation Portable Screen Replacement Guide. Introduction This guide aims to provide you with assistance and tips for replacing a broken screen on a Sony PSP (PlayStation Portable). A broken screen is a major problem for PSP users and renders the console useless until you are able to replace the screen.
Page 2 Stage Two: Accessing the Screen The Screen is protected by the lower button circuit which has to be removed in order to access the screen below. Start by un-hooking the circuit from the connector on the action button circuit board, this is a delicate operation as the latch is fragile and can snap easily.
Page 3 Stage Four: Re-assembling the PSP This step is quite simple, using the expertise that you have gained from removing the screen, attach the new screen to the connectors on the main board, snapping it into place on the frame. Next reattach the lower button circuit to its connector and clip the metal back onto the frame.
