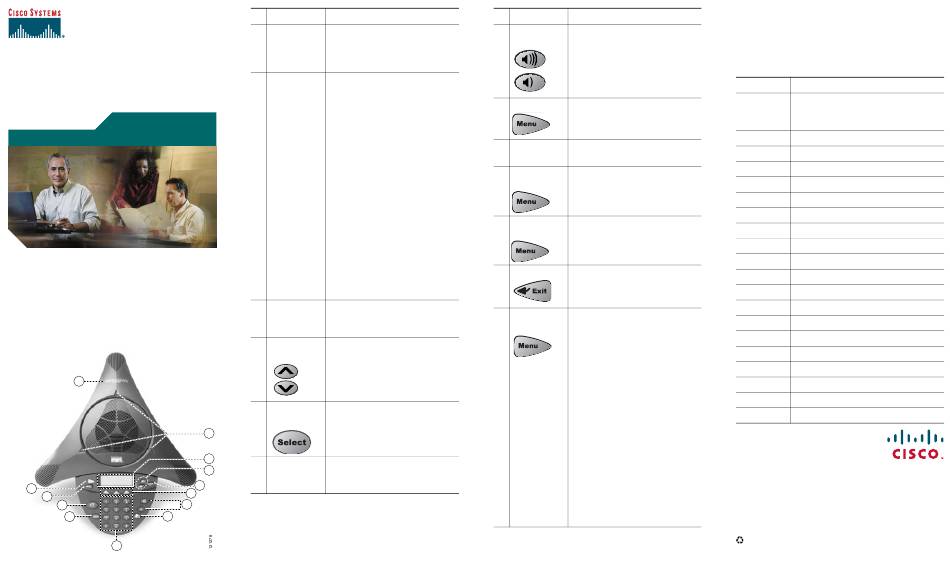

Cisco Unified IP Conference Station 7936 Quick Reference Instructions

Quick Reference
Cisco Unified IP Conference
Station 7936 for
Cisco CallManager Express 3.2
and Later
1
5
13
6
12
7
11
10 8
9
Feature Function
1 Cisco Shows the Cisco Unified IP
Unified IP phone model number.
phone
model type
2 LEDs Provide call status indicators:
• Call State Off: LEDs all off
• Powering On: LEDs all red
• Dial Tone On: LEDs all
green
• Dialing: LEDs all green
and blinking
• Connected: LEDs all green
• Mute: LEDs all red and
blinking
• Hold: LEDs all red
• Incoming Call: LEDs all
green and blinking with
ring
• Ringing/Connecting:
LEDs all green and
blinking
3 LCD screen Displays information such as
line/call status, phone number,
and soft key tabs.
4 Scroll Allow you to scroll through
buttons the menus or through an open
list in the LCD screen.
5 Select Selects the menu option or list
button item that is highlighted.
2
3
6 Soft keys Engage the functions displayed
4
on the corresponding LCD
tabs.
Feature Function
7 Volume Increase or decrease the
buttons volume of the call, speaker,
ringer, or dial tone, depending
on which sound is currently
active.
8 Mute button Toggles muting on and off.
9 Keypad Functions like a traditional
telephone keypad.
10 Redial Automatically redials the last
button number dialed.
11 Phone Allows you to get a dial tone,
button answer an incoming call, and
hang up a call.
12 Exit button Returns to the main LCD
screen from a menu, a list, or
the Phone Book.
13 Menu Opens and closes the main
button menu on the Cisco Unified IP
Conference Station. The main
menu includes the following
selections:
• Call Functions: opens the
call function options,
including Meet-me,
Call-park, Pick-up, Group
Pick-up, and Transfer.
• Phone Book: opens the
Phone Book.
• Settings: opens the Settings
options, including
Contrast and Ringer.
• Admin Setup: opens
Admin Setup (requires
administrator password).
Soft Key Legend
The following is a comprehensive list of soft keys
offered on the Cisco Unified IP Phone 7936
Conference Station. Functionality will vary
depending on your system configuration.
Soft Key Function
<< or >> Navigates to edit characters. Use
the backspace soft key to erase
digits that were entered incorrectly.
- or + Increases or decreases the contrast.
Answer Answers the incoming call.
Call Dials the selected phone number.
Cancel Cancels the last selection.
CFwdALL Forwards all calls.
Change Changes a Phone Book entry.
Clr Entry Clears a Phone Book entry.
Conf Adds a party to a conference call.
Corp Dir Displays the local directory.
Dial Calls the number in the directory.
EndCall Ends the current call.
Hold Puts the active call on hold.
NewEntry Adds an entry to the Phone Book.
Ph Book Displays the Phone Book.
Resume Returns to the original call.
Save Saves your entry.
Search Starts the search in the directory.
Transfer Transfers the current call.
View/Edit Enables view and edit capabilities.
