Honeywell S05 Series Product Data

Honeywell S05 Series Product Data

Spring return direct coupled actuators ms4105, ms4110, ms4120, ms71xx, ms7505, ms7510, ms7520, ms8105, ms8110, ms8120
Hide thumbs Also See for S05 Series:

Advertisement

Quick Links

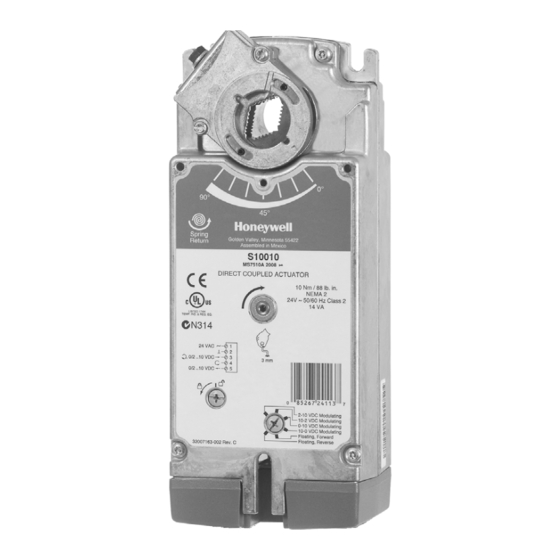

S05, S10, S20 Series
Spring Return Direct Coupled Actuators
MS4105, MS4110, MS4120, MS71XX, MS7505, MS7510, MS7520,
MS8105, MS8110, MS8120

APPLICATION

MS41XX, MS71XX, MS75XX, MS81XX Spring Return Direct
Coupled Actuators (DCA) are used within heating, ventilating,
and air-conditioning (HVAC) systems. They can drive a variety
of quarter-turn, final control elements requiring spring return
fail-safe operation.
Applications include:
• Volume control dampers, mounted directly to the drive
shaft or remotely (with the use of accessory hardware).
• Quarter-turn rotary valves, such as ball or butterfly valves
mounted directly to the drive shaft.
• Linear stroke globe or cage valves mounted with linkages
to provide linear actuation.

FEATURES

• Brushless DC submotor with electronic stall protection
for floating/modulating models.
• Brush DC submotor with electronic stall protection for
2-position models.
• Self-centering shaft adapter (shaft coupling) for wide
range of shaft sizes.
• Models available with three torque ratings:
44 lb-in. (5 N•m), 88 lb-in. (10 N•m),
and 175 lb-in. (20 N•m).
• Models available for use with two-position, single pole
single throw (spst), line- (Series 40) or low- (Series 80)
voltage controls.
• Models available for use with floating or switched
single-pole, double-throw (spdt) (Series 60) controls.
• Models available for use with proportional current or
voltage (Series 70) controls.
• Models available with combined floating/modulating
control in a single device.
• Models available with adjustable zero and span.
• Models available with line-voltage internal end
switches.
• Access cover to facilitate connectivity.
• Metal housing with built-in mechanical end limits.
• Spring return direction field-selectable.
• Shaft position indicator and scale.
• Manual winding capability with locking function.
• UL (cUL) listed and CE compliant.
• All Models are plenum-rated per UL873.
Application .......................................................................
Features ...........................................................................
Specifications ...................................................................
Ordering Information ........................................................
Installation ........................................................................
Wiring ...............................................................................
Operation ......................................................................... 13
Checkout .......................................................................... 14
PRODUCT DATA
Contents
1
1
2
2
4
8
63-2607-08

Advertisement

loading

Related Manuals for Honeywell S05 Series

Summary of Contents for Honeywell S05 Series

  • Page 1: Table Of Contents

    S05, S10, S20 Series Spring Return Direct Coupled Actuators MS4105, MS4110, MS4120, MS71XX, MS7505, MS7510, MS7520, MS8105, MS8110, MS8120 PRODUCT DATA FEATURES • Brushless DC submotor with electronic stall protection for floating/modulating models. • Brush DC submotor with electronic stall protection for 2-position models.

  • Page 2: Specifications

    If you have additional questions, need further information, or would like to comment on our products or services, please write or phone: 1. Your local Honeywell Automation and Control Products Sales Office (check white pages of your phone directory). 2. Honeywell Customer Care...
  • Page 3 S05, S10, S20 SERIES SPRING RETURN DIRECT COUPLED ACTUATORS Design Life (at Rated Voltage):** Table 2. O.S. Number Selection (see Table 3 also). Two-position models: 50,000 full stroke cycles; 50,000 full stroke spring returns. M Electrical Motor Floating and Modulating models: 60,000 full stroke cycles; S Fail Safe Function (Spring Return) 1,500,000 repositions;...

  • Page 4: Installation

    S05, S10, S20 SERIES SPRING RETURN DIRECT COUPLED ACTUATORS Sizing NOTES: — When mounted correctly, these slots allow the actuator to float without rotating relative to the Required Torque damper shaft. In lieu of data from a Specification Engineer or Manufacturer, —...
  • Page 5 S05, S10, S20 SERIES SPRING RETURN DIRECT COUPLED ACTUATORS If the coupling must be moved from one side of the actuator to — Enhanced: includes different mode selection dial to select the reverse, follow these instructions (see Fig. 3): the desired input signal. Also includes dials for adjusting the 1.
  • Page 6 S05, S10, S20 SERIES SPRING RETURN DIRECT COUPLED ACTUATORS NOTE: The shaft coupling location determines the 1. Rotate actuator control signal dial to Auto-Adapt. travel span. NOTE: The actuator will drive open, then closed to EXAMPLE:Setting shaft coupling to an approximate establish the new open and closed positions.
  • Page 7 S05, S10, S20 SERIES SPRING RETURN DIRECT COUPLED ACTUATORS Mounting CAUTION Device Malfunction Hazard. Improper shaft coupling tightening causes device malfunction. Tighten shaft coupling with proper torque to prevent damper shaft slippage. DAMPER SHAFT M21007 CAUTION Fig. 7. Proper mounting to square damper shaft. Actuator Damage Hazard.

  • Page 8: Wiring

    S05, S10, S20 SERIES SPRING RETURN DIRECT COUPLED ACTUATORS WIRING CAUTION Electrical Shock or Equipment Damage Hazard. Disconnect all power supplies before installation. Motors with auxiliary switches can have more than one disconnect. IMPORTANT All wiring must comply with local electrical codes, ordinances and regulations.
  • Page 9 S05, S10, S20 SERIES SPRING RETURN DIRECT COUPLED ACTUATORS Sxx120-2POS, Sxx230-2POS Models ACTUATOR 7° 85° SPST S2 S3 ACTUATOR LINE VOLTAGE POWER SUPPLY. PROVIDE DISCONNECT MEANS AND OVERLOAD PROTECTION AS REQUIRED. 1 POWER SUPPLY. PROVIDE DISCONNECT MEANS AND OVERLOAD ENSURE PROPER GROUNDING OF ACTUATOR CASE. PROTECTION AS REQUIRED.
  • Page 10 S05, S10, S20 SERIES SPRING RETURN DIRECT COUPLED ACTUATORS ACTUATOR ACTUATOR 24 VAC 24 VAC SPST OR + OR + 4 TO 20 mA 490 TO 510 OR N/A PROPORTIONING OR N/A OHMS, CONTROLLER 1/2 W FEEDBACK FEEDBACK MINIMUM – 2-10 VDC 2-10 VDC 10-2 VDC...
  • Page 11 S05, S10, S20 SERIES SPRING RETURN DIRECT COUPLED ACTUATORS ACTUATOR 24 VAC 24 VAC ACTUATOR 24 VAC OR + 0/2 TO 10 VDC PROPORTIONING OR N/A CONTROLLER CONTROLLER OR + FEEDBACK OR N/A – 2-10 VDC FEEDBACK 10-2 VDC 0-10 VDC 2-10 VDC FEEDBACK 10-0 VDC...
  • Page 12 S05, S10, S20 SERIES SPRING RETURN DIRECT COUPLED ACTUATORS 24 VAC ACTUATOR 24 VAC OR + 0/2 TO 10 VDC OR N/A PROPORTIONING FEEDBACK CONTROLLER 2-10 VDC 10-2 VDC 0-10 VDC 10-0 VDC Fltg, fwd – Fltg, rev ACTUATOR 24 VAC OR + OR N/A FEEDBACK...

  • Page 13: Operation

    S05, S10, S20 SERIES SPRING RETURN DIRECT COUPLED ACTUATORS OPERATION ACTUATOR The actuator is designed to be used in ventilating and air 24 VAC conditioning installations to operate valves, dampers, ventilation flaps and louvers requiring torque up to the rating. OR + (For ratings, see the Specifications section.) If the power fails, 0/2 TO 10 VDC...

  • Page 14: Checkout

    CHECKOUT c. Floating: apply 24 Vac to appropriate CW (3) or CCW (4) terminal. 5. Allow the actuator to drive to 50% position. Modulating/Floating Operation 6. Disconnect wire from terminal 1. 7. Actuator spring returns to 0% position. 1. Mount actuator for required application (either clock- 8.
  • Page 15 63-2607—08...
  • Page 16 S05, S10, S20 SERIES SPRING RETURN DIRECT COUPLED ACTUATORS Automation and Control Solutions Honeywell International Inc. Honeywell Limited-Honeywell Limitée 1985 Douglas Drive North 35 Dynamic Drive Golden Valley, MN 55422 Toronto, Ontario M1V 4Z9 customer.honeywell.com ® U.S. Registered Trademark © 2008 Honeywell International Inc. 63-2607—08 M.S. Rev. 07-08...
