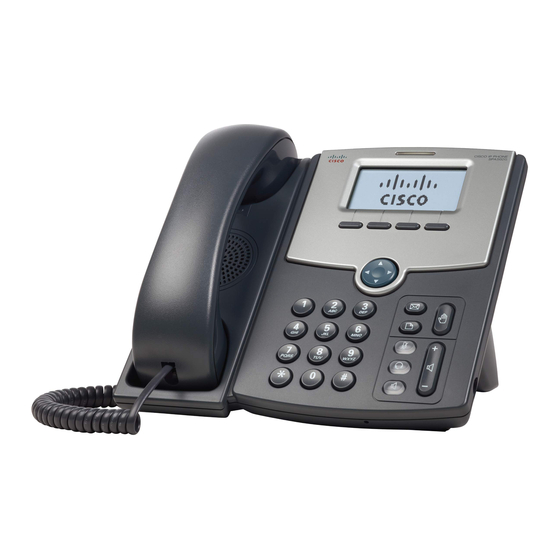

Your Desktop Device
9
Cisco SPA525G
9
Cisco SPA502G/SPA508G
You can manage many of these features and functions utilizing the Hosted Voice User Portal.
1
2
1
4
5
7
6
1
2
4
5
7
6
1. Voice Mail Message Indicator
The light indicates Voice Mail Messages (Solid) and
Incoming Calls (Flashing)
2. LCD Screen
3
Provides useful information and access to advanced
2
features
3. Line Indicators
The programmable keys indicate phone line status
Green (Solid) – Line is idle
Red (Solid) – Line is Active/in use
Red (Flashing) – Line is on hold
Orange (Solid) – Line is unregistered (cannot be used)
Orange (Flashing) – Handset has a network
communication error
8
NOTE: The SPA502G does not utilize line indicators
4. Softkey Button
The keys perform the function displayed directly above
them on the LCD screen. The functions are context-
sensitive and may change depending on the state of the
phone.
3
5. Navigation Keys
(Left, Right, Up, Down, Select)
6. Key Pad
7. Function Buttons:
Messages
Hold
Headset
Menu
8
8. Aux port for Cisco SPA500DS Attendant Console
or External Headset
9. Speaker
Provides ringer and hands-free (speakerphone) audio
output.
Speaker
Mute
Volume
