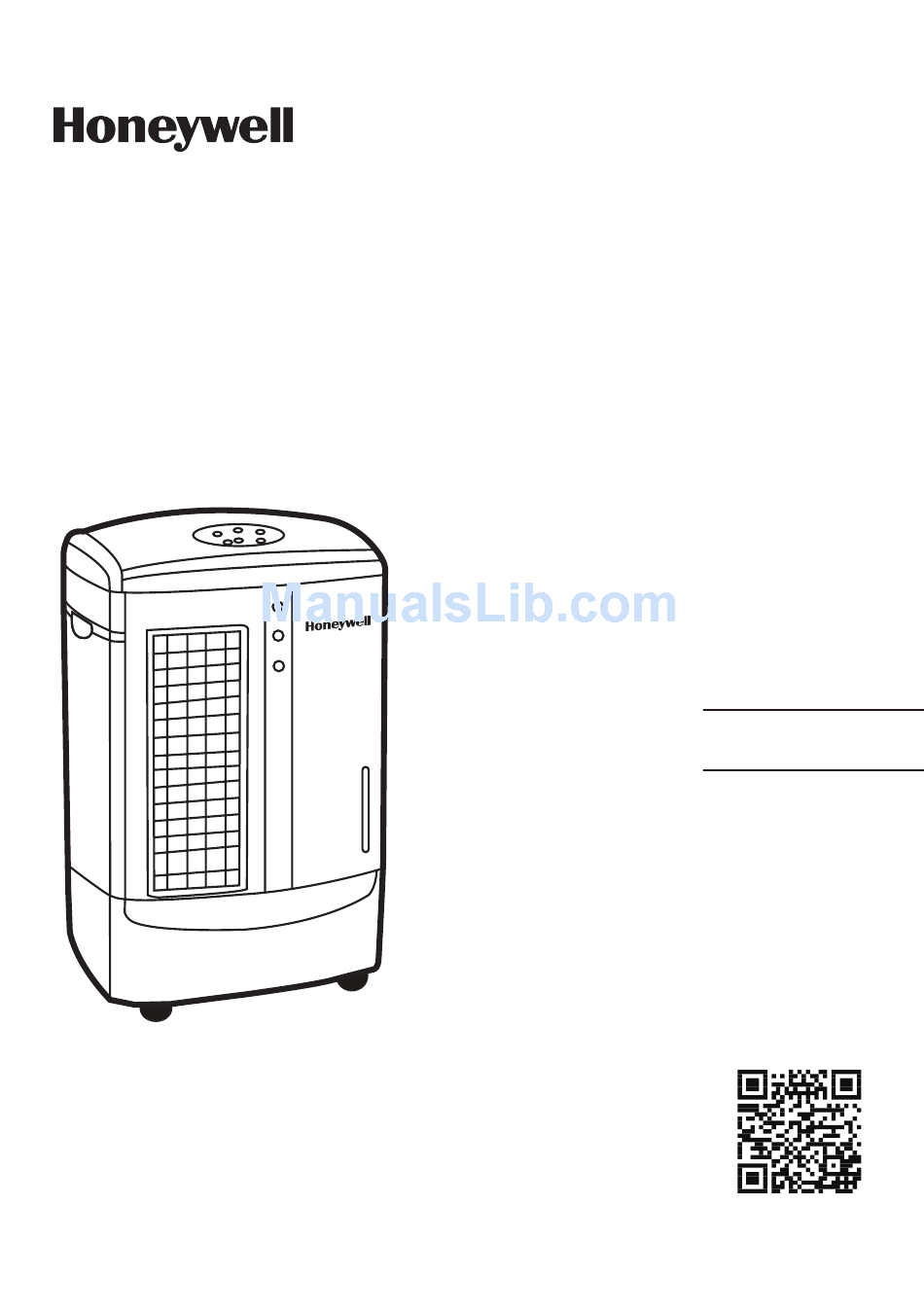

Portable Evaporative Air Cooler User Manual Read and save these instructions before use Model: CS07AE www.honeywellaircoolers.com E-mail: info@honeywellaircoolers.com...
PARTS DESCRIPTION Control Panel Water Tank Handle Rear Grill Louvers Rear Grill Screw Power Cord & Plug Honeycomb Cooling Media Water Level Indicator Water Fill Door Casters Drain Plug WARNING -- READ AND SAVE THE AIR COOLER SAFETY & MAINTENANCE GUIDE AND USER MANUAL BEFORE USING THIS PRODUCT.
USE & OPERATION CONTROL PANEL Icons on Display Screen Power ON / OFF Cool Swing Timer Setting Fan speed Wind Type 1 = Low N = Normal 2 = Medium R = Random 3 = High S = Sleep...
USE & OPERATION FUNCTION BUTTONS POWER Press the button to turn the unit on. The cooler will start automatically at medium speed. After a few seconds the speed will switch to low. To turn the unit off, press the button again. SWING Press the button until the...
USE & OPERATION (CONTINUED) REMOTE CONTROL POWER ON / OFF COOL Controls cooling or fan option COOL SWING SWING Controls the motion of the louvers TIMER TIMER Controls the Timer function for automatic off WIND TYPE SPEED WIND TYPE Switch between Normal, Random & Sleep SPEED Low / Medium / High NOTE:...
USE & OPERATION (CONTINUED) COOLER LOCATION Make sure to position the air cooler correctly before you set up and start using the product. Please refer to the COOLER LOCATION section of the separate Safety & Maintenance Guide. FILLING WITH WATER CAUTION: Unplug the unit from the electrical power outlet before emptying or refilling the water tank.
Page 7
USE & OPERATION (CONTINUED) CLEANING & DRAINING THE WATER TANK Below are instructions on how to clean and maintain your air cooler. If the cooler will not be used for a long period of time, please refer to the STORAGE & MAINTENANCE GUIDELINES located in the separate Safety &...
Page 8
USE & OPERATION (CONTINUED) CLEANING THE Carbon Dust Filter* AND HONEYCOMB COOLING MEDIA • The appliance is supplied with a Carbon Dust Filter* and Honeycomb Cooling Media. • The Carbon Filter* and Honeycomb Cooling Media are located inside the Rear Grill. See Figure 1 for instructions on how to remove them from the unit for cleaning and maintenance.
