Honeywell MAXPRO NVR XE Quick Install Manual

4

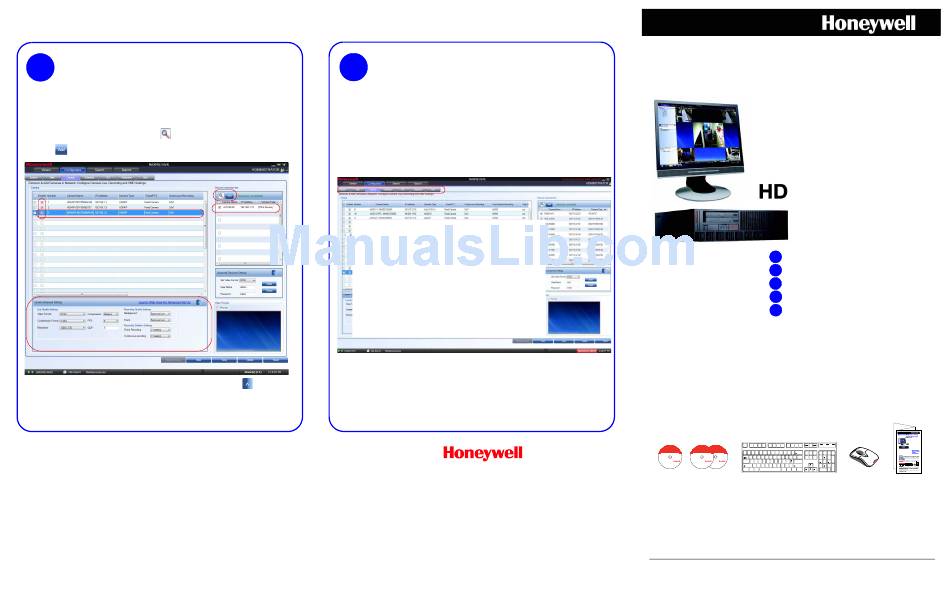

Third Party Device Configuration
Non-Honeywell devices are configured using MAXPRO NVR. To set up cameras for video
input:
1. Launch MAXPRO NVR.
2. On the Configurator tab, click the Camera tab.
3. In the Discover cameras here area, click to discover the connected cameras in the
subnet.
4. Click to add the device to the Camera list. Ensure that it is Enabled.
5. To change the default parameters of a camera, select it and then click
Advanced Discovery Settings to open an advanced settings pane where you can
modify the settings as required.
6. Click Save for your new settings to take effect.

More Information

For more detailed information than is contained in this guide, please refer to the appropriate
user guide located on the software/documentation DVD or on the Honeywell product web site
at www.honeywellvideo.com.
For a comprehensive list of all the third party devices supported by MAXPRO NVR, please go
to Honeywell Open Technology Alliance (HOTA) at www.security.honeywell.com/hota/.
5

Advanced Features

Note More detailed information on the advanced features available in MAXPRO NVR XE, can
be found in the comprehensive guides available on your software/documentation DVD
- UserManuals folder.
Configurator Tab
Use the Configurator tab to configure video devices and set up your MAXPRO NVR XE system.
The Configurator tab consists of seven sub-tabs: System, Disk, Camera, Schedule, I/O,
Sequence, User.
Configurator tab sub-tabs:
System: Recording, email, holiday/exceptions for
schedules.
Disk: Hard drive storage capacity, partitioned.
C: reserved for operating system
D: where the data is stored
Camera: Discover and add network cameras, live camera
configuration, recording, video motion detection.
Schedule: Set recording schedules for recorded video.
I/O: Configure input and output for each camera.
Sequence: Select a sequence of cameras for live video.
User: Set user access and permission levels.
Search Tab
Use the Search tab to search for recorded video (clips) or events.
next to
1. Select the check box next to the camera(s) from which the video was recorded.
2. Select search conditions in the Date time filter, then click Search.
+1.800.796.CCTV (North America only)
Document 800-08807V3 – Rev A – 03/2012
© 2012 Honeywell International Inc. All rights reserved. No part of this publication may be reproduced by any
means without written permission from Honeywell. The information in this publication is believed to be
accurate in all respects. However, Honeywell cannot assume responsibility for any consequences resulting
from the use thereof. The information contained herein is subject to change without notice. Revisions or new
editions to this publication may be issued to incorporate such changes.
www.honeywellvideo.com
HVSsupport@honeywell.com
®
MAXPRO NVR XE
(Xpress Edition)
Entry Level Network Video Recorder
Quick Install Guide
Document 800-08807V3 – Rev A – 03/2012
1
Hardware Installation
2
Honeywell IP Camera Configuration
3 Live View
4
Third Party Device Configuration
5
Advanced Features
Introduction
®
Thank you for purchasing a Honeywell MAXPRO NVR XE. Before installing your NVR,
please read this guide carefully.
Unpack Everything
Check that the items received match those listed on the order form and packing slip. The
packing box should include :
Esc F1 F2 F3 F4 F5 F6 F7 F8 F9 F10 F11 F12 PrtScn Scroll Pause
SysRq Lock Break Num Caps
Lock Lock
~ ! @ # $ % ^ & * ( ) _ + Page Num
- Backspace Insert Home Up Lock / *
` 1 2 3 4 5 6 7 8 9 0 =
H o n e yw e ll C o n fid e n tia l Ho n e yw e ll C o n fid e n tia l H o n e yw ell C o n fid e n tia l
& P ro p r ie ta ry & P ro p rie ta r y & Pr o p r ie ta ry Tab Q W R R T Y U I O P { } | 8
S o ftw a re Versio n 1 B uild 14 So ftw a re Versio n 1 B u ild 14 TeraB yte, Inc. so ftware and its This recovery DV D includes S o ftw a re Versio n 1 B uild 14 TeraByte, Inc. software and its This recovery DVD includ es [ ] Delete End Page 7 9
use is subject to TeraB yte, use is subject to TeraByte, \ Down Home PgUp
Copyright 2011 Copyright 2011 Copyrig ht 2011 Inc.'s end user license. Inc.'s end user license.
Honeywell International Inc. Honeywell International Inc. Honeywell International Inc. K L :
All rights reserved. All rights reserved. All rights reserved. Caps Lock A S D F G H J Enter 4 5 6
;
M A X PR O ® N V R X E M A X P R O ® N V R XE M A XP R O ® N V R X E
Software and Documentation Recovery Image - Disk 1 Recovery Image - Disk 2 Shift Z X C V B N M < > ? Shift 1 2 3
100-03255RevA 100-03255 R ev A 100-03255RevA , . / End PgDn
.
Ctrl Alt Ctrl 0
Ins Del
MAXPRO NVR XE software/ USB keyboard
documentation DVD,
Power cable
Recovery Disk DVD(s)
(not shown)
Note Other peripheral hardware (owner supplied) will also be needed for your installation
(for example, Honeywell IP cameras, a PoE switch, a VGA monitor, and appropriate cabling).
See Hardware Installation, for more information.
Document 800-08807V3 – Rev A – 03/2012
Entry Level Network Video Recorder
Scroll
Lock
_
+
Enter
USB mouse This guide
