ASSEMBLY

•
To install optional flap disc (sold separately) :
Place the flap disc over the spindle. Thread the
clamp nut on the spindle with the flat side of the
nut facing up. Fit the raised, small diameter
portion of the clamp nut into the hole in the
wheel and finger tighten.
WARNING:
Always install a grinding wheel with the depressed
center against the flange. Failure to do so will
cause the grinding wheel to crack when tighten-
ing the clamp nut . This could result in serious
personal injury because of loose particles break-
ing off and being thrown from the grinder. Do not
overtighten.
■ Depress the spindle lock button and rotate the wheel
clockwise until the spindle locks in position.
■ Tighten the clamp nut securely with the wrench
provided. Do not overtighten.
11

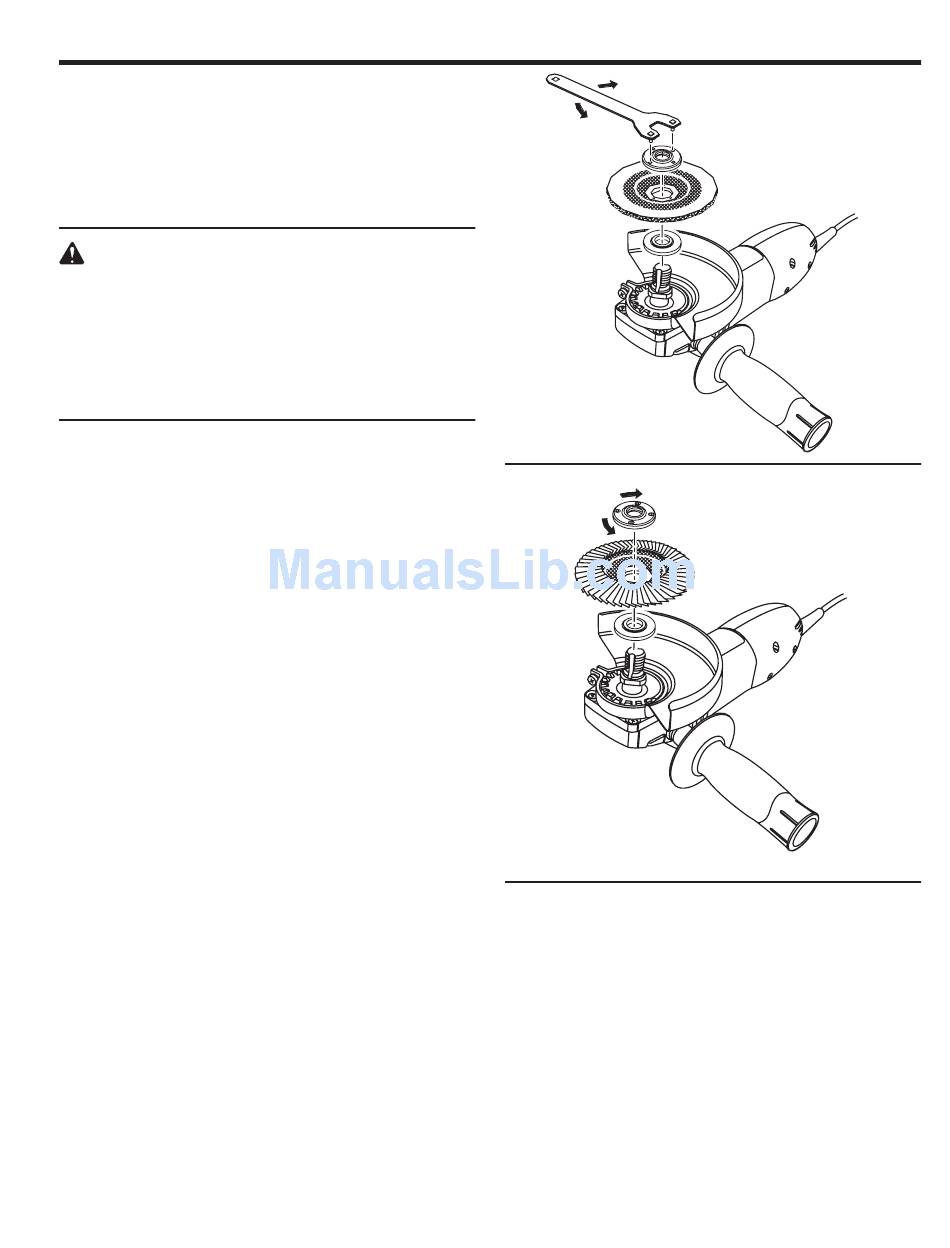

Fig. 3a
Fig. 3b
