Honeywell Acuix Quick Installation Manual

TM
ACUIX Fixed Camera Dome:
Single or Double Ball Joint
Stick Mount
Indoor Pendant Housing
Quick Installation Guide
1
Introduction
Caution The maximum camera and lens weight that can be
installed in the housing is 2 pounds (0.91 kg).
Note The fixed camera is selected by the end user. Install a
camera with a ¼"-20 tripod mount and ensure that the
size of the camera and lens allow enough room to aim
and adjust the lens within the contraints of the housing.
Note It is the installer's responsibility to complete the wiring
and required connections based on the camera
selected.

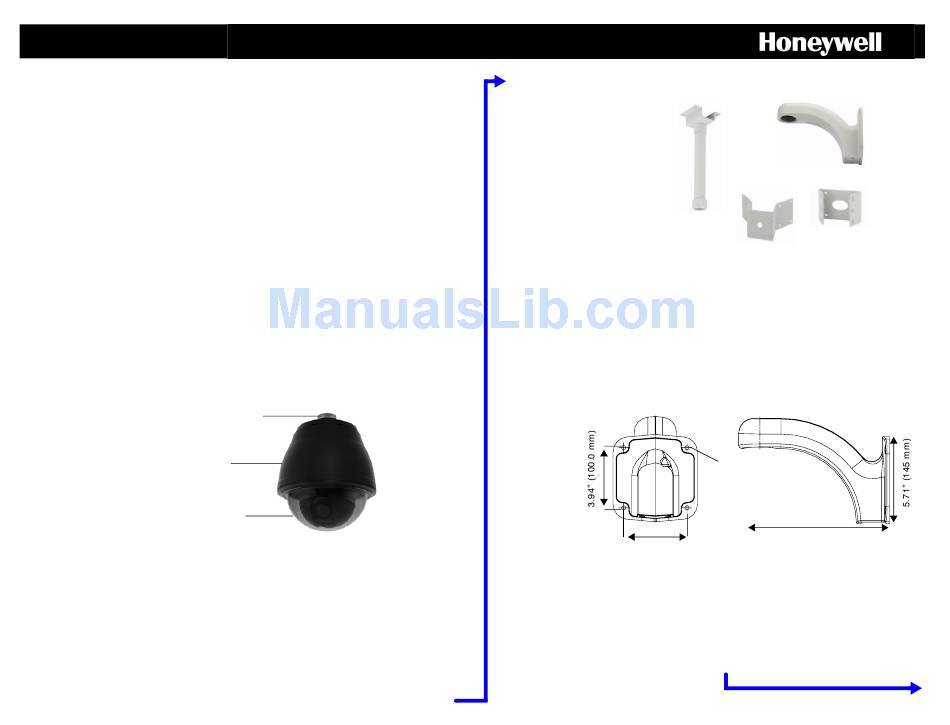

Figure 1
Threaded nipple
Housing
Lower dome
2
Install the Mount or Adapter
The indoor pendant housing has optional mounts and adapters available.
See Figure 2.
Document 800-03542 Rev A
12/08
External Dome Layout
Figure 2 Indoor Mounts and Adapters
Ceiling Mount
(HDCM1)
Pole Mount Adapter
(HDXPMA1)
2a
Installing a Wall Mount and Optional Pole or Corner
Adapters
The HDXWM1 wall mount is designed specifically for the ACUIX and can be
mounted directly to a vertical load-bearing surface. It supports up to 25
pounds (11.7 kg).
Figure 3 Wall Mount Dimensions
0.28" diameter
(7.00 mm)
4.13" (105.0 mm)
1. Route the field wiring as required through the wall, pendant housing
wiring access hole, and then through the wall mount.
Approximately one foot (0.3 m) of cable must extend past the mount for
all installations.
• If installing with a corner or pole adapter also route the field wiring
through the corner or pole adapter hole.
Wall Mount
(HDXWM1)
Corner Adapter
(HDXCMA1)
9.84"(250 mm)
