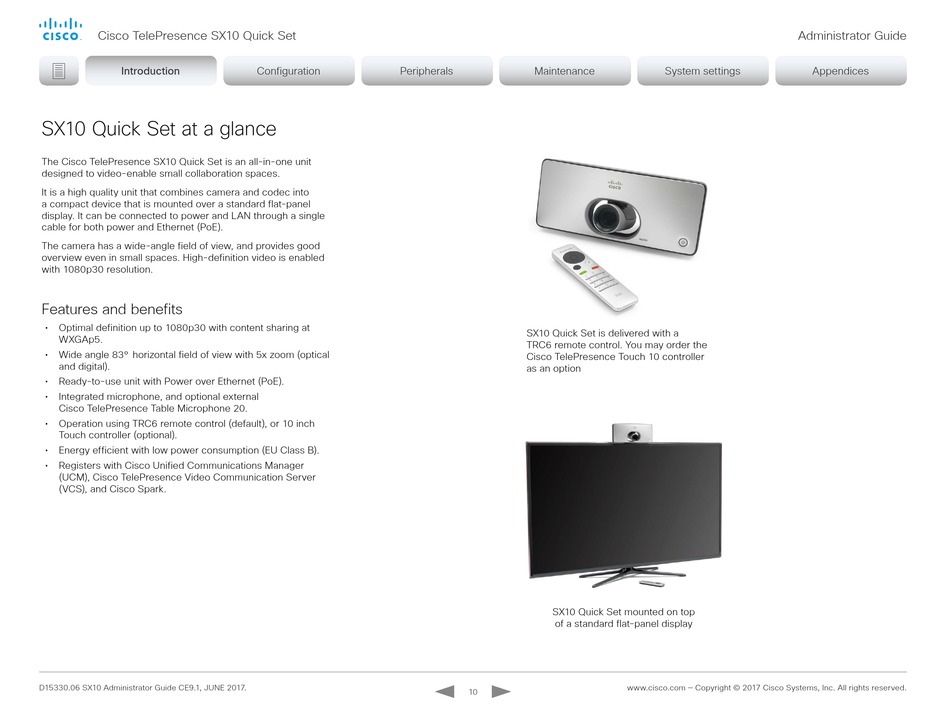

SX10 Quick Set at a glance

The Cisco TelePresence SX10 Quick Set is an all-in-one unit
designed to video-enable small collaboration spaces.
It is a high quality unit that combines camera and codec into
a compact device that is mounted over a standard flat-panel
display. It can be connected to power and LAN through a single
cable for both power and Ethernet (PoE).
The camera has a wide-angle field of view, and provides good
overview even in small spaces. High-definition video is enabled
with 1080p30 resolution.
Features and benefits
• Optimal definition up to 1080p30 with content sharing at
WXGAp5.
• Wide angle 83° horizontal field of view with 5x zoom (optical
and digital).
• Ready-to-use unit with Power over Ethernet (PoE).
• Integrated microphone, and optional external
Cisco TelePresence Table Microphone 20.
• Operation using TRC6 remote control (default), or 10 inch
Touch controller (optional).
• Energy efficient with low power consumption (EU Class B).
• Registers with Cisco Unified Communications Manager
(UCM), Cisco TelePresence Video Communication Server
(VCS), and Cisco Spark.
D15330.06 SX10 Administrator Guide CE9.1, JUNE 2017.
Configuration Peripherals Maintenance
SX10 Quick Set is delivered with a
TRC6 remote control. You may order the
Cisco TelePresence Touch 10 controller
as an option
SX10 Quick Set mounted on top
of a standard flat-panel display
