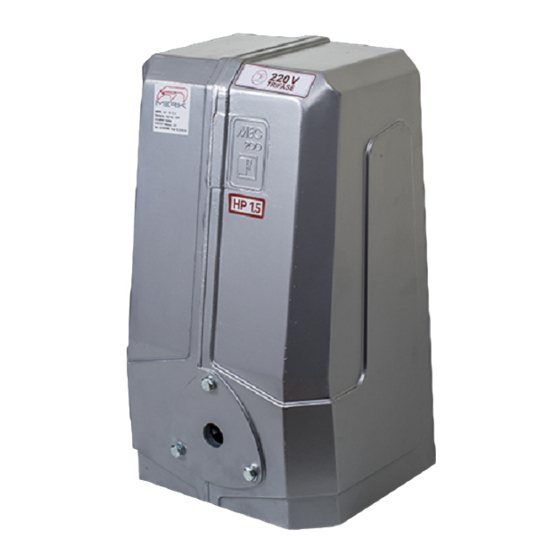

- Page 1 GB Instructions manual 1 - 8 pages MEC 200 Electro-mechanical sliding gate operator • Vertical and horizontal installation • Gear movements and worm-gear coupling in oil bath fully mounted on ball bearings EN 13241 EN 12453 EN 12445 the gate opener...
-
Page 2: Installation
CE DECLARATION OF CONFORMITY of the manufacturer: Meccanica Fadini snc (Via Mantova, 177/A - 37053 Cerea - VR - Italy) declares under own responsibility that: Mec 200 complies with the 2006/42/CE Machinery Directive, and also that it is sold to be installed in an “automatic system”, along with original accessories and components as indicated by the manufacturing company. - Page 3 KEEP TO THE DIAGRAMS. Mec 200 is an extremely versatile system and can suit any sliding gate as it can be mounted either vertically or horizontally, and the motor is available in different power specifications such as 0,37 kW (0,5 HP single- and three-phase); 0,73 kW (1,0 HP single- and three-phase);...
- Page 4 Pic. 3 While fixing the rack it is required that the Mec 200 driving gear is not connected with the gate and it can be made run idle by means of the release spanner E17 supplied with the equipment; the gate can be freely moved by hand.
- Page 5 WIRING DIAGRAM AND ACCESSORIES Before fitting Mec 200 make sure the installation is pre-set for all the safety and control accessories as required (Pic. 6). The safety edges, mechanically wire-operated and resistive 8,2 kΩ, fixed on the gate's leaf may be connected by cable, by mean of the safety radio device Arpo 58 or with the photocells Orbita 57.
- Page 6 TORQUE CONTROL AND ADJUSTMENT Mec 200 incorporates an adjustable clutch system for torque control. The system is in an oil bath and can be adjusted to the gate weight. Adjusting is by a screw which is located on one side of the operator. A special spanner E17 is provided with the equipment for this purpose: unscrew the locknut;...
-
Page 7: Maintenance Record
NOTE WELL: this document must record any ordinary and extraordinary services including installation, maintenance, repairs and replacements to be made only by using Fadini original spare parts. This document, for the data included in it, must be made available to authorized inspectors/officers, and a copy of it must be handed over the end user/s. -
Page 8: Overall Dimensions
110 Nm Gear rating 1/32 Travel speed 10 m/1' Working temperature -25 °C +80 °C Oil type Oil Fadini - Item 706L Maximum gate weight 1.200 kg 1.250 kg 1.800 kg 1.850 kg 2.000 kg Horizontal Mec 200 weight 19,5 kg...
