- Page 1 GB Instructions manual 1 - 12 pages MEC 800 Special External oil-hydraulic operator for swinging gates of large dimensions. With separate motor-pump. EN 13241 EN 12453 EN 12445 the gate opener...
-
Page 2: Before Installation
Meccanica Fadini snc (Via Mantova, 177/A - 37053 Cerea - VR - Italy) declares under own responsibility that: Mec 800 Special complies with the 2006/42/CE Machinery Directive, and also that it is sold to be installed in an “automatic system”, along with original accessories and components as indicated by the manufacturing company. An automatic gate operator is, by law, a “machinery”... -
Page 3: Product General Description
- with P6 pump or fast version P12 pump For the MEC 800 Special to work as an automatic system it is required that an electronic control box type Elpro be fitted externally in a sheltered place. Operations can be selected to be either fully automatic or semiautomatic (closing by pulse), depending on the user’s requirements. - Page 4 With separate motor-pump. ELECTRICAL WIRING DIAGRAM AND LAYOUT OF THE ACCESSORIES Before installing MEC 800 Special it is advisable that preparatory work be carried out for all of the accessories required at least to ensure safety and proper control of the system.
- Page 5 External oil-hydraulic operator for swinging gates MEC 800 Special of large dimensions. With separate motor-pump. INSTALLATION DISTANCES FOR THE GATE TO OPEN INWARDS Gate stop in closed position 90° Gate stop in open position Installation distances in (mm) for opening 90°...
- Page 6 External oil-hydraulic operator for swinging gates MEC 800 Special of large dimensions. With separate motor-pump. PREPARING THE FIXING PLATES Fix the front and rear brackets to the respective patching plates in advance (Pic. 4), after checking the installation distances as indicated in Pic.

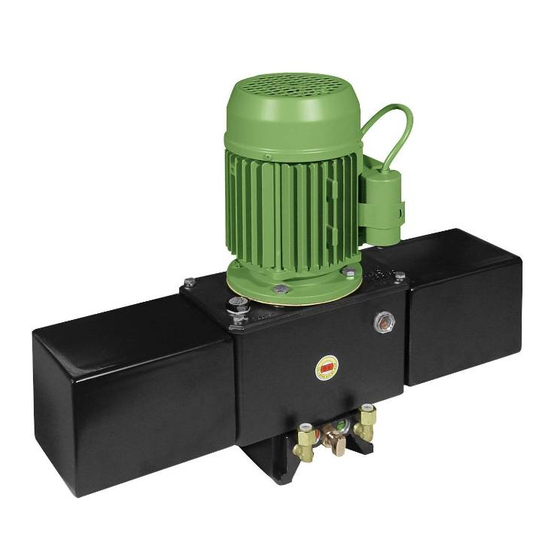

- Page 7 (gate closing) When two MEC 800 Special actuators are mounted per gate leaf, it is required that MEC 700/80 ventil double tank version be used along with the 6-way pipe block: this one is to be positioned half distance between the two actuators to allow simultaneous oil delivery to both of them.
-
Page 8: Filling Up With Oil
External oil-hydraulic operator for swinging gates MEC 800 Special of large dimensions. With separate motor-pump. FILLING UP WITH OIL Once satisfied that piping (copper tubes and hoses) between actuator/s and motor pump is completed, make sure the all the nuts and joints of the oil-hydraulic system are properly tightened. - Page 9 External oil-hydraulic operator for swinging gates MEC 800 Special of large dimensions. With separate motor-pump. INSTALLATIONS WITH FLOW REGULATOR The flow regulator is an optional device that allows for the operation speed to be adjusted as required all along the piston travel.
- Page 10 External oil-hydraulic operator for swinging gates MEC 800 Special of large dimensions. With separate motor-pump. FASTENING THE ACTUATOR COVER Pic. 12 MEC 700/80 VENTIL HYDRAULIC UNIT Phase Blue common Phase Earth Pic. 13...
-
Page 11: Maintenance Record
NOTE WELL: this document must record any ordinary and extraordinary services including installation, maintenance, repairs and replacements to be made only by using Fadini original spare parts. This document, for the data included in it, must be made available to authorized inspectors/officers, and a copy of it must be handed over the end user/s. - Page 12 Service cycle opening ~ 28 s Shaft diametre 22 mm dwell 30 s closing ~ 28 s Weight of Mec 800 Special 5,5 kg dwell 30 s Dimensions (length x width x height) 840x85x110 mm Complete cycle time ~ 116 s...
