fadini COMBI 740 Instruction Manual

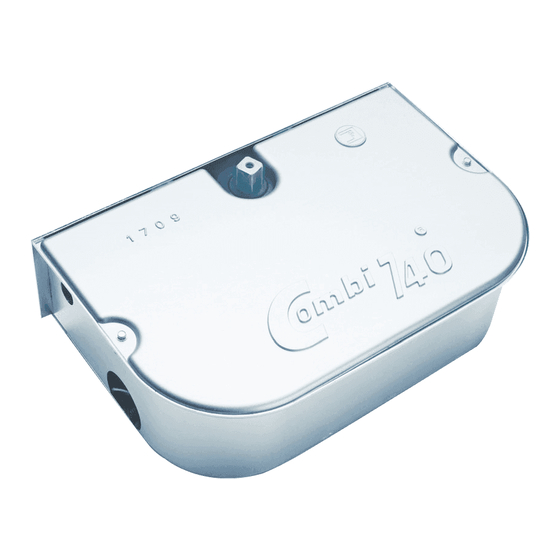

Below ground oil-hydraulic operator for swinging gates
Hide thumbs
Also See for COMBI 740:
- Instruction manual (13 pages) ,
- Instruction manual (14 pages) ,
- Manual (2 pages)
Advertisement
Quick Links
Below ground oil-hydraulic operator for swinging gates
STANDARD VERSION:
110° or 175° Leaf Rotation
• Compact, internal drive unit and hydraulic jack
• Normal version or version with two-way Locking device
• Models with or without hydraulic Brake
• Models with or without flow Regulator
Instructions manual
17-32
pages
17
Advertisement
Related Manuals for fadini COMBI 740
Summary of Contents for fadini COMBI 740
- Page 1 Below ground oil-hydraulic operator for swinging gates STANDARD VERSION: 110° or 175° Leaf Rotation • Compact, internal drive unit and hydraulic jack • Normal version or version with two-way Locking device • Models with or without hydraulic Brake • Models with or without flow Regulator Instructions manual 17-32 pages...
- Page 2 Plate with square ferrule (for hydraulic jacks with hydraulic locking device) (for hydraulic jacks without hydraulic locking device) Stainless steel cover (Optional) Aluminium enclosure cover Combi 740 110° Combi 740 175° Gate spacer hinge Enclosure (zinc-coated or stainless steel) PIC. 1...
- Page 3 GENERAL INFORMATION: The COMBI 740 is an oil-hydraulic automated operator designed to open and close swinging gates; it is installed below ground at the base of the gate's rotation hinges. It is an oil-hydraulic operator with a built-in hydraulic drive unit; the entire operator is housed inside its enclosure, cemented at the base of the gate leaf.
- Page 4 PIC. 4 Important: For installations with Combi 740 (Normal or Locking) with leafs longer than 2.0 meters it is always necessary to install an Electric lock or a Leaf stop bolt: the possible solutions are shown in Pic. 5 and Pic. 6. For a single leaf, it is recommended that the electric lock be installed horizontally.
-
Page 5: Installing The Enclosure
2) For leafs longer than 2.50 meters use of the Combi 740 with brake is recommended. 3) For special 4.0 and 5.0 meter leafs a Flow regulator must be installed. 4) The static weight that the Combi 740 can bear is 700Kg, for a 1.0 meter long leaf. If this 700Kg... - Page 6 PIC. 11 The gate leaf can be installed even without the Combi 740: the Enclosure, as a matter of fact, is pre-set to receive the Gate spacer hinge which, once secured inside of it, replaces the lower hinge of the leaf (Pic. 12).
- Page 7 PREPARING THE LEAF: SECURING THE EMERGENCY RELEASE OR THE FERRULE The connection between the gate leaf to be opened and the Combi 740 operator may occur in three possible versions depending on if there is an emergency manual release system, a simple Support plate with square hole ferrule or only a Square hole ferrule. However, in all cases it is necessary to tightly weld these three items to the leaf base, in alignment with the upper hinge of the leaf itself (Pic.14).
- Page 8 IMPORTANT: the emergency manual release is installed differently for the 110° and 175° versions. - The RIGHT Combi 740, 110°, is paired with the RIGHT (Dx) emergency manual release, and the LEFT with the LEFT (Pic.16). - The RIGHT Combi 740, 175°, is paired with the LEFT (Sx) emergency manual release, and the LEFT with the RIGHT (Pic.17).
- Page 9 11 - Trifo 11 Receiver photocell (internal) on post (code 108) 2 - Elpro 13 exp control box (code 7079) 12 - Right Combi 740 3 - Mains switch 230V - 50Hz Magnetic-thermal differential 0.03A 13 - Chis 37 Key-switch (code 371)
- Page 10 F4= 630mA 4 5 6 7 8 Flashing light fuse Flashing light fuse F3= 630mA F3= 630mA Elpro 13 exp FADINI Elpro 13 exp FADINI 11 12 13 14 15 16 17 19 20 22 23 11 12 13 14 15...
-
Page 11: Low Voltage Electrical Connections
230V SINGLE-PHASE PROGRAMMER FOR SWING GATE 230V SINGLE-PHASE PROGRAMMER FOR SWING GATE OPERATORS OPERATORS 230V SINGLE-PHASE PROGRAMMER FOR SWING GATE 230V SINGLE-PHASE PROGRAMMER FOR SWING GATE 230V SINGLE-PHASE PROGRAMMER FOR SWING GATE OPERATORS DIP-SWITCH 230V SINGLE-PHASE PROGRAMMER FOR SWING GATE OPERATORS DIP-SWITCH OPERATORS... - Page 12 230V SINGLE-PHASE PROGRAMMER FOR SWING GATE OPERATORS ELECTRIC POWER CONNECTIONS 16 17 19 20 22 23 Motors: DIP-SWITCH 8: ON: Eliminates the Leaf delay when opening. CLOSING LEAF DELAY TIME The motors start together 0s - 18s 16 17 19 20 OFF: Leaf delay when opening enabled DWELL TIME (If Dip-Switch 3=ON) DIP-SWITCH 3...
- Page 13 ELECTRICAL WIRING DIAGRAM OF COMBI 740 AND ACCESSORIES WITH ELPRO 13 exp Plug-in RADIO Jubi 433/2R Cable RG58 Pushbutton switch Pulin 3 26 27 28 3 Birio A8 Aerial 230V – 24V Transformer SUPPORT FOR PLUG-IN RADIO CARD TERMINAL BOARD FOR...
- Page 14 ADJUSTING THE THRUST FORCE The anti-crushing safety of Combi 740 is ensured by the maximum hydraulic pressure valves, which allow for an accurate and stable adjustment of thrust force over time. These are protected by a casing, secured during testing at the factory; once the protective casing has been removed, loosening the screws with an Allen wrench, the valves can be adjusted.
- Page 15 CONFORMS TO MACHINERY DIRECTIVE ..2006/42/CE FURTHER: The Combi 740 is sold to be installed as an "automated system", with original accessories and components specified by the manufacturer. An automation, in legal terms, is a "machine" and therefore all safety regulations must be applied by the installer.
-
Page 16: Ordinary Maintenance
- In case the actuator is removed, do not cut the electrical wires; instead remove them from the terminal board by loosening the screws inside the junction box. The MECCANICA FADINI'S development has always been based on ensuring the quality of products and on the existence of a TOTAL QUALITY CONTROL system, which guarantees quality levels over time as well as constant updating in compliance with European standards, in order to ensure continued improvement.
