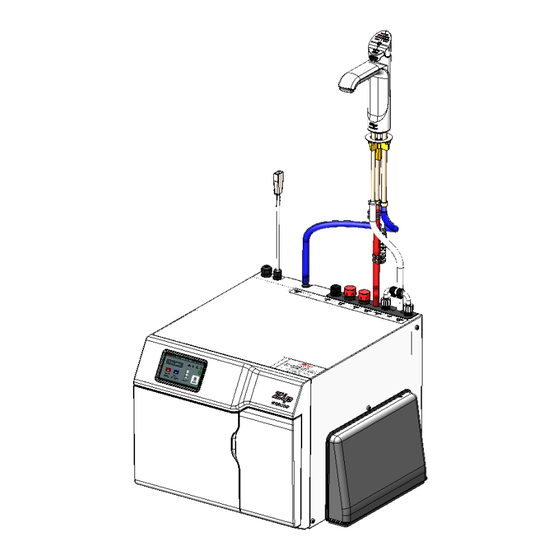

ZIP HydroTap G4 ® User Manual Affix model number label here 801599UK 801599UK G4 Commercial Boiling Chilled User manual - Aug 2016 - V2.03 Page 1 of 24... -
Page 2: Table Of Contents
Table of contents • Elite HydroTap G4 ........Page 2 ® • Classic HydroTap G4 ....... Page 4 ® • Arc and Cube HydroTap G4 ....Page 7 ® • All-in-One HydroTap G4 ......Page 9 ® • Classic, Arc and Cube mixer taps ..Page 9 • LCD screen &... - Page 3 Elite HydroTap ® White FILTER light Filter light off This indicates the filter is operating within its normal specified lifespan. Filter light flashing slowly The light will flash slowly when the filter is due for replacement and the LCD will show ‘Filter Change. See ‘To change the filter’ page 22 Tap safety The safety lock feature is provided to prevent boiling water flowing if the red BOILING control is inadvertently activated.
-
Page 4: Classic Hydrotap G4
Classic HydroTap ® (inc. All -in One) Classic functionality Boiling lever Chilled lever The Classic tap uses lever switch controls to operate the tap. Blue lights lights Lever controls can be pushed back to dispense water manually, or pulled forward to dispense water for a fixed time period, (see Filter page 22). - Page 5 Classic HydroTap ® (inc. All -in One) Filter light flashing slowly The light will flash slowly when the filter is due for replacement and the LCD will show ‘Filter Change’. (See To change the filter, page 22). Tap safety The safety lock feature is provided to prevent boiling water flowing if the red BOILING control is inadvertently activated.
- Page 6 Classic HydroTap ® (inc. All -in One) Safety sensor calibration Light intensity varies from site to site, therefore it is recommended that a recalibration be performed at the time of the installation. All direct sunlight must be shaded from the HydroTap G4, during the ®...
-
Page 7: Arc And Cube Hydrotap ® G4
Arc and Cube HydroTap ® Arc / Cube functionality Indicator light On power up, wait 30secs. for the unit to calibrate before selecting either the BOILING red illuminated with safety, or Select button CHILLED blue illuminated water mode, by touching the select button. Safety button The Arc / Cube control may be rotated in a forward or reverse... - Page 8 Arc and Cube HydroTap ® Flashing slowly This indicates that the chilled water is not within the set temperature range. When the chilled water is at the set temperature, the light will stop flashing. This could take several minutes. During heavy usage, the temperature can rise out of this range. Filter lights All three tap lights (Safety, Select and Indicator light) will flash white every 10 seconds, indicating a filter change is required.
-
Page 9: All-In-One Hydrotap ® G4
All-in One HydroTap ® Tap functionality and operation The top of the All-in- One tap is operated in the same manner as a Classic HydroTap ® The two levers are used for dispensing boiling and chilled water. The safety lock also operating in the same manner as the Classic HydroTap ®... -
Page 10: Lcd Screen & Menu
LCD Screen Zip HydroTap G4 features a ‘TOUCH’ screen for easy setup and operation ® adjustment. (See page 24 for home menu icons). Other possible messages in status window: Status** Information Notes Safety OFF Product is in normal operation mode... - Page 11 LCD Screen menu Main Sub menu Sub menu Section menu options Language English / Deutsch • Product info. • Module Revision Serial number Product number Information Calibration • Filters log • Filters • System faults • Faults found • Energy • Reset • Filter flush • Start/Stop...
- Page 12 Press [<=] button for the previous menu or press [HOME] button to return to the home screen. • Press [Energy] to view Total Zip Boiling Chilled 15:11 Tue 26, July 2016 energy information. • Press reset to view the energy Total Energy 00010.4...
- Page 13 LCD Screen operation - Section C C. Install Once your Zip HydroTap G4 unit has been installed, Go to the install menu to ® configure the system settings for your product. Sub menu 1. - Filter flush. 2. - Filter reset.
- Page 14 Caution In general, boiling water units may vent steam from the tap spout. Take care to avoid personal injury whenever this occurs. The Zip HydroTap G4 is equipped with a self-calibrating program. On start ® up, the controls take the system through a calibration process. Once this mode is completed the system reverts back to normal operation.
- Page 15 This can only be done by a Zip technician. Please contact your Zip service provider for further assistance.
- Page 16 HydroTap G4). ® LCD Screen operation - Section F F. Communication The Zip HydroTap G4 allows the user to use Wi-Fi to operate the product ® remotely. • From the Home screen Press [Menu].
- Page 17 • Press [NEXT] button to set time. Set temperature Zip HydroTap G4s are designed to operate within 1ºC to 2ºC of set point for ® boiling water and between 5ºC to 9ºC for chilled drinking water. All boiling water units are self calibrating to 98ºC, which is the recommended setting.
- Page 18 LCD Screen operation - Section G Filter Zip HydroTap G4 allows the user to adjust filter life and edit filter usage. ® Note The filter life may be set as a function of litres used, or in months from the filter change. When the first of these functions is reached (i.e.
- Page 19 LCD Screen operation - Section G Energy modes This mode allows the HydroTap G4 to go into energy saving mode. There ® are two options available: sleep mode and on/off mode. In sleep mode the unit will go to “Sleep” after a 2hr period of inactivity. The boiling water will gradually drop to either 68°C or room temp, as shown in the table below and the chilled water will be ON or OFF.
- Page 20 LCD Screen operation - Section G Note Any attempt, during off mode, to dispense water, will bring the unit out of sleep mode. The unit will return to sleep mode after 2 hours of non use. Please allow sufficient time for the water to reach the set temperature after disabling the sleep mode.
- Page 21 LCD Screen operation - Section G Safety To allow the safety setting to be changed using the touch screen • Press the [MENU] button for main menu. • Press the [Settings] button. • Enter your 4-digit password and press [Enter]. •...
-
Page 22: Filter Maintenance
LCD Screen operation - Section G Dispense Times The ability to change the maximum dispensing time for both the hot and cold water has been introduced. The default settings for the maximum dispensing times is 15 seconds. The operator may change both the hot and cold dispensing times from 5 to 15 seconds, in increments of 1 second. - Page 23 Filter maintenance • Caution. A small amount of water will drip as the cartridge is removed. • Do not tilt the cartridge as water may spill from it if tilted. • Unpack replacement cartridge and remove sanitary cap, write today’s date where shown on the label.
-
Page 24: Home Menu Icons
Telephone: 0345 6 005 005 Norfolk NR191TE As Zip policy is one of continuous product improvement, changes to specifications may be made without prior notice. Images in this booklet have been modified and may not be true representations of the finished goods.
