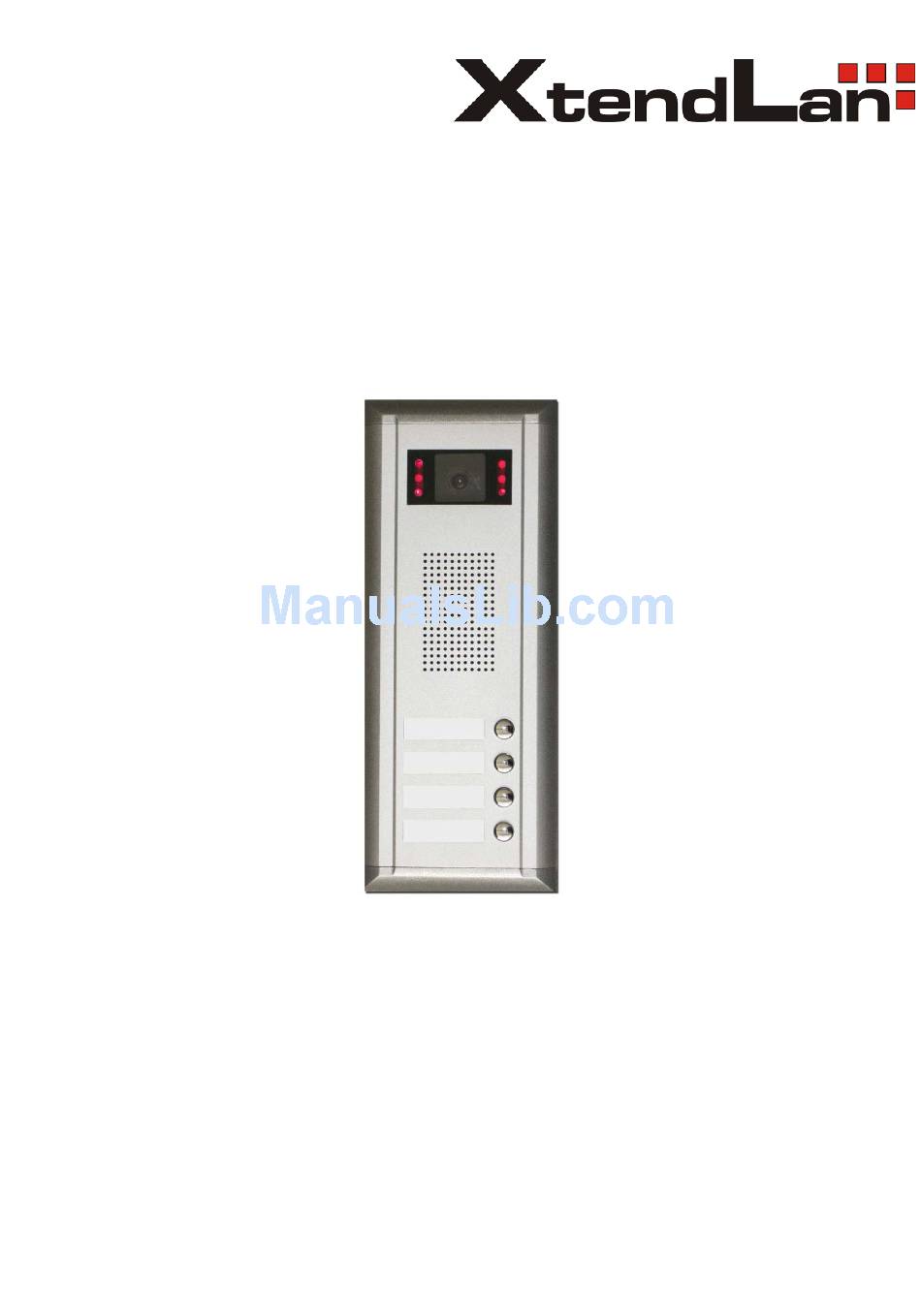

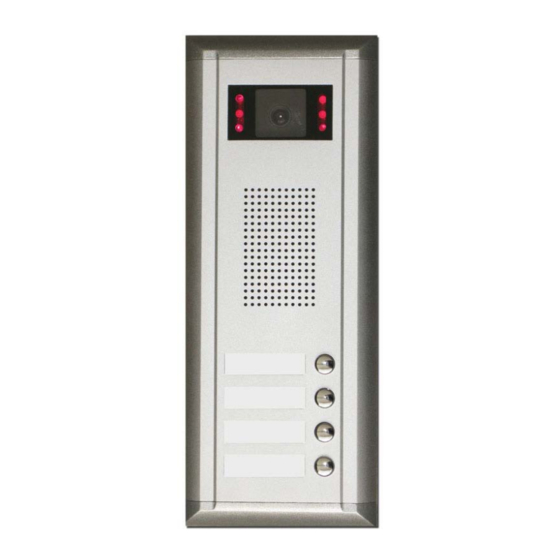

  • Page 1 DPC-511 Door station User’s Guide...

  • Page 2: Parts And Functions

    1. Introductions Door Station is a unit installed on the entrance of a building, which used to call a user in a apartment, and control the electronic lock opening. To call the user, press a button with a associated nameplate of the user; then the user will press the Unlock button on the monitor to open the door for the visitor if she/he is accepted.
  • Page 3 3. Terminals • +12V: 12VDC power output .• LK-(GND): power ground. • LK+(COM): electronical load activation relay contact common .• NO.: electronical load activation relay normally open contact • EB+: Exit button. • EB-: Exit button • T/R-: USB-RS485 communication terminal negative .•...

  • Page 4: Dip Switches Settings

    4. DIP Switches settings Total 6 bits in the DIP switches can be configured. The switches can be modified either before or after installation, but restart the power supply is needed whenever the switches have been modified. DIP1 The first three bit for door station ID settings DIP2 When multi-door stations are installed in the system, these three bit must be set DIP3...

  • Page 5: Place Name Plate

    5. Place Name Plate Press down and shift right/left to open the transparent nameplate cover, then insert the name paper, then put the plate cover back to the panel. Note that double button line panel can be opened both direction, single button line Can only be opened at right side.

  • Page 6: Installation With Expanding Panel

    7. Installation with expanding panel 8. ID CARD MANAGE • Up to 1000 user cards can be registered by the Door Station. • Easy management with LED state and Sound hint .• There are two master cards, one MASTER CARD ADD card and one MASTER CARD DELETE card, When adding a new master card, the old one will be replaced automatically.

  • Page 8: Other Functions

    9. Other functions : 1. <PA,PB >function operate PB button PA button Trigger mode activate the monitor refer to Activate program the monitor the button at the right to address, one time trigger one debug and check Three seconds mode activate the monitor refer to Program “...
  • Page 9 INTERCOM FUNCTION need indoor monitor support this function 4. MULTI OUTDOOR STATION 4.1. address should set to by DIP switch (details as above said) and the most quantity is seven outdoor station can support ( include the master door station) 4.2.
  • Page 10 door station, that means the indoor monitor has been successfully programmed. But if it sounds “BP, BP, BP” , that means the operation is fail, should be the works again, if sounds “ BP, BP”, that means you use the same button two times, make the room number repeat , so please chose another button.
