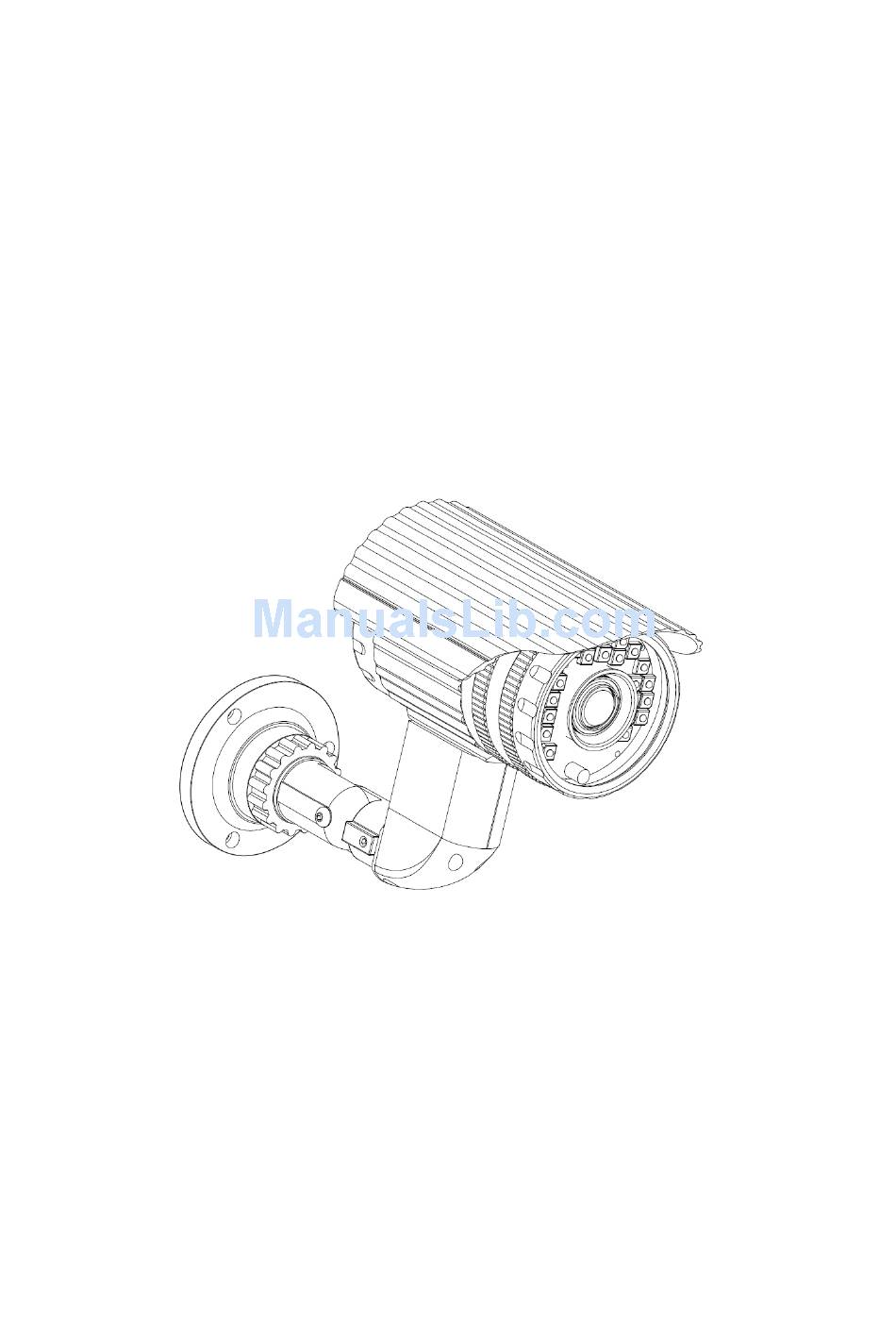

H.264 high profile 3m multi-profile ir vari-focal bullet network camera
Table of Contents

Advertisement

H.264 High Profile
3M Multi-Profile
IR Vari-Focal Bullet

Network Camera

User's Manual
Firmware Version 6.M.x.

Advertisement

Table of Contents
loading

Summary of Contents for Honeywell HICC-P-3100IRV

  • Page 1: Network Camera

    H.264 High Profile 3M Multi-Profile IR Vari-Focal Bullet Network Camera User’s Manual Firmware Version 6.M.x.
  • Page 2 Network Camera User’s Guide Owner's Record The model and serial numbers are located at the bottom of device. Record these numbers in the spaces provided below. Refer to these numbers whenever you call upon your dealer regarding this product. Model No. ____________________ Serial No.
  • Page 3 Network Camera User’s Guide Declaration of Conformity This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 4: Table Of Contents

    Network Camera User’s Guide Table of Contents Overview ..........................6 Introduction ......................... 6 Features ........................6 Minimum System Requirements................. 7 Package Contents........................ 8 Connections......................... 9 Hardware Installation ......................11 How to adjust zoom/focus of lens..................12 Preparation ........................13 Search and Set up by IPWizard II ................13 Search ........................
  • Page 5 Network Camera User’s Guide ONVIF ...................... 36 IP Filter ..................... 36 IP Notification ................... 37 Camera: Adjust Camera parameters..............40 Picture ....................... 40 Privacy Mask .................... 42 PTZ Setting ....................43 Preset Setting .................... 44 Tour Setting ....................45 System: Configure and maintain system............46 System .......................
  • Page 6: Overview

    Network Camera User’s Guide Overview The user’s guide explains how to operate this camera from a computer. User should read this manual completely and carefully before you operate the device. Introduction This camera is an inexpensive and fully scalable surveillance device. Because the Network Cameras can be plugged into your existing local area network (LAN), you will potentially save thousands of dollars from unnecessary cabling.
  • Page 7: Minimum System Requirements

    Network Camera User’s Guide Two-way audio Composited video out Intelligent motion detection up to 10 zones Voice alerting while event triggered Privacy masks 3D noise reduction to improve picture quality at low lux. Digital WDR to provide clear images even under back light circumstances Image transmission using an FTP or e-mail for event Digital sensor input and alarm output RS485 interface for P/T scanner control...
  • Page 8: Package Contents

    Network Camera User’s Guide Package Contents User can find the following items in the package: Item Descriptions 1. IR Network Camera is the main element of the product. 2. Power adapters dedicates 12V DC electric power output to Network Camera (option) 3.
  • Page 9: Connections

    Network Camera User’s Guide Connections 1. RJ45 LAN socket: Connect to PC or Hub/Switch. It’s for connections to 10Base-T Ethernet, 100Base-TX, or 1000Base-TX Ethernet cabling. This Ethernet port built N-Way protocol can detect or negotiate the transmission speed of the network automatically. Please use Category 5 or better cable to connect the Network Camera to an Ethernet network switch or hub.
  • Page 10 Network Camera User’s Guide 2. RS-485: Connect to a local keyboard controller. DI/ DO: Connect to sensor in and alarm out devices Cable for I/O connectors: Name Number Function 12VDC DC 12V (50mA maximum) Digital signal input Digital signal output 485+ RS485 data + 485-...
  • Page 11: Hardware Installation

    Network Camera User’s Guide Hardware Installation 1. Fix IR camera to desired location with stand 2. Plug-in Ethernet Cable into LAN port Connect an Ethernet cable to the RJ45 connector. 3. Connect RS485 D+ and D- (if you need to control PT scanner) 4.
  • Page 12: How To Adjust Zoom/Focus Of Lens

    Network Camera User’s Guide How to adjust zoom/focus of lens Zoom stick Focus stick 1. Open the back cover of the camera 2. Adjust zoom stick first 3. Adjust focus stick to get clear image 4. Close the back cover of the camera tightly. Otherwise, the camera may fail to waterproof.
  • Page 13: Preparation

    Network Camera User’s Guide Preparation Search and Set up by IPWizard II Once you installed the Camera on a LAN environment, you have two easy ways to search your Cameras by IPWizard II or UPnP™ discovery. Here is the way to execute IPWizard II to discover Camera’s IP address and set up related parameter in a Camera.
  • Page 14: View

    Network Camera User’s Guide View If IPWizard II finds network devices, View button will be available. Please select the device you want to view and click the View button. Then you could see the video from camera directly. Furthermore you could double click the left button of mouse to link to the network device by web browser.
  • Page 15: Lan

    Network Camera User’s Guide In case you want to change the IP related parameters of wired interface, please select the device you want to configure and click the LAN button. Relative settings will be carried out as below. Y o u c o u l d m o d i f y t h e r e l a t i v e s e t t i n g s o f t h e s e l e c t e d d e v i c e . C l i c k “ ”...
  • Page 16: Wireless

    Network Camera User’s Guide I n c a s e , y o u d o n o t w a n t t o c h a n g e u s e r n a m e a n d / o r p a s s w o r d , t h e n j u s t c l i c k “...
  • Page 17: Upnp Of Windows Xp, Vista Or 7

    Network Camera User’s Guide ® UPnP of Windows XP, Vista or 7 UPnP™ is short for Universal Plug and Play, which is a networking architecture that provides compatibility among networking equipment, software, and peripherals. This device is an UPnP enabled device. If the operating system, Windows XP, Vista or 7, of your PC is UPnP enabled, the Network Camera will be very easy to be found.
  • Page 18: Install The Device Behind A Nat Router

    Network Camera User’s Guide Install the Device behind a NAT Router Once installed, the device is accessible on your LAN. To access the device from the Internet you must configure your broadband router to allow incoming data traffic to the device.
  • Page 19: Access The Device From The Internet Explorer For The First Time

    Network Camera User’s Guide Access the device from the Internet Explorer for the first time If it’s the first you want to access your Network Camera by Windows PC, it would strongly recommend you to use Internet Explorer as default browser as possible. Start the web browser on the computer and type the IP address of the Camera you want to monitor as below: The Login Window of the Camera is prompted:...
  • Page 20: Logging In As An Viewer

    Network Camera User’s Guide That’s, type in “admin” on the “USERNAME” as a default name and leave PASSWORD textbox blank. Click “OK” button to start the main menu. According your browser’s security setting, the IE Web Page may prompt the “Security Warning”...
  • Page 21: Operating The Network Camera

    Network Camera User’s Guide Operating the Network Camera Start-up screen will be as follow no matter an ordinary users or an administrator. ActiveX Control Monitor Image Section 2-Way Full Audio Screen Monitor Image Section The image shot by the device is shown here. The date and time are displayed at the top of the window if Text Overlay enabled.
  • Page 22: Language

    Network Camera User’s Guide Language The device could provide multiple languages to meet customer’s requirement. 2-Way Audio The device supports 2-way audio function. User can chose to enable or disable this function by toggling the icon below. : Disable audio uploading function. : Enable audio uploading function.
  • Page 23: Activex Control

    Network Camera User’s Guide Camera direction Camera speed Preset Go tour Tour Auto pan Camera direction: Control camera up/down/left/right and home position. Camera speed: Choose the speed of Pan and Tilt. Preset: Add/Update the preset positions or go to one of these positions. Tour: Select one of the camera tours.
  • Page 24: Digital Zoom

    Network Camera User’s Guide On the ActiveX control icon, click the LeftMouseButton, then a menu pop-up. This menu provides features that are unique to the ActiveX control. These features include: • “Digital Zoom”, • “Snapshot”, • “Record”, • “Volume”, • “About” Digital Zoom Click Digital Zoom to active this function as above.
  • Page 25: Snapshot

    Network Camera User’s Guide Snapshot Click Snapshot to activate this function. Press Snapshot button to take a picture. The image file is saved as JPEG format into your local PC. Select Browser, the pop-up window to select the save path and file name prefix, select OK to continue. If you like to retrieve the saved image, select the file to display the saved image by using any one of graph editing tools.
  • Page 26: Volume

    Network Camera User’s Guide After stop recording, list the files, this file is named as Video_yyyymmddhhmmss.avi The ASF files can be display by the standard Windows Media Player, but it needs the DixectX 9.0 or later version to be installed. Volume Click Volume to activate this function.
  • Page 27: Administrating The Device

    Network Camera User’s Guide Administrating the Device System Setting This function is only available for user logged into Camera as administrator. Click on each menu name to display its setting page. Item Action Network Configure Network settings such as DHCP, DDNS, RTSP, PPPoE and UPnP Camera Adjust camera parameters, position, and set camera tour...
  • Page 28 Network Camera User’s Guide MAC address: Displays the Ethernet MAC address of the device. Note that user can not modify it. Obtain IP address automatically (DHCP): DHCP: Stands for Dynamic Host Configuration Protocol. Enable this checked box when a DHCP server is installed on the network to issue IP address assignment.
  • Page 29: Ipv6

    Network Camera User’s Guide number in back of IP address. For example: http://192.168.0.100:8080. Therefore, the user can access the device by either http://xx.xx.xx.xx/, or http://xx.xx.xx.xx:xxxx/ to access the device. If multiple devices are installed on the LAN and also required to be accessed from the WAN, then the HTTP Port can be assigned as the virtual server port mapping to support multiple devices.
  • Page 30: Https

    Network Camera User’s Guide HTTPS HTTPS: Stands for Hypertext Transfer Protocol Secure HTTPS is a combination of the Hypertext Transfer Protocol with the SSL/TLS protocol to provide encrypted communication and secure identification of a network web server. HTTPS connections are often used for sensitive transactions in corporate information systems.
  • Page 31 Network Camera User’s Guide Your Internet Service Provider (ISP) provides you at least one IP address which you use to connect to the Internet. The address you get may be static, meaning it never changes, or dynamic, meaning it’s likely to change periodically. Just how often it changes, depends on your ISP.
  • Page 32: Pppoe

    Network Camera User’s Guide User name: The user name is used to log into DDNS. Password: The password is used to log into DDNS. PPPoE PPPoE: Stands for Point to Point Protocol over Ethernet A standard builds on Ethernet and Point-to-Point network protocol. It allows your device with xDSL or cable connects with broadband network directly, then your device can dial up and get a dynamic IP address.
  • Page 33: Streaming

    Network Camera User’s Guide To enable or disable the PPPoE service here. User name: Type the user name for the PPPoE service which is provided by the ISP. Password: Type the password for the PPPoE service which is provided by the ISP. IP address, Subnet mask, and Gateway (read only): Shows the IP information got from PPPoE server site.
  • Page 34: Upnp

    Network Camera User’s Guide RTP Port: Specify the range of transmission port number of video stream. The default range is 50000 to 50999. User can specify a number between 1024 and 65535. UPnP UPnP is short for Universal Plug and Play, which is a networking architecture that provides compatibility among networking equipment, software, and peripherals.
  • Page 35: Bonjour

    Network Camera User’s Guide When enabled, the device will attempt to configure port mapping in a NAT router on your network, using UPnP™. Note that UPnP™ must be enabled in the NAT router first. Port Range: The port range will open in NAT router. External IP address: Show the IP address and port for WAN access through Internet.
  • Page 36: Onvif

    Network Camera User’s Guide Friendly Name: To show the friendly name of this device here. ONVIF ONVIF is a global and open industry forum with the goal to facilitate the development and use of a global open standard for the interface of physical IP-based security products.
  • Page 37: Ip Notification

    Network Camera User’s Guide Choose the filter policy where is denying or allowing. IP Notification In case the IP address is changed, system is able to send out an email to alert someone if the function is enabled. SMTP Notification (e-mail): If enable this function, then the “Send to“...
  • Page 38 Network Camera User’s Guide TCP Server: Type the server name or the IP address of the TCP server. TCP Port: Set port number of TCP server. Message: The message will be sent to FTP server. HTTP Notification: If enable this function, then the fields below need to be filled. URL: Type the server name or the IP address of the HTTP server.
  • Page 39 Network Camera User’s Guide Type the user name for the HTTP Proxy. Proxy Login Password: Type the password for the HTTP Proxy. Custom parameter: User can set specific parameters to HTTP server. Message: The message will be sent to HTTP server. 39/89...
  • Page 40: Camera: Adjust Camera Parameters

    Network Camera User’s Guide Camera : Adjust Camera parameters Use this menu to set the functions of the camera parameters of the device. Picture Rotation: Turn the “Mirror” and “Vertical Flip” On or OFF. The image will be overturned as below. 40/89...
  • Page 41 Network Camera User’s Guide White Balance: Auto: will adjust the white balance automatically. Hold: will hold the white balance. Iris/Exposure Control: Auto Iris: will adjust the DC Iris automatically. This Camera is built-in a DC-Iris lens. In case, the “Auto Iris” mode is selected, the Camera will control DC Iris automatically.
  • Page 42: Privacy Mask

    Network Camera User’s Guide Local video output: Enable or disable video signal of BNC connector. It’s very useful to check view angle or focus during camera installation. However, disable this function will save power a lot. Suggest to disabling it after camera installed well. ICR: Use built-in photo sensor or manual to control ICR.
  • Page 43: Ptz Setting

    Network Camera User’s Guide To define the gray level of mask block. The smaller value will be darker. Note that this function is not recommended for camera with PTZ/ePTZ actions. PTZ Setting Camera Protocol: This device can connect to a PTZ camera or speed dome camera and controls them thru RS485 interface.
  • Page 44: Preset Setting

    Network Camera User’s Guide Preset Setting This page provides the edit tool to modify or delete the “Preset Setting” item by item. 44/89...
  • Page 45: Tour Setting

    Network Camera User’s Guide Tour Setting Up to 128 positions can be preset, and the camera can be programming to move to the preset position sequentially. Tour Name: The group name of the sequence of camera tour. The maximum number of camera tour is 16.
  • Page 46: System: Configure And Maintain System

    Network Camera User’s Guide System : Configure and maintain system Use this menu to perform the principal settings of the device. System DIPS (Dynamic IP Service): To enable or disable the DIPS® (Dynamic IP Service) function. Device ID (for DIPS): It’s a unique number of each device for identification and this ID is used for DIPS.
  • Page 47: Date & Time

    Network Camera User’s Guide Enter your Device Number and press “OK” button. Then, a new web page will pop up and link to your device accordingly. You will see that DIPS is a much easier service than DDNS. Device Title: You can enter the name of this unit here.
  • Page 48 Network Camera User’s Guide PC Time: Displays the date and time of the connected PC. Adjust: - Synchronize with PC: Click this option to enable time synchronization with PC time. - Manual setting: Click this option to set time and date manually. - Synchronize with NTP: Click this option if you want to synchronize the device’s date and time with those of time server called NTP server (Network Time Protocol).
  • Page 49: Maintenance

    Network Camera User’s Guide Maintenance Hard Factory Default (Include the network setting): Recall the device hard factory default settings. Note that click this button will reset all device’s parameters to the factory settings (including the IP address). Factory Default (Except the network setting): The unit is restarted and most current settings are reset to factory default values.
  • Page 50 Network Camera User’s Guide 3. Disable all event trigger and/or schedule trigger functions first. 4. In this web page, click “Browse” button. Select the Firmware binary file. 5. Once the firmware file was selected, click “Firmware Upgrade” button. 6. The upgrade progress information will be displayed. Once the uploading process completed, the device will reboot the system automatically.
  • Page 51: Video: Configure Osd, Overlay, Profile, And Roi

    Network Camera User’s Guide Video : Configure OSD, Overlay, Profile, and ROI This device provides 2 modes of video profile. The first one is 3Mega mode which supports video resolution up to 3 Mega-pixel (2048x1536). The second one is 2Mega mode which supports video resolution up to 2 Mega-pixel (1920x1080).
  • Page 52 Network Camera User’s Guide Upload own image: There are two options: “Image Overlay Setting” or “User Defined Text”. Image Overlay Setting: Check this item to enable image overlay. Otherwise, the uploaded bitmap will not be overlaid on video. In “Image Overlay Setting” mode, user can upload bitmap file to camera as below: In “User Defined Text”...
  • Page 53: Video Profile

    Network Camera User’s Guide The font style can be chosen in this page. Once the font type settled, click “Save” button to upload text to image. Coordinates: Set position of image on the video. File: Information of the uploaded bitmap file. Resolution: Size information of the uploaded bitmap file.
  • Page 54 Network Camera User’s Guide Video Type: Video codec of the selected profile. If the H.264 encoder is selected, then there are 3 modes of profile selectable: baseline, main and high profile. Resolution: Show the resolution of the selected profile. ROI: Assign the selected profile as a ROI stream or not.
  • Page 55: Roi

    Network Camera User’s Guide Warning!!! To enable the multicast streaming, you shall make sure your Intranet does support multicast function. Otherwise, your Intranet may occur network storm seriously. ROI means Region of Interest. Use this page to specify location and size of ROI windows.
  • Page 56: Audio: Audio Parameters

    Network Camera User’s Guide Audio : Audio parameters Audio: To enable or disable audio function Audio Type: To select audio codec Audio Mode: To select Simplex or Full duplex (2-way audio) mode Input Gain: To adjust gain of input audio Output Gain: To adjust gain of output audio 56/89...
  • Page 57: User: Manage User Name, Password And Login Privilege

    Network Camera User’s Guide User : Manage user name, password and login privilege Use this menu to add, update, or remove the usernames and passwords of the Administrator and viewer. Viewer login: Select “Anonymous” to allow any one viewing the video once connected. Otherwise, only users in database can view the video after login.
  • Page 58: E-Mail: Setup E-Mail Configuration

    Network Camera User’s Guide E-Mail : Setup E-Mail configuration User may setup SMTP mail parameters for further operation of Event Schedule. That’s, if users want to send the alarm message out, it will need to configure parameters here first and also add at least one event schedule to enable event triggering. SMTP Server: Type the SMTP server name or the IP address of the SMTP server.
  • Page 59 Network Camera User’s Guide E-mail From: Type the sender’s E-mail address. This address is used for reply e-mails. E-mail To: Type the receiver’s e-mail address. E-mail Subject: Type the subject/title of the e-mail. 59/89...
  • Page 60: Event Detection

    Network Camera User’s Guide Event Detection This device supports 3 types of event detection: Motion detection, Camera tampering, and Audio detection. Motion Detection Use this menu to specify motion detection window 1 to window 10 and set the conditions for detection while observing a captured image. Add and Del: To add or delete the motion windows.
  • Page 61: Camera Tampering

    Network Camera User’s Guide Sensitivity Define the sensitivity value of motion detection. The higher value will be more sensitivity. Note that this function is not recommended for camera with PTZ/ePTZ actions. Camera Tampering Camera tampering detection is a new intelligent functionality that further strengthens the benefit of Network Camera.
  • Page 62 Network Camera User’s Guide outside of the camera’s view. Audio Alarm Level: Define the threshold value of audio detection. 62/89...
  • Page 63: Storage: Status And Configuration Of Samba Server

    Network Camera User’s Guide Storage : Status and configuration of SAMBA Server SAMBA Server This page shows the status of SAMAB server. You may setup related parameters to manage the remote SAMBA server. Host: Type the SAMBA server domain name or the IP address of the SMTP server. Share: Type the share folder of remote SAMBA server which the camera will upload files to this space.
  • Page 64: Continuous Recording

    Network Camera User’s Guide Continuous Recording The camera can continuously record video stream into files and save them to remote SAMBA server as possible. Note that there are various factors affecting the recording results, such as the camera’s system loading, network condition, SD card performance, multiple client accessing, and so on.
  • Page 65: Recording List: Files List Inside The Samba Server

    Network Camera User’s Guide Recording List : Files list inside the SAMBA server Continuous Recording List This page only shows the continuous recording files which stored in remote SAMBA server. User may play or delete the selected file. 65/89...
  • Page 66: Event Server: Setup Ftp/Tcp/Http/Samba Server Configuration

    Network Camera User’s Guide Event Server : Setup FTP/TCP/HTTP/SAMBA server configuration FTP Server You may setup FTP parameters for further operation of Event Schedule. That’s, if users want to send the alarm message to an FTP server, it will need to configure parameters here and also add at least one event schedule to enable event triggering as SMTP.
  • Page 67: Tcp Server

    Network Camera User’s Guide Set working directory path of FTP server. FTP Passive Mode: Select passive or active mode connecting to FTP server. TCP Server In addition to send video file to FTP server, the device also can send event message to specified TCP server.
  • Page 68 Network Camera User’s Guide Name: User can specify multiple HTTP servers as wish. Therefore, user needs to specify a name for each HTTP server setting. URL: Type the server name or the IP address of the HTTP server. Test: Check the HTTP server whether it is available or not. HTTP Login name: Type the user name for the HTTP server.
  • Page 69: Samba Server

    Network Camera User’s Guide SAMBA Server The device also can send event recording video files to specified SAMBA server. Name: User can specify multiple HTTP servers as wish. Therefore, user needs to specify a name for each HTTP server setting. SAMBA Server: Type the server name or the IP address of the SAMBA server.
  • Page 70: Event Schedule: Configure The Event Schedule

    Network Camera User’s Guide Event Schedule : Configure the event schedule Setting This menu is used to specify the schedule of Event or Schedule Trigger and activate the some actions provided by this device. Where the Schedule Trigger will be activated by user-define interval without event happened.
  • Page 71 Network Camera User’s Guide Example 1: Send file to FTP server by motion triggered always: Select event trigger Enable time: start from 00:00 to 24:00 every day Trigger by: Motion Area (Added in Object Detection page) Action : Send FTP (Add in Event Server -> FTP Server page) Example 2: Send file to E-Mail server by motion triggered from Friday 18:00 to Saturday 06:00...
  • Page 72 Network Camera User’s Guide Example 3: Enable Voice Alert every 10-minute during 18:00 to 24:00 from Monday to Friday. Type: Select schedule trigger and interval is 10-minute. Enable time: Select Monday to Friday, and set start time from 18:00 and keep work in 6 hours.
  • Page 73: Record

    Network Camera User’s Guide Record User can choose the type of record file for event or schedule application. Record File Type: Choose a profile to record. Record File Prefix: Define the prefix of recorded filename. Pre-Trigger Duration: Define the maximum duration of pre-alarm. Best Effort Duration: Define the best effort duration of post-alarm.
  • Page 74 Network Camera User’s Guide Input Status: Show either inactive or active. Output Status: Show either inactive or active. 74/89...
  • Page 75: Appendix A: Alarm I/O Connector

    Network Camera User’s Guide Appendix A: Alarm I/O Connector Some features of the Camera can be activated by the external sensor that senses physical changes in the area Camera is monitoring. These changes can include intrusion detection or certain physical change in the monitored area. For examples, the external sensor can be a door switch or an infrared motion detector.
  • Page 76 Network Camera User’s Guide Explanation of External I/O Circuit Diagram: CAUTION! • THE LOW VOLTAGE/CURRENT CIRCUITS AND HIGH VOLTAGE/ CURRENT CIRCUITS IN THE NETWORK CAMERA CIRCUIT. QUALIFIED ELECTRICIAN SHOULD DO THE WIRING NOT BY YOURSELF. INCORRECT WIRING COULD DAMAGE NETWORK CAMERA AND YOU MIGHT RECEIVE THE FATAL ELECTRIC SHOCK.
  • Page 77: Appendix B: Troubleshooting & Frequently Asked Questions

    Network Camera User’s Guide Appendix B: Troubleshooting & Frequently Asked Questions Question Answer or Resolution Features The video and audio The device utilizes H.264, MPEG4 and JPEG triple codec is adopted in the compression to providing high quality images. Where H.264 device.
  • Page 78 Network Camera User’s Guide IPWizard II program • Re-power the device if cannot find the unit within 1 minutes. cannot find the device. • Do not connect device over a router. IPWizard II program cannot detect device over a router. •...
  • Page 79 Network Camera User’s Guide • The port number assigned in your Network Camera might not be available via Internet. Check your ISP for available port. • The proxy server may prevent you from connecting directly to the Network Camera, set up not to use the proxy server. •...
  • Page 80 Network Camera User’s Guide web server running on your LAN. • Check the configuration of the router settings allow the device to be accessed outside your local LAN. • Check the bandwidth of Internet connection. If the Internet bandwidth is lower than target bit rate, the video streaming will not work correctly.
  • Page 81 Network Camera User’s Guide The video images might be noisy if the device is located in a Noisy images occur. very low light environment. Make the condition around the camera brighter or turn the IR LED on. Miscellaneous Cannot play the Have installed Microsoft®’s DirectX 9.0 or later and use the recorded AVI file Windows Media Player 11.0 or later to play the AVI files...
  • Page 82: Appendix C: Ping Ip Address

    Network Camera User’s Guide Appendix C: PING IP Address The PING (stands for Packet Internet Groper) command is used to detect whether a specific IP address is accessible by sending a packet to the specific address and waiting for a reply. It’s also a very useful tool to confirm the device installed or if the IP address conflicts with any other devices over the network.
  • Page 83: Appendix D: Bandwidth Estimation

    Network Camera User’s Guide Appendix D: Bandwidth Estimation The frame rate of video transmitted from the device depends on connection bandwidth between client and server, video resolution, codec type, and quality setting of server. Here is a guideline to help you roughly estimate the bandwidth requirements form your device.
  • Page 84: Appendix E: Specifications

    Network Camera User’s Guide Appendix E: Specifications Camera Image Device 3.4 Mega-pixel Sony Exmor image sensor Effective Pixels 2048 x 1536 pixels Image Size 1/2.8” Vari-focal lens: f 3-9mm with auto Iris and ICR or Lens Vari-focal lens: f 3.3-12mm with auto Iris and ICR IP Module Video Video Encoder...
  • Page 85 Network Camera User’s Guide Audio detection Digital input 10-zone video motion detection with included or excluded Motion Detection options File upload via FTP, SAMBA,or email Notification via email, HTTP, and TCP Alarm Events External output activation Audio alerting output Video Buffer Pre- and post- alarm buffering General 256MB...
  • Page 86: Appendix F: Configure Port Forwarding Manually

    Network Camera User’s Guide Appendix F: Configure Port Forwarding Manually The device can be used with a router. If the device wants to be accessed from the WAN, its IP address needs to be setup as fixed IP address, also the port forwarding or Virtual Server function of router needs to be setup.
  • Page 87 Network Camera User’s Guide Your WAN IP Address will be listed here. Note: Because a dynamic WAN IP can change from time to time depending on your ISP, you may want to obtain a Static IP address from your ISP. A Static IP address is a fixed IP address that will not change over time and will be more convenient for you to use to access your camera from a remote location.
  • Page 88 Network Camera User’s Guide Private Port section, click Apply. Scheduling should be set to Always so that the camera images can be accessed • at any time. A check mark appearing before the entry name will indicate that the ports are enabled. Important: Some ISPs block access to port 80.
  • Page 89: Appendix G: Power Line Frequency

    Network Camera User’s Guide Appendix G: Power Line Frequency COUNTRY VOLTAGE FREQUENCY COMMENTS *Neutral and line wires are reversed from that used in Argentina 220V 50 Hz Australia and elsewhere. *Outlets typically controlled by adjacent switch. Australia 230V* 50 Hz Though nominal voltage has been officially changed to 230V, 240V is within tolerances and commonly found.
