TABLE OF CONTENTS
1 Safety Precautions----------------------------------------------- 2
2 Specifications ----------------------------------------------------- 3
3 General/Introduction -------------------------------------------- 4
4 Features ------------------------------------------------------------- 5
5 Location of Controls and Components ------------------- 7
6 Test Mode ----------------------------------------------------------14
7 Service Fixture & Tools----------------------------------------15
8 Disassembly and Assembly Instructions ---------------15
9 Wiring Connection Diagram ---------------------------------24
10 Exploded View and Replacement Parts List -----------26

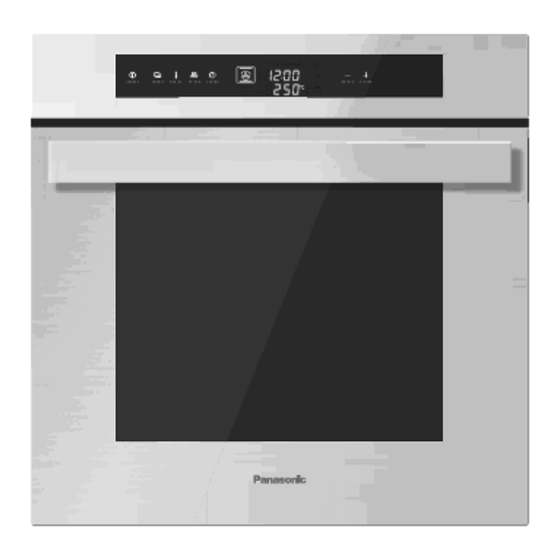

ELECTRIC BUILT-IN OVEN
Model No.
Model No.
Destination UK
PAGE
© Panasonic Corporation 2013 Unauthorized copy-
ing and distribution is a violation of law.
Order No. APGBIK1304003CE
-BT62S
-BT62B
PAGE
Advertisement
Table of Contents
Related Manuals for Panasonic HL-BT62S
Summary of Contents for Panasonic HL-BT62S
-
Page 1: Table Of Contents
6 Test Mode ----------------------------------------------------------14 7 Service Fixture & Tools----------------------------------------15 8 Disassembly and Assembly Instructions ---------------15 9 Wiring Connection Diagram ---------------------------------24 10 Exploded View and Replacement Parts List -----------26 © Panasonic Corporation 2013 Unauthorized copy- ing and distribution is a violation of law. -
Page 2: Safety Precautions
1 Safety Precautions 1.1. Health & Safety Note: When servicing the SCHOLTES oven, health and safety issues must be considered at all times. Specific safety issues are listed below with their appropriate icon. These are illustrated throughout the service information to remind service people of the health and safety issues 1.1.1. -
Page 3: Specifications
2 Specifications MODEL -BT62S / HL-BT62B DESCRIPTION VALUE OVEN CAPACITY 68 LITERS ELECTRICAL SUPPLY 220-240V ~ -50-60Hz NOMINAL POWER 3.00 kW OVEN FAN MOTOR GRILL HEATING ELEMENT 1.80 kW TOP HEATING ELEMENT BOTTOM HEATING ELEMENT 1.2 kW FAN HEATING ELEMENT 2.0 kW ENERGY CLASS A -20%... -
Page 4: General/Introduction
3 General/Introduction 3.1. OVEN COOLING CIRCUIT AND FLUE The oven is cooled by a tangential fan motor located above the oven cavity The tangential cooling starts working (regardless of which cooking operation is selected) when the oven is switched on. The fan pro- duces an air flow that lows out from an opening between the door and the front panel. -
Page 5: Features
4 Features 4.1. Oven cavity structure A flue has been introduced on the top of the oven compart- ment, which leads into the ventilation duct, allowing a reduction in the humidity that is created inside the oven compartment. (In the case of a pyrolitic oven there is also a catalyser) 4.2. -
Page 6: Heating Element
4.3. Heating element The heating elements are the same for all the ovens and are screwed in place from the inside the oven compart- ment. The bottom heating element is easily accessible since it is removed by extracting it from the rear side of the appliance 4.4. -
Page 7: Location Of Controls And Components
5 Location of Controls and Components 5.1. CONTROL PANEL 5.1.1. Keys description on-off function selection temperature setting duration timer delay timer descrease - minus increase - plus minute minder clock set In each menu only activated keys are described. The keys NOT described are NOT activated. Any key pressing is followed by a short sound. -
Page 8: Setup Menu
5.1.4. USER INTERFACE (UI) status Pressing key is possible to switch between these configuration (rolling): STATUS DISPLAY SHOWS KEYS USE STAND-BY Display OFF the uP maintains the clock updated CLOCK D1 shows the clock Set the clock (see §3) Set the UI in available different status D1 Clock - D2 OFF Oven lamp ON Select function. -
Page 9: Manual Cooking
5.1.6. Manual cooking STATUS DISPLAY SHOWS KEYS USE Set the UI to STAND-BY status D1 shows Clock D2 is OFF Select function. If within 20sec any cooking function or minute minder is selected, the UI Set a minute minder (see §7) comes back (automatically) to CLOCK status. -
Page 10: Minute Minder
5.1.7. Minute minder Is possible to set a minute minder to activate an alarm after a countdown expire, without stopping any active cooking cycle STATUS DISPLAY SHOWS KEYS USE Set the UI to STAND-BY status D1 shows Clock D2 is OFF Select function. - Page 11 STATUS DISPLAY SHOWS KEYS USE Keep pressed for 3 sec to set the UI to STAND-BY status DURATION D1 shows countdown TIMER Quick pressing to switch ON-OFF the oven lamp D2 shows temperature Active Change the countdown as described above Keep pressed for 3 sec to set the UI to STAND-BY status D1 shows “StOP”...
- Page 12 5.1.10. Self cleaning cycle ( only on pyrolitic ovens) STATUS DISPLAY SHOWS KEYS USE Set the UI to STAND-BY status D1 shows Clock ON STATUS Select a cooking function D2 is OFF Set a minute minder (see §7) Set the UI to STAND-BY status After pressing →...
-
Page 13: Child Lock
5.1.12. Child lock The “child lock” is activated only if is preset as described in §5. STATUS DISPLAY SHOWS KEYS USE ANY OVEN STATUS See related paragraph Keep pressed for 3 second to set the UI to STAND-BY. Keyboard locked This key is never locked (for safety reasons) D2 shows “... -
Page 14: Test Mode
6 Test Mode 6.1. Oven testing procedure The procedure starts with the oven not connected to the mains, and can be activated only within 30sec from oven connection. During the test the electronic board also checks the temperature probe connection. In case of an open circuit or a short circuit D1 displays “Err1”;... -
Page 15: Service Fixture & Tools
7 Service Fixture & Tools 8 Disassembly and Assem- bly Instructions 7.1. TOOLS USED ? Phillips head screwdriver 8.1. CAUTION TO BE USE WHEN DISASSEMBLING THE OVEN 1. Always disconnect the oven from the mains before disassembling any part. If an all-pole disconnecting switch is provided, open the switch to disconnect the oven from the supply. -
Page 16: Oven Door
8.2. OVEN DOOR 8.3. GLASS PANELS AND DOOR HANDLE 1. Open completely the oven door and insert the pins provided with the appliance in the relevant holes on the 1. INNER GLASS PANEL sides of the hinges. Open the do or and l ock it with the spe cific pins (see above). -
Page 17: Oven Lamp
8.4. OVEN INTERNAL ELEMENTS 3. EXTERNAL GLASS PANEL AND OVENHANDLE Unscrew the two screws on the lower side of the door (TRAY SUPPORT, LAMP, FAN frame to release the external panel. COVER, OVEN FAN...) 8.4.1. TRAY SUPPORT (1) Tilt the tray support by pulling it to the center of the oven cavity and (2) slide it out in direction of the oven door. -
Page 18: Oven Fan
8.4.3. FAN COVER 8.5.2. REAR CASING Unscrew the screws at both sides of the oven fan baffle by Remove the two screws in the lower part of the rear casing, means of a phillips screwdriver and remove the baffle. unlock the snap-on coupling to release it from the side panels and remove the casing. - Page 19 8.6. DOOR MICROSWITCH 2. REMOVEING THE POWER BOARD Push gently backwards the plastic hooks locking the PCB 1. Hold the microswitch firmly and turn it 15° on its support, tilt it upwards and pull it out. counter-clockwise. 2. Then pull it out to release it from its support. 8.7.
- Page 20 8.8. COOLING FAN AND FAN DUCT 5. (1) Tilt the control panel lifting the lower eddge then. 1. Disconnect the wires running to the right-side oven lamp in order in order to facilitate the removal of the cooling fan duct. 2.
-
Page 21: Heating Elements
8.9. DOOR LOCK 8.10.2. GRILL+UPPER HEATING ELEMENT Access from the back of the oven: disconnect the wiring 1. DOOR LOCK Access from the oven cavity: remove with a Phillips screwdriver Remove the 3 screws shown in the picture with a Phillips the two screws shown in the picture. - Page 22 8.11. OVEN FAN MOTOR 8.10.4. LOWER HEATING ELEMENT Access from the back of the oven: disconnect the wiring, 1. Access from the back of the oven remove the screws shown in the picture with a Phillips screwdriver. using a flat head screwdriver (1) lift the locking tab (2) turn the motor counter-clockwise to release from its bayonet joint...
- Page 23 8.13. SAFETY THERMAL CUT-OUT AND DOOR LOCK THERMO- STAT Access from the back of the oven: disconnect the wiring, remove the screws shown in the picture using a Phillips screwdriver. Use the same procedure to remove door-lock thermostat. 8.14. THERMINAL BLOCK 1.
-
Page 24: Wiring Connection Diagram
9 Wiring Connection Diagram... -
Page 26: Exploded View And Replacement Parts List
10 Exploded View and Replacement Parts List 10.1. Exploded View:HL-BT62S... - Page 27 10.2. Replacement Parts List:HL-BT62S Safety Ref. No. Part No. Part Name & Description Q’ty Remarks 692533106 DOOR INNER GLASS ASSY 015450129 UPPER DOUBLE DUCT BULKEAD 011091834 BACK CASING 1598 795210929 SPIT MOTOR 1599 712773753 SPIT MOT.THERMOINSULATOR 1600 768414514 DOOR HANDLE SUPPORT...
- Page 28 Safety Ref. No. Part No. Part Name & Description Q’ty Remarks 97649 184931424 DOOR HANDLE 98178 899372122 OVEN DOOR SCREW M5X45 98179 897210529 DOOR HANDLE WASHER 98300 818731521 THERMOSTAT 200°C 98320 821291251 DISPLAY FLAT CABLE 98974 760570401 OVEN FIXING BUSHING 98975 758452389 CAP FOR OVEN FIX.BUSHING...
- Page 29 10.3. Exploded View:HL-BT62B...
- Page 30 10.4. Replacement Parts List:HL-BT62B Safety Ref. No. Part No. Part Name & Description Q’ty Remarks 692533106 DOOR INNER GLASS ASSY 015450129 UPPER DOUBLE DUCT BULKEAD 011091834 BACK CASING 1598 795210929 SPIT MOTOR 1599 712773753 SPIT MOT.THERMOINSULATOR 1600 768414514 DOOR HANDLE SUPPORT 18003 764290017 SPIT HANDLE...
- Page 31 Safety Ref. No. Part No. Part Name & Description Q’ty Remarks 97645 69373C318 FRONT PANEL 97649 184931424 DOOR HANDLE 98178 899372122 OVEN DOOR SCREW M5X45 98179 897210529 DOOR HANDLE WASHER 98300 818731521 THERMOSTAT 200°C 98320 821291251 DISPLAY FLAT CABLE 98974 760570401 OVEN FIXING BUSHING 98975...
