Panasonic KT9 Instruction Manual

Hide thumbs Also See for KT9:
Table of Contents

Advertisement

Quick Links

TEMPERATURE CONTROLLER
KT9
INSTRUCTION MANUAL

Advertisement

Table of Contents
loading

Related Manuals for Panasonic KT9

Summary of Contents for Panasonic KT9

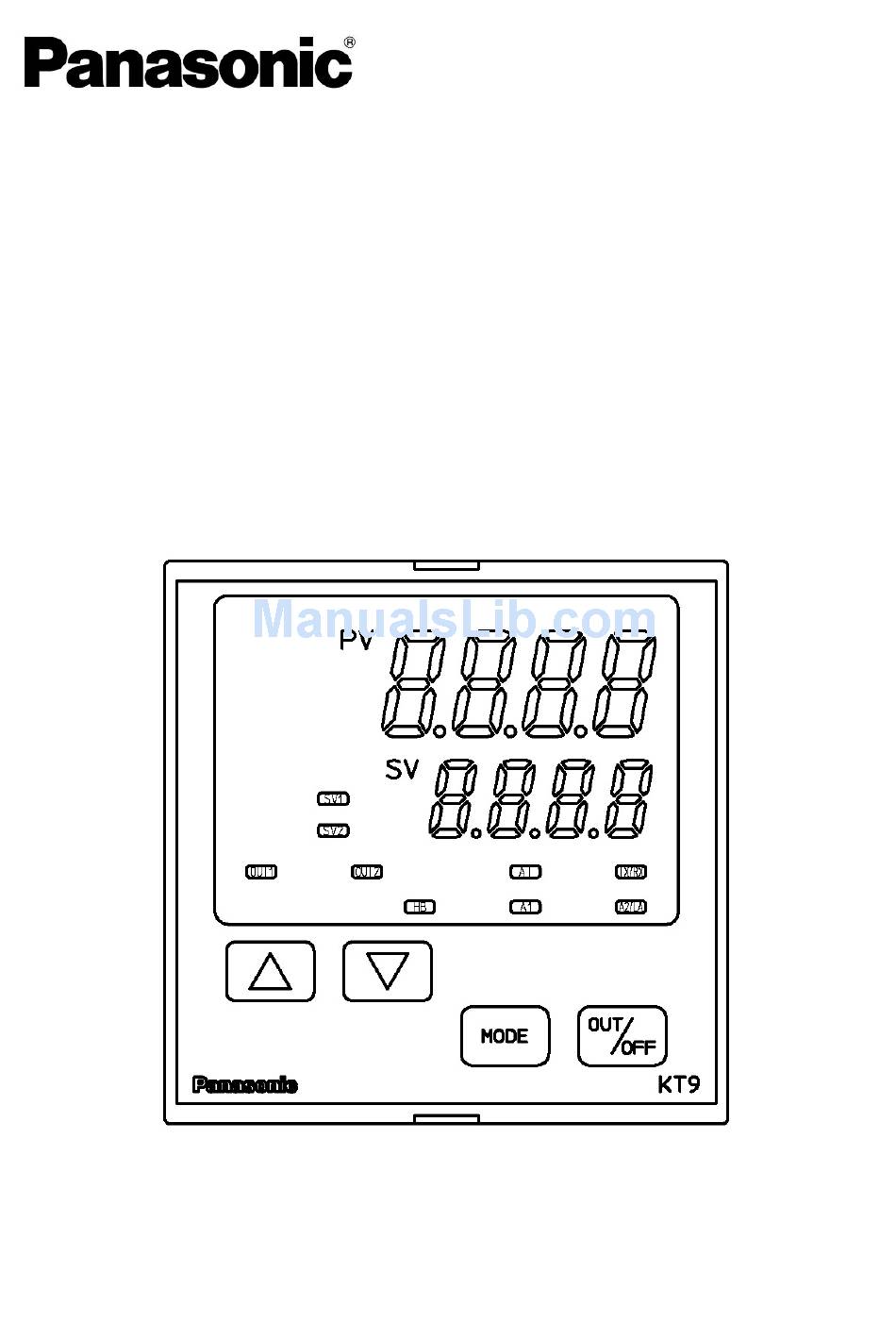

  • Page 1 TEMPERATURE CONTROLLER INSTRUCTION MANUAL...

  • Page 2: Safety Precautions

    • Any unauthorized transfer or copying of this document, in part or in whole, is prohibited. • Panasonic Industrial Devices SUNX Co., Ltd. is not responsible for any damage or secondary damage(s) incurred as a result of using this product, including any indirect damage.
  • Page 3 Caution • Use the solderless terminal with an insulation sleeve that fits in the M3 screw when wiring the KT9 Series. • The terminal block of this instrument is designed to be wired from the left side. The lead wire must be inserted from the left side of the terminal, and fastened with the terminal screw.

  • Page 4: Table Of Contents

    CONTENTS 1. Model number 1.1 Explanation of model number ---------------------------------------------------- 6 1.2 Rated input ---------------------------------------------------------------------------- 7 1.3 How to read the rated label ------------------------------------------------------- 7 2. Name and functions of the sections ------------------------------------ 8 3. Mounting to the control panel 3.1 Site selection ----------------------------------------------------------------------- 10 3.2 External dimensions (Unit: mm) ----------------------------------------------- 10 3.3 Panel cutout (Unit: mm) ---------------------------------------------------------- 10...
  • Page 5 CONTENTS OUT1 high limit ---------------------------------------------------------------------- 23 OUT1 low limit ----------------------------------------------------------------------- 23 OUT1 ON/OFF action hysteresis ----------------------------------------------- 23 OUT2 action mode ----------------------------------------------------------------- 23 OUT2 high limit ---------------------------------------------------------------------- 24 OUT2 low limit ----------------------------------------------------------------------- 24 Overlap band/Dead band --------------------------------------------------------- 24 OUT2 ON/OFF action hysteresis ----------------------------------------------- 24 A1 type -------------------------------------------------------------------------------- 24 A2 type -------------------------------------------------------------------------------- 25 A1 action Energized/Deenergized --------------------------------------------- 25...

  • Page 6: Model Number

    1. Model number 1.1 Explanation of model number A K T 9 (1) (2) (3) (4) (5) (6) (7) (1) Supply voltage ---------------------- 1: 100 to 240V AC 2: 24V AC/DC (2) Input type ----------------------------- 1: Multi-input (Thermocouple, RTD, DC current and DC voltage can be selected by keypad operation.

  • Page 7: Rated Input

    1.2 Rated input Input type Input range Resolution –200 to 1370 –320 to 2500 1 ( ) –199.9 to 400.0 –199.9 to 750.0 0.1 ( ) –200 to 1000 –320 to 1800 1 ( ) 0 to 1760 0 to 3200 1 ( ) 0 to 1760 0 to 3200...

  • Page 8: Name And Functions Of The Sections

    2. Name and functions of the sections (10) (11) (14) (15) (12) (13) (Fig. 2-1) (1) PV display Indicates the PV (process variable) with a red LED. (2) SV display Indicates the SV (main set value) or MV (manipulated variable) with a green LED. (3) SV1 indicator The green LED lights when SV1 is selected.
  • Page 9 (8) AT indicator The yellow LED flashes during auto-tuning or auto-reset. (9) TX/RX indicator The yellow LED flashes during Serial communication. (10) A1 indicator When A1 output is on, the red LED lights. (11) A2/LA indicator When A2 output is on, the red LED lights. (12) Increase key: Increases the numeric value.

  • Page 10: Mounting To The Control Panel

    3. Mounting to the control panel 3.1 Site selection This instrument is intended to be used under the following environmental conditions (IEC61010-1): Overvoltage category , Pollution degree 2 Ensure the mounting location corresponds to the following conditions: (1) A minimum of dust, and an absence of corrosive gases (2) No flammable, explosive gases (3) No mechanical vibrations or shocks (4) No exposure to direct sunlight, an ambient temperature of 0 to 50...

  • Page 11: Ct (Current Transformer) External Dimensions (Unit: Mm)

    3.4 CT (Current transformer) external dimensions (Unit: mm) AKT4815 (for 5A, 10A and 20A) AKT4816 (for 50A) (Fig. 3.4-1) 3.5 Mounting Notice As the case is made of resin, do not use excessive force while screwing in the mounting bracket, or the case or screw type mounting bracket could be damaged. The torque should be 0.12N•m.

  • Page 12: Wiring

    4. Wiring Warning Turn the power supply to the instrument off before wiring or checking. Working on or touching the terminal with the power switched on may result in severe injury or death due to Electric Shock. Moreover, the instrument must be grounded before the power supply to the instrument is turned on.

  • Page 13: Wiring Examples

    Notice • The terminal block of KT9 series is designed to be wired from the left side. The lead wire must be inserted from the left side of the terminal, and fastened with the terminal screw. • Dotted lines show options.
  • Page 14 [Heater burnout alarm output] (1) This alarm is not available for detecting Solder the CT and wires connected heater current under phase control. to the CT input terminals. (2) This alarm is not available for detecting (There is no polarity.) 3-phase heater current.

  • Page 15: Setup

    5. Setup For the thermocouple and RTD input, the sensor input characters and temperature unit are indicated on the PV display and the input range high limit value is indicated on the SV display for approx. 3 seconds after the power is turned on. See (Table 5-1). For DC input, the sensor input characters are indicated on the PV display and the scaling high limit value is indicated on the SV display.

  • Page 16: Operation Flowchart

    5.1 Operation flow chart Alarm 1 (A1) setting procedure [Numbers (1) to (5) are indicated on the flow chart.] Outline of operation procedure (1) [A1 type]: Select an alarm type [If an alarm type except for is selected, items (2) to (5) Operation before running are indicated and they can be set if necessary.] [Step 1 Initial setting]...
  • Page 17 Alarm type Input type (character indication) and range –200 to 1370 : –320 to 2500 High limit alarm: The alarm action is deviation setting from the SV. The alarm is activated –199.9 to 400.0 : –199.9 to 750.0 : if the input value reaches the high limit set value. Character indication: –200 to 1000 –320 to 1800 Low limit alarm: The alarm action is...

  • Page 18: Sv1

    5.2 Main setting mode The main setting mode can be selected by pressing the key. The SV can be increased or decreased by pressing the key. The SV is registered by pressing the key, and the unit reverts to the PV/SV display mode.

  • Page 19: Out1 Proportional Band

    [Auto-reset] • If auto-reset “Perform” is selected and the key is pressed, the AT indicator flashes and the unit reverts to the PV/SV display mode. • If auto-reset is performed, offset correction immediately starts. • To prevent key misoperation, other settings cannot be performed for 4 minutes after auto-reset starts.

  • Page 20: A1 Value

    A1 value setting • Sets the action point for A1 output. Setting the value to 0 or 0.0 disables the function. (excluding Process high and Process low alarm) • Not available if No alarm action is selected during A1 type selection. •...

  • Page 21: Set Value Lock

    Character Default value Name, Function, Setting range (SV display) (PV display) Set value lock selection Unlock • Locks the set value to prevent setting errors The setting item to be locked depends on the selection. • PID auto-tuning or auto-reset does not work if Lock 1 or Lock 2 is selected. •...

  • Page 22: Parity

    Parity selection Even parity • Selects the parity. • Not available if Serial communication (option) is not added or is selected during Communication protocol selection. • No parity: , Even parity: , Odd parity: Stop bit selection • Selects the stop bit. •...

  • Page 23: Scaling High Limit

    Scaling high limit setting 9999 • Sets scaling high limit value. • Available only for the DC input • Setting range: Scaling low limit value to input range high limit value (The placement of the decimal point follows the selection) Scaling low limit setting –1999 •...

  • Page 24: Out2 High Limit

    OUT2 high limit setting 100% • Sets the high limit value of OUT2. • Not available if OUT2 is ON/OFF action or if Heating/Cooling control (option) is not applied • Setting range: OUT2 low limit value to 105% (Setting higher than 100% is effective to DC current output type.) OUT2 low limit setting •...

  • Page 25: A2 Type

    A2 type selection No alarm action • Selects A2 type. • Available only when A2 (option) is applied • The selecting item is the same as those of A1 type selection. A1 action Energized/Deenergized selection Energized • Selects A1 action Energized/Deenergized. •...

  • Page 26: Direct/Reverse Action

    Direct/Reverse control action selection Reverse • Selects either Direct (Cooling) or Reverse (Heating) (Heating) action control action. • Selecting item Reverse (Heating): Direct (Cooling): AT bias setting • Sets the bias value for performing PID auto-tuning. • Not available for DC input Available for PID action •...

  • Page 27: Control Output Off Function

    Energized/Deenergized function This function is not available for the Heater burnout alarm (optional). [If the alarm action Energized is selected] When the alarm output indicator is lit, the alarm output (terminals 7-8 or 12-13) is conducted (ON). When the alarm output indicator is unlit, the alarm output is not conducted (OFF).

  • Page 28: Running

    After the controller is mounted to the control panel and wiring is completed, operate the unit following the procedures below. (1) Turn the power supply to the KT9 Series ON. For approx. 3 seconds after the power is switched ON, sensor input characters and temperature unit are indicated on the PV display, and the input range high limit value is indicated on the SV display.

  • Page 29: Action Explanation

    7. Action explanation 7.1 OUT1 action Heating (reverse) action Cooling (direct) action Proportional band Proportional band Control action SV setting SV setting Relay contact output Cycle action is performed according to deviation. Cycle action is performed according to deviation. 12V DC 12/0V DC 0V DC 0V DC...

  • Page 30: Out1 On/Off Action

    7.3 OUT1 ON/OFF action Heating (reverse) action Cooling (direct) action Hysteresis Hysteresis Control action SV setting SV setting Relay contact output Non-contact 12V DC 0V DC 0V DC 12V DC voltage output DC current 20mA DC 20mA DC 4mA DC 4mA DC output Indicator...

  • Page 31: Out2 (Heating/Cooling Control) Action (Option)

    7.4 OUT2 (Heating/Cooling control) action (option) Heating P-band (Cooling P-band) Control Heaing (Cooling action action action) SV setting Relay contact output (OUT1) Cycle action is performed according to deviation. Relay contact output (OUT2) Cycle action is performed according to deviation. Non-contact 12V DC 12/0V DC...

  • Page 32: Out2 (Heating/Cooling Control) Action (When Setting Dead Band)

    7.5 OUT2 (Heating/Cooling control) action (when setting Dead band) Heating P-band Dead band (Cooling P-band) Heatng (Cooling Control action action action) SV setting Relay contact output (OUT1) Cycle action is performed according to deviation. Relay contact output (OUT2) Cycle action is performed according to deviation. Non-contact 12V DC 12/0V DC...

  • Page 33: Out2 (Heating/Cooling Control) Action (When Setting Overlap Band) -33

    7.6 OUT2 (Heating/Cooling control) action (when setting Overlap band) Heating P-band Cooling P-band Overlap band Control action Heating (Cooling action action) SV setting Relay contact output (OUT1) Cycle action is performed according to deviation. Relay contact output (OUT2) Cycle action is performed according to deviation. Non-contact 12V DC 12/0V DC...

  • Page 34: A1, A2 Action

    7.7 A1, A2 action High limit alarm Low limit alarm A1 hysteresis A1 hysteresis Alarm action + A1 SV setting SV setting + A1 set point set point set point set point High/Low limits alarm High/Low limit range alarm A1 hysteresis A1 hysteresis Alarm action SV setting...

  • Page 35: Sv1/Sv2 External Selection

    7.8 SV1/SV2 external selection action SV1/SV2 external selection Indicator Green Unlit Unlit 8. Control action explanations 8.1 PID (1) Proportional band (P) Proportional action is the action during which the control output varies in proportion to the deviation between the SV and the PV (processing temperature). If the proportional band is narrowed, even if the output changes by a slight variation of the processing temperature, better control results can be obtained as the offset decreases.

  • Page 36: Auto-Reset (Offset Correction)

    (B) In the case of a stable control The AT process will fluctuate around the SV. (1) Calculating PID constant (2) PID constant calculated (3) Controlled by the PID Temperature constant set by auto-tuning Time AT starting point (Fig. 8.2-2) (C) In the case of a large difference between the SV and processing temperature as the temperature is falling AT process will fluctuate...

  • Page 37: Specifications

    9. Specifications 9.1 Standard specifications Mounting : Flush Setting : Membrane sheet key Display PV display : Red LED 4 digits, character size, 18 x 8 (H x W)mm SV display : Green LED 4 digits, character size, 13.2 x 6 (H x W)mm Accuracy (Setting, indication) Thermocouple : Within 0.2% of each input span...

  • Page 38: Thermocouple, Rtd Input: 0.1 To 100.0

    Input Thermocouple : K, J, R, S, B, E, T, N, PL- , C (W/Re5-26) External resistance, 100 or less, however, for B, 40 or less : Pt100, JPt100, 3-wire system Allowable input lead wire resistance, 10 or less per wire DC current : 0 to 20mA DC, 4 to 20mA DC Input impedance, 50...

  • Page 39: Burnout Alarm Output

    • ON/OFF action: When OUT1 proportional band is set to 0 OUT1 proportional band (P) Thermocouple: 0 to 1000 (0 to 2000 ) RTD: 0.0 to 999.9 (0.0 to 999.9 ) DC current, voltage: 0.0 to 100.0% (ON/OFF action when set to 0 ( ), 0.0 ( ) or 0.0%) Integral time (I) : 0 to 1000sec (Off when set to 0) Derivative time (D)

  • Page 40: Input

    Dielectric strength Between input terminal and ground terminal, 1.5kV AC for 1 minute Between input terminal and power terminal, 1.5kV AC for 1 minute Between output terminal and ground terminal, 1.5kV AC for 1 minute Between output terminal and power terminal, 1.5kV AC for 1 minute Between power terminal and ground terminal, 1.5kV AC for 1 minute Weight : Approx.
  • Page 41 • DC input Indication range : [Scaling low limit value – Scaling span x 1%] to [Scaling high limit value + Scaling span x 10%] However, if the input value goes out of the range –1999 to 9999, the PV display flashes “ ”...

  • Page 42: Optional Specifications

    Accessories included: Instruction manual 1 copy Screw type mounting brackets 1 set CT (current transformer) For rating 5A, 10A, 20A : AKT4815 1 piece For rating 50A : AKT4816 1 piece Accessories sold separately: Terminal cover (AKT9801) 1 piece shunt resistor (AKT4810) 1 piece 9.2 Optional specifications Alarm 2 (A2) When A2 action is set as Energized, the alarm action point is set by...

  • Page 43: Troubleshooting

    OUT2 ON/OFF action hysteresis: Thermocouple, RTD input: 0.1 to 100.0 DC current, voltage input: 1 to 1000 (The placement of the decimal point follows the selection) Output Relay contact, 1a Control capacity, 3A 250V AC (resistive load) 1A 250V AC (inductive load cosø=0.4) Electrical life, 100,000 cycles Non-contact voltage output V DC maximum 40mA (short circuit protected)

  • Page 44: Indication

    10.1 Indication Problem Presumed cause and solution The PV display is • Control output OFF function is working. indicating [ Press the OUT/OFF key for approx. 1 second to release the function. • Burnout of thermocouple, RTD or disconnection of DC voltage ] is flashing (0 to 1V DC).

  • Page 45: Key Operation

    Problem Presumed cause and solution • Check whether the input signal wire for DC voltage The value set during (0 to 5V DC, 0 to 10V DC) or DC current (0 to 20mA DC) the Scaling low limit is disconnected. setting remains on the How to check whether the input signal wire is disconnected PV display.

  • Page 46: Control

    10.3 Control Problem Presumed cause and solution Temperature does • The sensor is out of order. not rise. Replace the sensors. • Check whether the sensor is securely mounted to the instrument input terminal. Check whether control output terminals are securely mounted to the actuator input terminals.
  • Page 47 [Auxiliary function setting mode 1] Character Setting item Default value Data Set value lock Unlock SV high limit 1370 SV low limit –200 Sensor correction Modbus ASCII Communication protocol Instrument number Communication speed 9600bps Parity Even Stop bit [Auxiliary function setting mode 2] Character Setting item Default value...
  • Page 48 Phone: +81-568-33-7861 FAX: +81-568-33-8591 About our sale network, please visit our website. PRINTED IN JAPAN © Panasonic Industrial Devices SUNX Co., Ltd. 2012 Pursuant to the directive 2004/108/EC, article 9(2) Panasonic Electric Works Europe AG Rudolf-Diesel-Ring 2 83607 Holzkirchen, Germany This product has been developed / produced for industrial use only.
