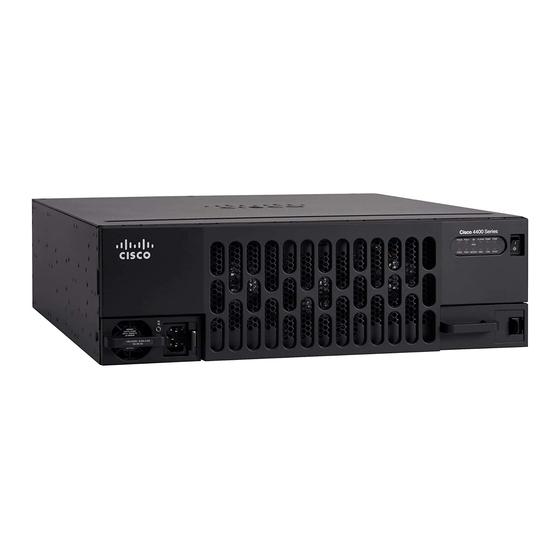

Cisco 4000 series Installation Manual
Rack-mount and wall-mount
Hide thumbs
Also See for 4000 series:
- Hardware installation manual (206 pages) ,
- Upgrade manual (24 pages) ,
- Manual (52 pages)
Advertisement
Quick Links
Download this manual
See also:
Manual
Doc. No.
78-1009-03
Cisco 4000 Series Rack-Mount and Wall-Mount
Installation
Cisco Product Numbers: ACS-NPRM, ACS-NPWM
This document contains instructions for mounting your Cisco 4000, Cisco 4000-M, Cisco 4500,
Cisco 4500-M, Cisco 4700, or Cisco 4700-M router in a standard 19-inch rack, in a 19-inch telco
rack, or on a wall.
This document contains the following sections:
•
•
•
•
•
•
•
•
•
•
Warning
cord is unplugged before working on the router.
Corporate Headquarters
Cisco Systems, Inc.
170 West Tasman Drive
San Jose, CA 95134-1706
USA
Copyright © 1992-1996
Cisco Systems, Inc.
All rights reserved.
Safety Recommendations
Safety with Electricity
Required Tools and Parts
Overview of Rack-Mount and Wall-Mount Procedures
Preparing the Chassis for Rack-Mounting or Wall-Mounting
Mounting the Chassis in a Standard Rack
Overview of Telco Rack-Mounting and Wall-Mounting
Mounting the Chassis in a Telco Rack
Mounting the Chassis Shell on a Wall
Cisco Connection Online
To ensure your safety and the safety of others, be sure the power is OFF and the power
1
Advertisement
Related Manuals for Cisco 4000 series
Summary of Contents for Cisco 4000 series
- Page 1 Cisco Product Numbers: ACS-NPRM, ACS-NPWM This document contains instructions for mounting your Cisco 4000, Cisco 4000-M, Cisco 4500, Cisco 4500-M, Cisco 4700, or Cisco 4700-M router in a standard 19-inch rack, in a 19-inch telco rack, or on a wall.
-
Page 2: Safety Recommendations
Safety Recommendations All warnings in this document appear in multiple languages in the appendix “Translated Note Safety Warnings” in the Cisco 4000 Series Installation Guide. Safety Recommendations Follow these guidelines to ensure general safety: • Keep the chassis area clear and dust-free during and after installation. -
Page 3: Required Tools And Parts
Overview of Rack-Mount and Wall-Mount Procedures The Cisco 4000 series routers can be mounted in a standard 19-inch rack, a telco 19-inch rack, or on a wall. The procedures for the different mounting options involve removing the front panel and component tray from the chassis shell and then installing the empty shell in position before reinserting the component tray. - Page 4 Old and New Versions of Chassis Shell Cisco 4000 series routers have two chassis versions. (See Figure 1.) In the old version of the chassis, the rack-mount and wall-mount brackets are secured to the chassis with tabs located on the inside of the chassis shell.
- Page 5 (See Figure 2.) Step 6 Supporting the component tray with one hand, push down on the safety latch tab while you pull out on the component tray. Cisco 4000 Series Rack-Mount and Wall-Mount Installation...
- Page 6 Figure 3 Component Tray Removal for Chassis Without a Safety Latch Chassis shell Chassis release screw CONSOLE INPUT 100-240VAC 50/60HZ 3.0-1.5 AMPS Handle Rear of chassis Support the component tray with your hand 6 Cisco 4000 Series Rack-Mount and Wall-Mount Installation...
- Page 7 The brackets provided with your kit fit both the early, tab-mount chassis shells and the newer Note screw-mount chassis shells. Figure 4 Standard Rack-Mount Bracket and Extender Front of the chassis Rack-mount bracket Rear of the chassis Long rear bracket extender Cisco 4000 Series Rack-Mount and Wall-Mount Installation...
- Page 8 (see Figure 7). Fasten the brackets to each side of the chassis shell with the M3 machine screws provided Step 2 (see Figure 8). 8 Cisco 4000 Series Rack-Mount and Wall-Mount Installation...
- Page 9 Front of the chassis shell M3 machine screw Figure 8 Standard Rack-Mount Bracket Installation in an Old Version of the Chassis Front of the chassis shell Rack-mount bracket M3 machine screw 10-32 machine screws Cisco 4000 Series Rack-Mount and Wall-Mount Installation...
- Page 10 8-32 flat-head machine screws Figure 10 Standard Rack-Mount Bracket Installation in a New Version of the Chassis Front of the chassis shell 10-32 machine 8-32 flat-head Rack-mount screws machine screws bracket 10 Cisco 4000 Series Rack-Mount and Wall-Mount Installation...
- Page 11 Retighten the chassis release screw. This completes the standard rack-mount procedure. Figure 11 Rear Bracket Extenders in a Standard 19-inch Rack 10-32 machine screws Equipment rack Bracket extenders Front of the equipment rack Cisco 4000 Series Rack-Mount and Wall-Mount Installation...
- Page 12 After the brackets have been installed into either the old, tab-mount version of the chassis, or the new screw-mount version of the chassis, the chassis is then ready for mounting in either a telco rack or on a wall. Figure 13 Telco Rack-Mount or Wall-Mount Bracket 12 Cisco 4000 Series Rack-Mount and Wall-Mount Installation...
- Page 13 Screw Locations for Telco Rack-Mount or Wall-Mount Brackets – Old Version of the Chassis Chassis shell M3 machine screw 19 x 19 x 1/2" or larger plywood board (if wall-mounted) Wood screws Front of the chassis Telco rack-mount or wall-mount bracket Cisco 4000 Series Rack-Mount and Wall-Mount Installation...
- Page 14 Screw Locations for Telco Rack-Mount or Wall-Mount Brackets – New Version of the Chassis Wood screws Chassis shell 19 x 19" or larger plywood board (if wall-mounted) 8-32 flat-head machine screws Front of the chassis Telco rack-mount or wall-mount bracket 14 Cisco 4000 Series Rack-Mount and Wall-Mount Installation...
- Page 15 (shown in Figure 1) with the thumb of your right hand. Retighten the chassis release screw. Step 7 This completes the telco rack-mount procedure. Figure 16 Telco Rack-Mounted Chassis Telco rack 10-32 machine screws M3 machine screw Front of the chassis Cisco 4000 Series Rack-Mount and Wall-Mount Installation...
- Page 16 “Preparing the Chassis for Rack-Mounting or Wall-Mounting” and “Overview of Telco Rack-Mounting and Wall-Mounting.” Choose the wall on which you will mount the Cisco 4000 chassis. When choosing a Step 2 location, consider cable lengths and limitations, and wall structure (see Figure 17).
- Page 17 Push on the back of the tray while at the same time pressing on the chassis release screw (shown in Figure 2 and Figure 3) with the thumb of your right hand. Retighten the chassis release screw. Step 10 This completes the wall-mount procedure. Cisco 4000 Series Rack-Mount and Wall-Mount Installation...
-
Page 18: Cisco Connection Online
This document is to be used in conjunction with the Cisco 4000 Series Installation Guide publication or the Cisco 4000 Series Hardware Installation and Maintenance publication. AtmDirector, Catalyst, CD-PAC, CiscoAdvantage, CiscoFusion, Cisco IOS, the Cisco IOS logo, CiscoLink, CiscoPro, CiscoRemote, Cisco Systems, CiscoView, CiscoVision, CiscoWorks,...
