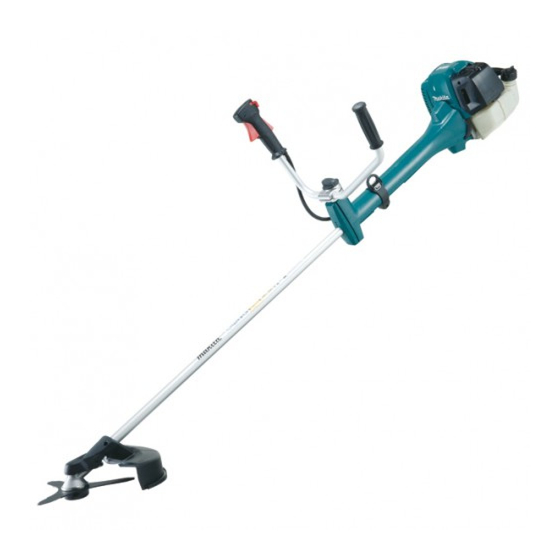

- Page 1 Petrol Brushcutter EM4351UH EM4350UH EM4350LH INSTRUCTION MANUAL EM4351UH EM4350UH EM4350LH Important: Read this instruction manual carefully before putting the Petrol Brushcutter into operation and strictly observe the safety regulations! Preserve instruction manual carefully!
-
Page 2: Table Of Contents
English (Original instructions) Thank you very much for purchasing the MAKITA Outdoor Power Equipment. Table of Contents Page We are pleased to recommend to you the MAKITA product which is the result of Symbols .................2 a long development program and many years of knowledge and experience. Safety instructions ............3 Please read this booklet which refers in detail to the various points that will demonstrate its outstanding performance. -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS General Instructions – Read this instruction manual to become familiar with handling of the equipment. Users insufficiently informed will risk danger to themselves as well as others due to improper handling. – It is recommended only to lend the equipment to people who have proven to be experienced. - Page 4 Start the brushcutter only in accordance with the instructions. – Do not use any other methods for starting the engine! – Use the brushcutter and the tools only for such applications as specified. – Only start the engine, after the entire assembly is done. Operation of the device is only permitted after all the appropriate accessories are attached! –...
- Page 5 Method of operation – Only use in good light and visibility. During the winter season beware of slippery or wet areas, ice and snow (risk of slipping). Always ensure a safe footing. – Never cut above waist height. – Never stand on a ladder. –...
- Page 6 Never straighten or weld damaged cutting tools. – Pay attention to the environment. Avoid unnecessary throttle operation for less pollution and noise emissions. Adjust the carburetor correctly. – Clean the equipment at regular intervals and check that all screws and nuts are well tightened.
-
Page 7: Technical Data
TECHNICAL DATA EM4351UH, EM4350UH, EM4350LH Model EM4351UH EM4350UH EM4350LH Handle type Bike handle Bike handle Loop handle Dimensions: length x width x height (without cutting tool) 1,812 x 618 x 528 1,812 x 635 x 460 1,812 x 339 x 250... -
Page 8: Designation Of Parts
DESIGNATION OF PARTS EM4351UH EM4350UH EM4350LH DESIGNATION OF PARTS Fuel tank Recoil starter Air cleaner I-O and throttle lock switch (on/off) Spark plug Exhaust muffler Clutch case Rear grip Hanger Handle Throttle lever Control cable Shaft Protector (Cutting tool guard) -
Page 9: Mounting Of Handle
Always wear protective gloves! CAUTION: Start the engine only after having assembled it completely. For model EM4351UH, EM4350UH Insert the shaft of the handle into the grip as shown. Grip Align the screw hole in the grip with the one in the shaft. -
Page 10: Mounting Of Protector
MOUNTING OF PROTECTOR To meet the applicable safety provisions, only the tool/protector combinations as indicated in the table must be used. Be sure to use genuine MAKITA metal blades (including Cutter blade Protector for metal blades saw blade and cutter blade) or nylon cutting head. –... - Page 11 – In use of the metal blade, fix the protector (3) to the clamp (2) with two bolts (1). NOTE: Tighten the right and left bolts evenly so that the gap between the clamp (2) and the protector (3) will be constant. Otherwise, the protector sometimes may not function as specified.
-
Page 12: Mounting Of Metal Blade Or Nylon Cutting Head
MOUNTING OF METAL BLADE OR NYLON CUTTING HEAD Be sure to use genuine MAKITA metal blades or nylon cutting head. – The metal blade must be well polished, free of cracks or breakage. If the metal blade hits against a stone during operation, stop the engine and check the blade immediately. -
Page 13: Before Start Of Operation
BEFORE START OF OPERATION Inspection and refill of engine oil – Perform the following procedure, with the engine cooled down. – Assure that the engine is on a flat horizontal surface and confirm if the oil level is between the lower or upper limit of the oil indicator. –... - Page 14 Note • Do not replace oil with the engine in a tilted position. • Filling with oil while engine is tilted leads to overfilling which causes oil contamination and/or white smoke. After refilling oil – Wipe with a rag any spilled oil immediately. REFUELING Handling of fuel It is necessary to handle fuel with utmost care.
-
Page 15: Correct Handling Of Machine
