b. Clock synchronization
In the I C bus mode, in order to wired-AND a bus, a master device which pulls
2
down a clock line to low level, in the first place, invalidate a clock pulse of
another master device which generates a high-level clock pulse. The master
device with a high-level clock pulse needs to detect the situation and implement
the following procedure.
The TMP91C824 has a clock synchronization function for normal data transfer
even when more than one master exists on the bus.
The example explains the clock synchronization procedures when two masters
simultaneously exist on a bus.

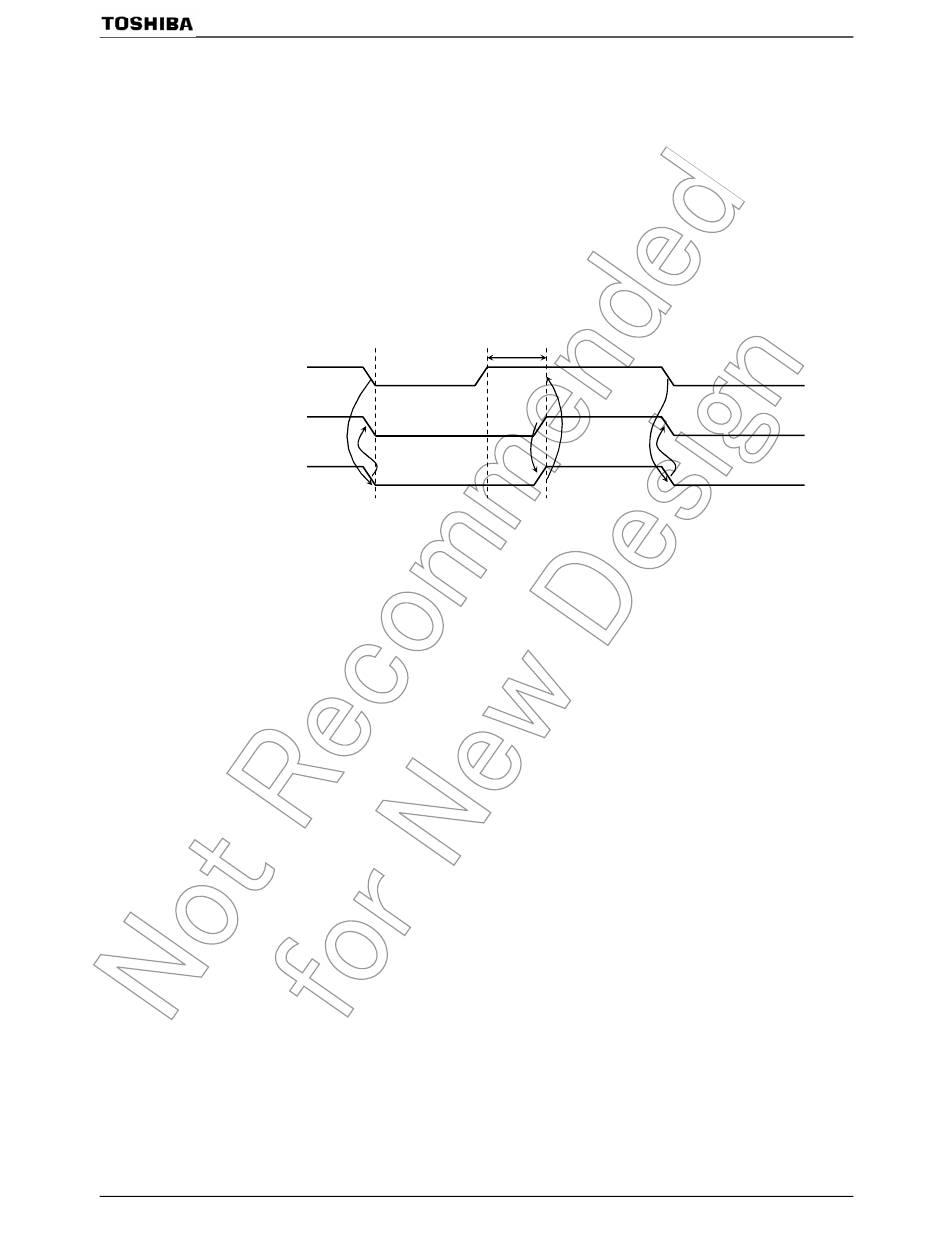

Internal SCL output
(Master A)
Internal SCL output
(Master B)
SCL line
Figure 3.10.8 Clock Synchronization
As master A pulls down the internal SCL output to the low level at point a, the
SCL line of the bus becomes the low level. After detecting this situation, master
B resets a counter of high-level width of an own clock pulse and sets the internal
SCL output to the low level.
Master A finishes counting low-level width of an own clock pulse at point b and
sets the internal SCL output to the high level. Since master B holds the SCL line
of the bus at the low level, master A wait for counting high-level width of an own
clock pulse. After master B finishes counting low-level width of an own clock
pulse at point c and master A detects the SCL line of the bus at the high level,
and starts counting high level of an own clock pulse. The clock pulse on the bus
is determined by the master device with the shortest high-level width and the
master device with the longest low-level width from among those master devices
connected to the bus.
(4) Slave address and address recognition mode specification
When the TMP91C824 is used as a slave device, set the slave address <SA6:0> and
<ALS> to the I2C0AR. Clear the <ALS> to 0 for the address recognition mode.
(5) Master/slave selection
Set the SBI0CR2<MST> to 1 for operating the TMP91C824 as a master device.
Clear the SBI0CR2<MST> to 0 for operation as a slave device. The <MST> is cleared
to 0 by the hardware after a stop condition on the bus is detected or arbitration is lost.
Wait counting high-level
width of a clock pulse
Start counting high-level width of a clock pulse
Reset a counter of
high-level width of
a clock pulse
a b c
