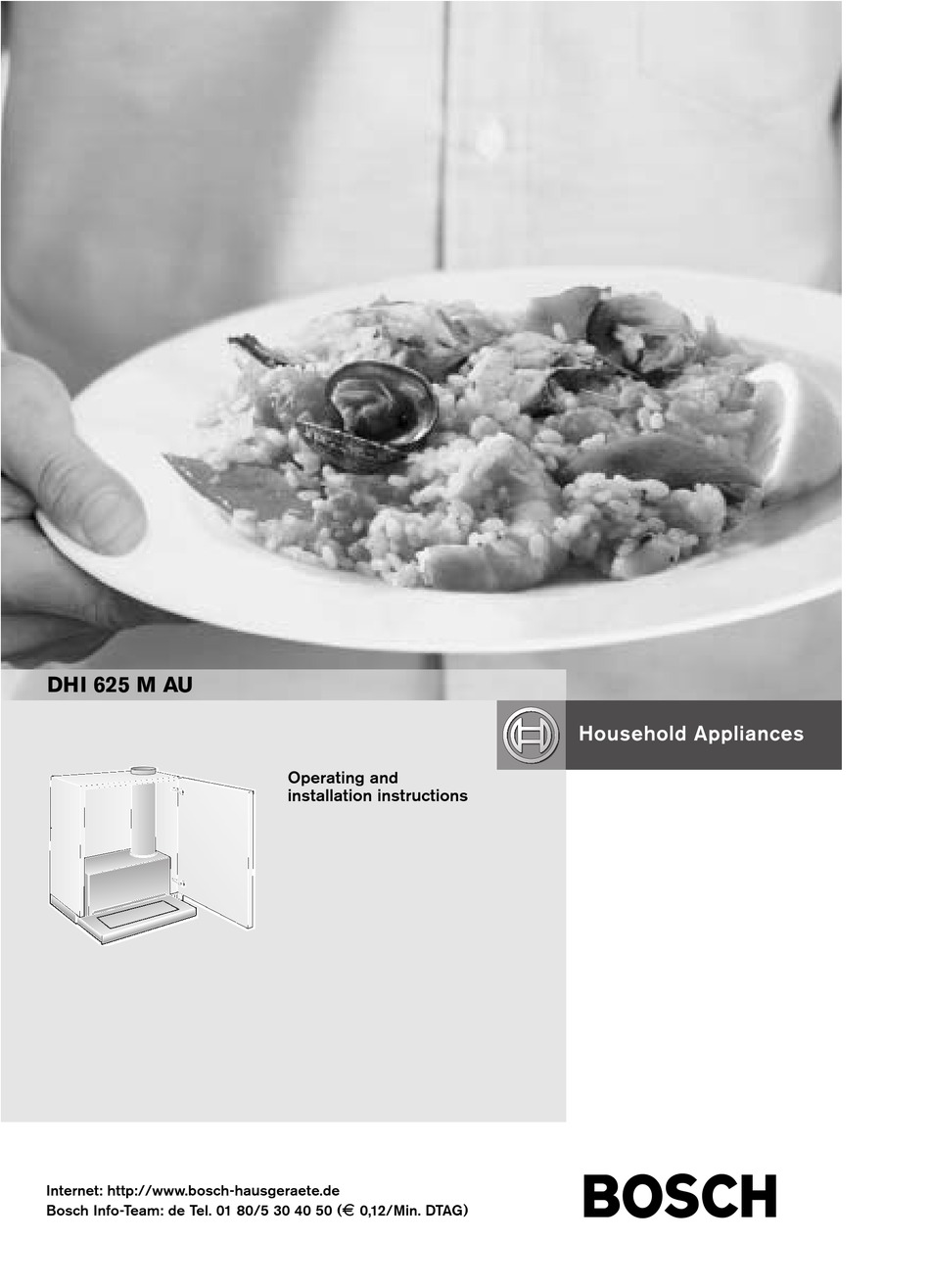

- Page 1 DHI 625 M AU Operating and installation instructions Internet: http://www.bosch-hausgeraete.de Bosch Info-Team: de Tel. 01 80/5 30 40 50 (E 0,12/Min. DTAG)
- Page 2 Fig. 1 Abb. 1 ELECTR. min. 430 min. 650...
-
Page 3: Appliance Description
Instructions for use: Appliance description Operating modes This can be achieved if combustion air can flow through non-lockable openings, e.g. in doors, windows and via the air- intake/exhaust-air wall box or by other technical measures, such as reciprocal interlocking, etc. If the air intake is inadequate, there is a risk of poisoning from combustion gases which are drawn back into the room. -
Page 4: Before Using For The First Time
Before using for the first time Important notes: Before using your appliance for the first The Instructions for Use apply to several time, please read these Instructions for versions of this appliance. Accordingly, Use carefully. They contain important you may find descriptions of individual information concerning your personal features that do not apply to your safety as well as on use and care of the... -
Page 5: If You Encounter A Problem
How to operate the extractor hood The most effective method of removing Light: vapours produced during cooking is to: Switch the ventilator ON as soon as you begin cooking. Switch the ventilator OFF a few minutes after you have finished cooking. -
Page 6: Filters And Maintenance
Filters and maintenance Various types of grease filter can be Renewing the fleece filter: used to absorb the grease contained in Under normal operating conditions the vapours produced during cooking. (1 to 2 hours per day), the fleece filter will The filter frame must be detached before require replacing after 8 to 10 weeks. - Page 7 Filters and maintenance The filter can be cleaned in a 3. Hook the activated carbon filter into the dishwasher. left-hand side of the extractor hood This can however cause slight housing, push the other side upwards discoloration. and secure in place with the wing nut. Important: Metal filters that are heavily saturated with grease should not be cleaned at the...
-
Page 8: Cleaning And Care
Cleaning and care Disconnect the extractor hood from the For appliances with a glass plate in the pull-out vapour extractor: electricity supply by pulling out the mains plug or switching it off at the fuse box. The glass plate is easily removed and At the same time as you clean the can be cleaned in a dishwasher. -
Page 9: Installation Instructions
Installation Instructions: Important information Additional information concerning gas Old appliances are not worthless cookers: rubbish. Valuable raw materials can be reclaimed by recycling old appliances. When installing gas hotplates, comply Before disposing of your old appliance, with the relevant national statutory render it unusable. -
Page 10: Prior To Installation
Prior to installation Exhaust-air mode The exhaust air is discharged upwards This can be achieved if the combustion air through a ventilation shaft or directly is able to flow through non-lockable through the outside wall into the open. openings, e.g. in doors, windows and in conjunction with an air supply/air-intake wall Exhaust air must not be discharged via box or by other technical procedures such... - Page 11 Prior to installation Exhaust air flows upwards: For optimum extractor hood efficiency: Cut a hole in the top of the wall cupbo- Short, smooth air exhaust pipe. ard, including a groove for the mains As few bends in the pipe as possible. cable.
- Page 12 Preparing the wall cupboard Ensure that there is a minimum gap To do this, move the mounting points between hob and extractor hood of 650 further towards the back by the mm (for gas hobs) or 430 mm (for electric corresponding distance.
- Page 13 Installation inside the wall cupboard 1. Align the cupboard doors if the hinges 4. Install a shelf immediately above the will no longer be accessible after the extractor hood. Cut holes for the pipe extractor hood has been fitted. connection and the mains cable. 2.
- Page 14 Installation inside the wall cupboard 8. Cut the wall masking strip down to size if Attaching a handle to the vapour necessary and screw it onto the wall extractor: cupboard. A handle can be attached to the vapour extractor. This handle can either be a wooden strip that matches the kitchen cupboards or a the handle that is available as an optional accessory (see...
-
Page 15: Electrical Connection
Installation inside the wall Electrical connection cupboard WARNING: THIS APPLIANCE MUST BE EARTHED Note: The extractor hood housing inside IMPORTANT: Fitting a Different Plug: the wall cupboard can be boarded up (e.g. The wires in the mains lead are coloured in with chipboard). - Page 16 DHZ 2100 DHZ 3200 DHZ 3105 299600 DHZ 3350 084848 9000 021 954 Robert Bosch Hausgeräte GmbH Printed in Germany 0804 Es.
