Identifying panel features
Identify the following panel features before you install the jukebox (see
and
Front panel features and descriptions
1
2

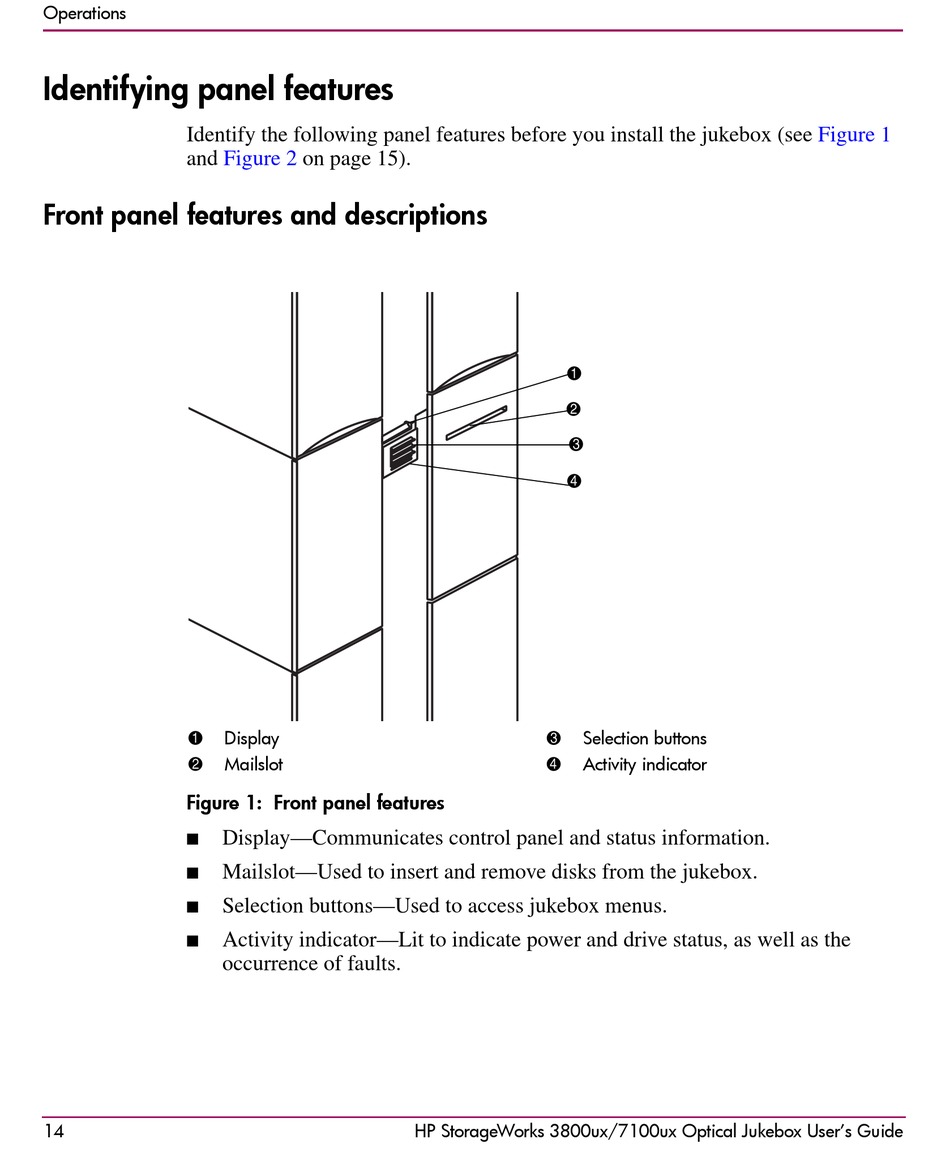

Figure 1: Front panel features
14
Figure 2
on page 15).
Display
Mailslot
Display—Communicates control panel and status information.
Mailslot—Used to insert and remove disks from the jukebox.
Selection buttons—Used to access jukebox menus.
Activity indicator—Lit to indicate power and drive status, as well as the
occurrence of faults.
1
2
3
4
Selection buttons
3
Activity indicator
4
HP StorageWorks 3800ux/7100ux Optical Jukebox User's Guide
Figure 1
