The Add/Edit VLAN Information Page contains the following fields:
Field
VID
VLAN Name
Unit
Untag Port
Tag Port
Forbidden Port
Not Member
Port Select All
3. Define the VID, VLAN Name, and port-related fields.
4. Select the Tagged, Untagged, and Forbidden ports.
5. Click
To modify a VLAN:
1. Click L2 Features > 802.1Q VLAN. The VLAN Configuration Page opens:
2. Select a VLAN in the VLAN Table.
3. Click
4. Modify the VLAN parameters.
5. Click

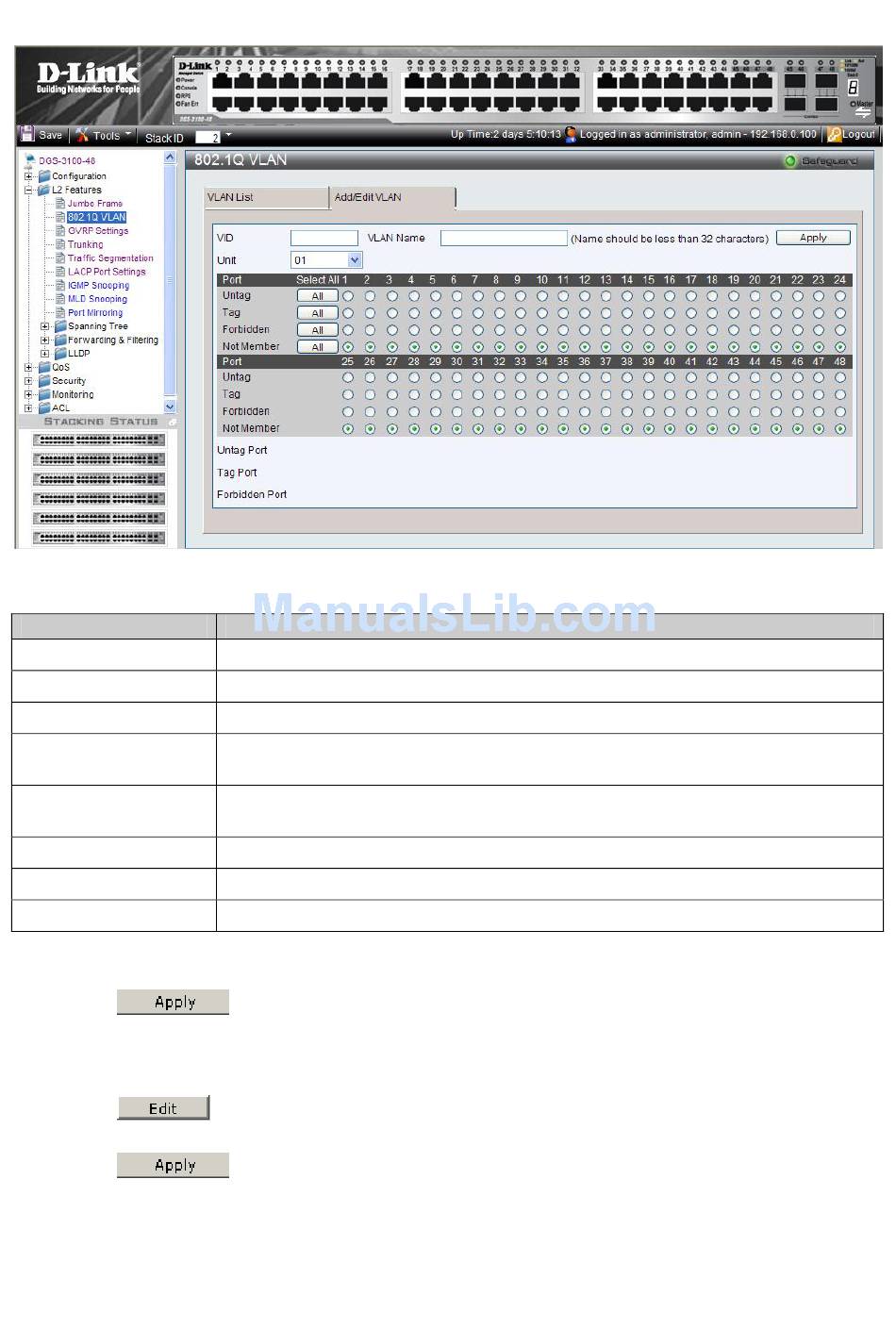

Figure 3–6. Add/Edit VLAN Information Page
Description
Defines the VLAN ID.
Defines the user-defined VLAN name. The field ranges up to 32 characters.
Defines the stacking member for which the VLAN parameters are displayed.
Defines the interface is an untagged VLAN member. Packets forwarded by the interface are
untagged.
Defines the interface is a tagged member of a VLAN. All packets forwarded by the
interface are tagged. The packets contain VLAN information.
Defines the interface VLAN membership, even if GVRP indicates the port is to be added.
Indicates that the interface is not a member of the VLAN.
Selects all ports and either untags, tags, excludes, or removes the VLAN membership.
. The VLAN is saved, and the device is updated.
. The configured VLAN parameters are displayed in the Add/Edit VLAN Information section.
. The VLAN information is modified, and the device is updated.
DGS-3100 Series Gigabit Stackable Managed Switch User Manual
68
