The Rule Detail Page contains the following fields:
Field
Profile ID
Source MAC
Destination MAC
Ether Type
Access ID
Type
VLAN Name
Destination MAC Address
Source MAC Address
Ether Type
Ports
Action
Time Range
Range Name
191

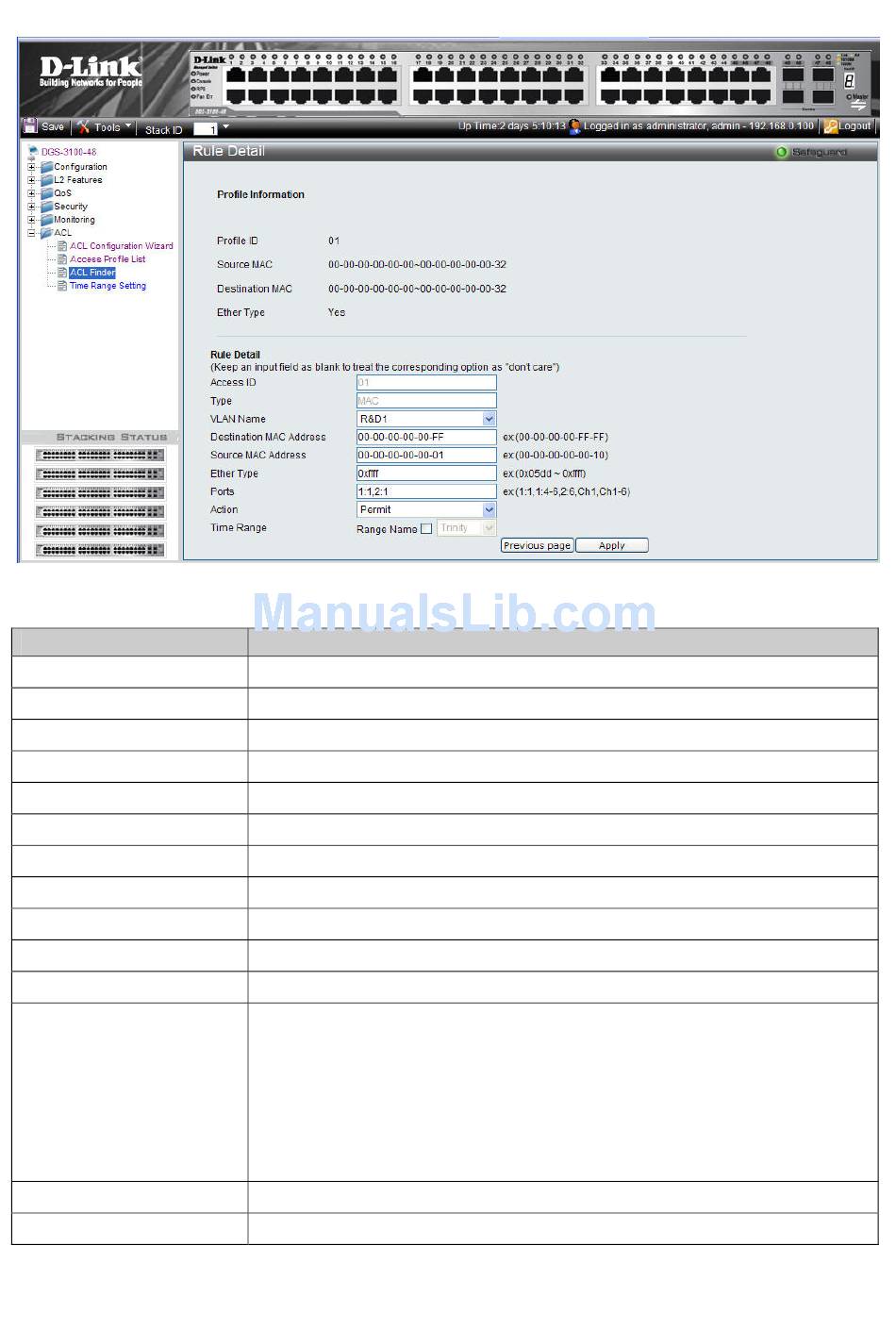

Figure 8-23 Rule Detail Page
Description
Displays the profile ID range.
Displays the Source MAC range.
Displays the destination MAC range.
Displays if Ether Type is included.
Defines the Access ID
Displays the profile type (can be MAC based or IP based).
Defines the user-defined VLAN name.
Matches the destination MAC address to which packets will be subject to action.
Matches the source MAC address to which packets will be subject to action.
Defines the code type used.
Indicates the ports or LAGs for which rules are sought.
Defines the action for the profile. The possible fields are:
Permit — Forwards packets if all other ACL criteria are met.
Deny — Drops packets if all other ACL criteria is met.
Rate Limiting — Rate limiting is activated if all other ACL criteria are met.
Change 1P priority — VPT (CoS) value is changed if all other ACL criteria is met.
Replace DSCP — Reassigns a new DSCP value to the packet if all other ACL
criteria are met.
Specifies whether the access rule is time-based.
Selects the user-defined time range name to apply to the access rule.
