Sony FCB-EV7300 Technical Manual

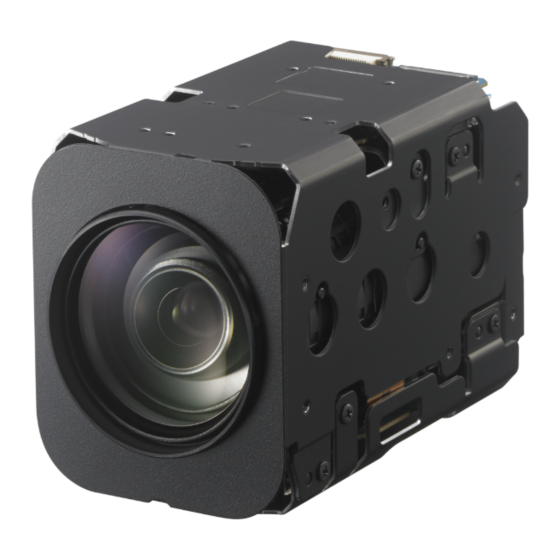

Color camera module
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
A-EW1-100-13(1)
Color Camera Module
Technical Manual
FCB-EV7300
 2014 Sony Corporation

Advertisement

Table of Contents
loading

Related Manuals for Sony FCB-EV7300

Summary of Contents for Sony FCB-EV7300

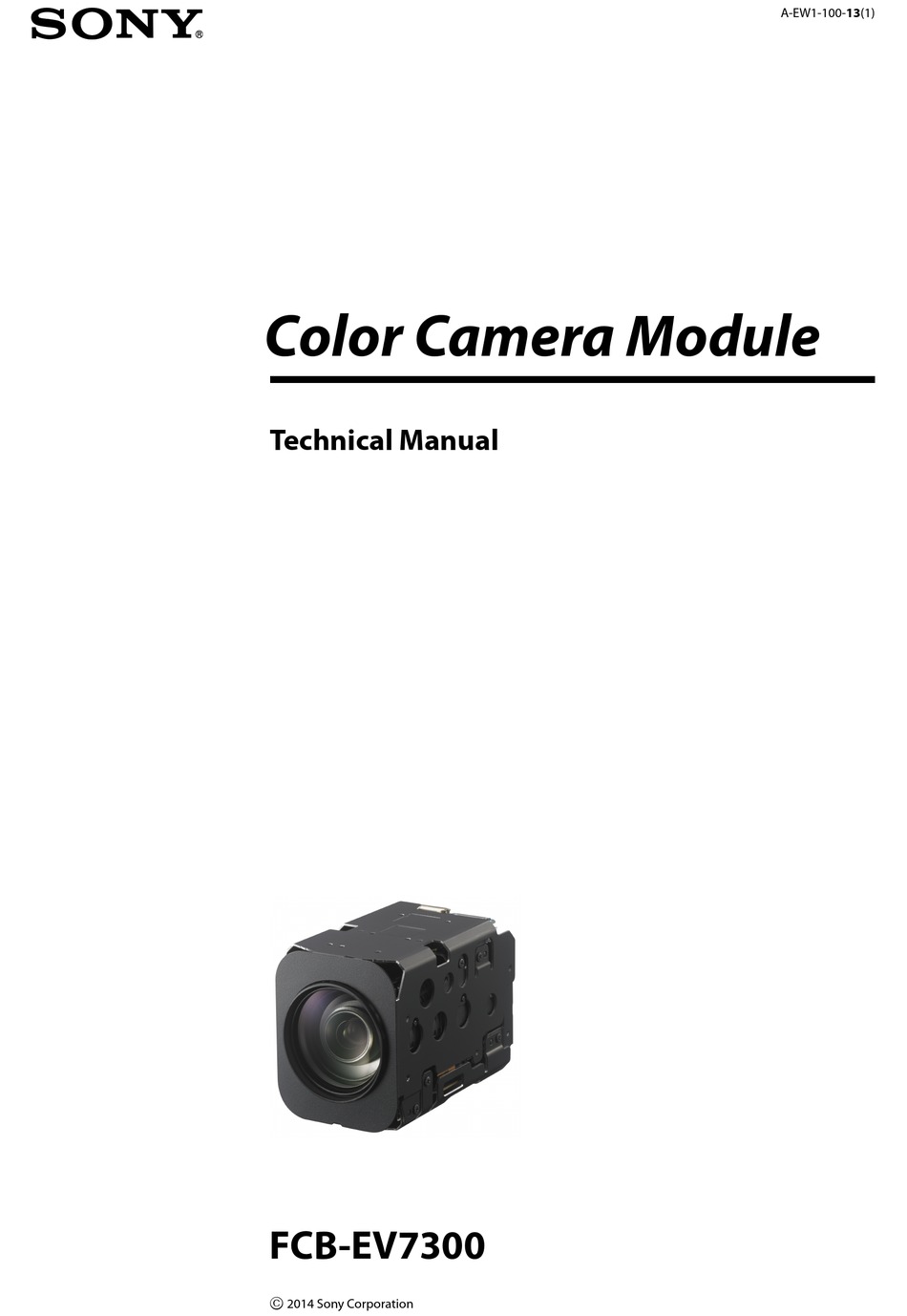

  • Page 1 A-EW1-100-13(1) Color Camera Module Technical Manual FCB-EV7300  2014 Sony Corporation...

  • Page 2: Table Of Contents

    Table of Contents Features ................3 Precautions ............... 4 Locations of Controls ............6 Basic Functions ..............7 Overview of Functions ..............7 User’s Updating ................21 Eclipse ....................24 Spectral Sensitivity Characteristics .......... 24 Initial Settings, Custom Preset and Backup ......25 Mode Condition ................

  • Page 3: Features

    Overview Features • Imager This camera uses a 1/2.8" “Exmor” CMOS (complementary metal-oxide semiconductor) image sensor (approx. 2.14 million effective pixels) that supports FULL HD (high definition) to produce high- quality images. • ISP Using the newly developed image signal processor (ISP), the following images can be obtained. - Full HD 60fps output image - Low focal plane image using the high-speed readout of imager The following functions are provided. - Advanced Noise Reduction (NR), Wide Dynamic Range (WD) and Image Stabilizer functions - Newly provided tone correction (Visibility Enhancer) and Defog functions • Lens The camera is equipped with a bright lens with 20× optical zoom and F1.6 aperture (optical zoom + digital zoom = 240×). With consideration given environmental protection, this module is designed to operate with low power consumption and also incorporates lead-free and halogen-free circuit boards.

  • Page 4: Precautions

    Overview Precautions • In case of abnormal operation, contact your Software authorized Sony dealer or the store where you Use of the demonstration software developed by Sony purchased the product. Corporation or use of the software with customer developed application software may damage hardware, Phenomena specific to CMOS image sensors the application program or the camera. Sony The following phenomena that may appear in images Corporation is not liable for any damages under these are specific to CMOS image sensors. They do not conditions. indicate malfunctions. Operation Rolling shutter As CMOS image sensors use shutters that capture Start the camera control software on your computer images line-by-line, there is a slight time difference after you turn on the camera and the image is displayed. between the top and bottom of an image. As a result, images may appear skewed if the camera is moved. Operation and storage locations White flecks Do not shoot images that are extremely bright (e.g., Although the CMOS image sensors are produced with light sources, the sun, etc.) for long periods of time. Do high-precision technologies, fine white flecks may be...
  • Page 5 Overview Notification on BSD License Application Software Please read the contents of description below at least once. FILE:sha2.c,sha2.h,sha2prog.c,sha2speed.c,sha2test.pl AUTHOR: Aaron D. Gifford - http://www.aarongifford.com/ Copyright (c) 2000-2001, Aaron D. Gifford All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: 1. R edistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. 2. R edistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. 3. N either the name of the copyright holder nor the names of contributors may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE AUTHOR AND CONTRIBUTOR(S) “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHOR OR CONTRIBUTOR(S) BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,...

  • Page 6: Locations Of Controls

    Locations of Controls Locations of Controls Front Back Bottom  Lens  CN401 connector  CN501 connector  Tripod screw hole When a tripod is used, please use 5 mm ( in.) or less screw to attach it to the camera. Also, please be sure to attach the tripod securely.

  • Page 7: Basic Functions

    Basic Functions Basic Functions Overview of Functions In general • Power On/Off The camera control is performed by VISCA Powers the camera on and off. Commands. When the power is off, the camera is able to accept the VISCA Commands although the screen is set Timing Chart non-displayed. As VISCA Command processing can only be carried • I/F Clear out one time in a Vertical cycle, it takes the maximum Clears the Command buffer of the FCB camera. 1V cycle time for an Acknowledge/Completion to be • Address Set returned. VISCA is a protocol, which normally supports a daisy If the Command/Acknowledge/Completion chain of up to seven connected cameras via RS-232C communication time can be less than the 1V cycle interface. In such cases, the address set command can time, then every 1V cycle can receive a Command. be used to assign addresses from 1 to 7 to each of the seven cameras, allowing you to control the seven General Commands cameras with the same personal computer. Although the FCB camera does not support direct connection of cameras in a daisy chain, be sure to use the address set command to set the address whenever a camera is connected for the first time. • ID Write Query Commands Sets the camera ID.
  • Page 8 Basic Functions Zoom Focus The FCB camera incorporates a 20× optical zoom lens Focus has the following modes. combined with a digital zoom function; this camera • Auto Focus Mode allows you to zoom up to 240×. The minimum focus distance is 10 mm at the optical wide end and 1000 mm at the optical tele end, and is • Optical 20×, f = 4.7 mm to 940 mm independent of the digital zoom. (F 1.6 to F 3.5) The Auto Focus (AF) function automatically adjusts the focus position to maximise the high frequency The horizontal angle of view is approximately 59.5 content of the picture in a center measurement area, degrees (wide end) to 3.3 degrees (tele end). taking into consideration the high luminance and Digital Zoom enlarges the center of the subject by strong contrast components. expanding each image in both the vertical and - Normal AF Mode horizontal directions. When 240× zoom is used, the number of effective picture elements in each direction This is the normal mode for AF operations. reduces to and the overall resolution deteriorates. - Interval AF Mode The mode used for AF movements carried out at Zoom has the following modes. particular intervals. The time intervals for AF movements and for the timing of the stops can be Using Standard Mode set in one-second increments using the Set Time Using Variable Mode Command. The initial setting for both is set to 5 There are eight levels of zoom speed. seconds. - Zoom Trigger Mode In these standard and variable modes, it is necessary to send Stop Command to stop the zoom operation.
  • Page 9 Basic Functions White Balance (WB) Auto Exposure Mode (AE) White Balance has the following modes. A variety of AE functions are available for optimal output of subjects in lighting conditions that range • Auto from low to high. This mode computes the white balance value output using color information from the entire screen. It • Full Auto outputs the proper value using the color temperature Iris, Gain and Shutter Speed can be set automatically. radiating from a black subject based on a range of • Gain Limit Setting values from 2500K to 7500K. The gain limit can be set at the Full Auto, Shutter This mode is the initial setting. Priority, Iris Priority, Bright, Spot Exposure and • ATW Manual in the AE mode. Use this setting when you Auto Tracing White balance (2000K to 10000K) want to obtain image in which signal-to-noise ratio is particularly important. • Indoor 3200K Base Mode • Shutter Priority Adjust with Variable Shutter Speed (1/1 to 1/10,000 • Outdoor sec., 16 high-speed shutter speeds plus 6 low-speed 5800K Base Mode shutter speeds), Auto Iris and Gain. • One Push WB 1) Flicker in the East Japan area (50 Hz power supply frequency) The One Push White Balance mode is a fixed white can be eliminated by setting shutter to 1/100s.
  • Page 10 Basic Functions Data 60/59.94/30/29.97 50/25 mode Gain mode Iris 1/10000 1/10000 OPEN 1/6000 1/6000 Iris curve 1/4000 1/3500 1/3000 1/2500 1/2000 1/1750 Gain curve 1/1500 1/1250 1/1000 1/1000 1/725 1/600 CLOSE 1/500 1/425 1/350 1/300 Dark Bright 1/250 1/215 Controlled Controlled by Iris 1/180 1/150...
  • Page 11 Basic Functions specified portions; and then the Gain and Iris are set. that is, the rest of the subject, except the headlights, The value of the designated portions and the becomes relatively dark, and poorly distinguished. surrounding areas should be calculated as 100%, the However, using the slow AE function means the AE rest should be set to 20%. The range of the Spot AE response speed will be slower, and response time will frame is fixed to 5 blocks vertically and 4 blocks be longer. As a result, even if the camera catches a high- horizontally. intensity subject (e.g., the headlights) for a moment, you can still easily distinguish the portions of the image surrounding the headlights. Horizontal 16 1 2 3 4 5 6 7 8 9 A B C D E F High Resolution Mode Vertical 16 This mode enhances edges and produces higher definition images. (8,7) Aperture Control Aperture control is a function which adjusts the edge...
  • Page 12 Basic Functions Set the area which you want to adjust the MinimumShutter brightness of the image with WD effect. When the subject becomes dark, the shutter speed Initial setting: 2 becomes slow, and then the gain is increased. This is a S: Compensation level function to put a limit on the shutter speed. (0: Low, 1: Mid, 2: High) It prevents the camera shake when you shoot a moving The compensation of the brightness, which you subject in a dark place. select from the parameter, can be set to three levels. Initial setting: 1 Noise Reduction (NR) Notes The NR function removes noise (both random and • When the WD is On, false colors may appear in some parts of the non-random) to provide clearer images. image. This phenomenon is unique to WD, and is not an The functions of both 2D NR (removal of 2- indication of a camera malfunction. dimentional noise) and 3D NR (removal of 3- • When switching WD mode, images are shown at a maximum of 8 dimentional noise) are provided. When the 2D NR frames at the same time. level is increased, the details of image may be lost because the smoothing of image with the peripheral Visibility Enhancer (VE) area is performed. Also, when the 3D NR level is increased, adverse effects such as image blur and Depending on the imaging scene, the Visibility blending in the successive images occur in the moving Enhancer function makes the darker part of a camera portion. In this function, the mode to set the level of image brighter, and automatically correct brightness...
  • Page 13 Basic Functions Contrast Adjustment Function (supported in by the Image Stabilizer function is at its maximum so version 6.00 or later) blurring is reduced. The “StableZoom” function can be switched On/Off in the register settings. You can adjust the contrast level in the range from 0 (00h) to 255 (FFh). The initial setting is 128 (80h). The smaller the value is, the lower the contrast becomes, Blurring is corrected in this and the larger the value is, the higher the contrast 240x digital zoom area. becomes. approx. “StableZoom” Note Digital zoom This function is available when the variable gamma mode is set to standard (00h) mode and when VE/WDR/HLC are set Optical zoom to OFF. Color Enhancement Zoom The digital ratio...
  • Page 14 Basic Functions Low-Illumination Chroma Suppress Mode When Auto Slow Shutter is Off (initial setting) You can configure a chroma suppress mode for low- Shutter 1/60 sec illumination conditions. This can be useful when color Iris noise is particularly noticeable in such conditions. OPEN Four levels (disabled and three levels) are available for the low-illumination chroma suppress mode. GAIN Iris ICR On Shutter ICR (IR Cut-Removable) Mode An infrared (IR) Cut-Filter can be disengaged from the Dark Bright image path for increased sensitivity in low light ICR Off  On environments. The ICR will automatically engage depending on the ambient light, allowing the camera to When Auto Slow Shutter is On be effective in day/night environments. When the auto ICR mode is set to On, the image becomes black and white. Custom Color Gain You can configure the color gain. Use this setting when bright color is particularly important.
  • Page 15 Basic Functions Freeze Register Setting Command: This function captures an image in the field memory of 8x 01 04 24 mm 0p 0q FF the camera so that this image can be output mm: Register No. (=00 to 7F) continuously. pq: Register Value (=00 to FF) Because communication inside the camera is based on V cycle, Register Inquiry Command: the captured image is always the one 3V to 4Vs after the 8x 09 04 24 mm FF sending of a Command. Thus, you can not specify a time mm: Register No.
  • Page 16 Basic Functions Zone Masking Function Note After changing the register setting, turn off the camera, then turn it on again. Privacy Zone masking protects private objects and areas such as house windows, entrances, and exits Privacy Zone Masking Settings which are within the camera’s range of vision but not For details, see page 16. subject to surveillance. Privacy zone masking can be masked on the monitor Motion detection to protect privacy. For details, see page 19. Features Title Display can be set on up to 24 places according to Pan/Tilt • You can set a title of up to 11 lines. One line can positions. contain up to 20 characters. • Mask can be displayed on 8 places per screen • You can set display on/off, the horizontal position of simultaneously. the first character, blinking state and color for each • Individual on/off zone masking settings. line. • Two colors can be individually set for each of • The camera gives priority to a title display when the 24 privacy zones. camera status is displayed on the relevant line. On the • Interlocking control with zooming. lines where a title is not set, the camera status is • Interlocking control with Pan/Tilt.
  • Page 17 Basic Functions Example: 8x 01 04 78 00 00 00 03 00 07 FF Details of Setting Commands The mask color of Mask_A and Mask_B is White Set Mask (color code 07h), and the mask color of the other Command: 8x 01 04 76 mm nn 0r 0r 0s 0s FF Mask (C to X) is Black (color code 00h). Parameters: Set Pan Tilt Angle Setting Mask Command: 8x 01 04 79 0p 0p 0p 0q 0q 0q FF See “mm: Mask setting list” in “Parameters” on page 18. Parameter: Selects new setting or resetting for the zone. See “nn: Setting” in “Parameters” on page 18. Pan Angle Sets the half value “w” of the Mask Width. Tilt Angle Sets the half value “h” of the Mask Height. See “Setting pan/tilt angle” in “Parameters” on See “pp: x, qq: y, rr: w, ss: h” in “Parameters” on page 18. page 18. Comments: To set the mask, first display the object at Comments: Pan/Tilt angle settings are hexadecimal the center of the screen. When “nn” is set to 1, the data. current Pan/Tilt/Zoom Position is recorded in The resolution of Pan/Tilt angle is 0.088 degrees. internal memory. When “nn” is set to 0, the Pan/Tilt/Zoom Position Notes in memory is not changed.
  • Page 18 Basic Functions Non Interlock Mask Note Command: 8x 01 04 6F mm 0p 0p 0q 0q 0r 0r 0s 0s The priority order of the mask display is in the sequence from A (highest) to X (lowest). Parameters: When you set the parameters of masks non-sequentially, it is recommended that you set the mask whose priority order is higher, Setting Mask first. See “mm: Mask setting list” in “Parameters” on page 18. Sets the center position “x” of the Mask on screen. pp pp pp pp: Mask bit Sets the center position “y” of the Mask on screen. Sets the half value “w” of the Mask Width. 7 6 5 1 0 7 6 5 4 3 2 1 0 Sets the half value “h” of the Mask Height. See “pp: x, qq: y, rr: w, ss: h” in “Parameters” on page 18. Mask - X W V U T S - - R Q P O N M Commands: Mask does not interlock with pan/tilt.
  • Page 19 Basic Functions Motion Detection (MD) Function This function instructs the camera to detect movement within the monitoring area and then send an alarm signal automatically. The Detect signal goes out through the VISCA Command. Features • You can set a frame for the detection range of 16 (horizontally) × 8 (vertically) blocks. • You can set up to four frames. • When the motion is detected in the set frame, the Alarm Replay VISCA Command is sent. • The threshold level for detection can be set (common to four frames). • The interval of alarm detection can be set up to 255 seconds in units of one second. • You can set on/off for each frame. • The frame number is also sent with Alarm Replay to report in which frame the motion has been detected. Frames Setting frames You can set the frame by assigning the starting point and terminating point vertically and horizontally. You can set up to four frames. When motion is detected within the range where frames overlap The alarms are sent for both frames.
  • Page 20 Basic Functions • When multiple motions are detected or motion is Sending Alarms detected in another frame within the set interval following the original time the alarm was issued, • When motion is detected, the Alarm Replay another alarm command is not issued. command is issued via the serial command (VISCA) • When motion is detected after the interval time communication line. elapsed, the alarm is issued again. Alarm issue Alarm issue Alarm issue Alarm issue Interval Interval Interval Alarm interval Motion is Motion is Motion is Motion is Motion is Motion is Motion is Motion is detected in detected in...

  • Page 21: User's Updating

    Basic Functions User’s Updating Extended Commands Extended commands support the following functions (described previously). Firmware Update Operation for Turn on this mode (for details, see “Extended Mode” in FCB series version 4.00 or later. “Register Setting” on page 56) to enable the following functions. Overview • Exposure Compensation The setting can be set in steps of approximately 0.2dB The details on the firmware version upgrade are (-128 (00h) to approximately +127 (FFh)). described. For details, see page 11. To perform the firmware version upgrade, the • Aperture Control following three steps are required. The setting can be set to 256 levels (00h to FFh). 1) Shifting to the maintenance mode using the Visca For details, see page 11. command • Custom Color Gain 2) Binary transmission (X model protocol) of the...
  • Page 22 Basic Functions 3) Finalizing setting using the Visca command Maintenance Mode The finalizing setting is performed using the Visca HOST command. CODE NAME+ You cannot read the correct camera firmware VERSION + CR version without performing this setting. Be sure to perform this setting. Firmware Update “ready” + CR Ready Message Update Procedure “reprogram ( )” + CR Enter Maintenance Mode “receive”+ CR HOST CAM_Power off Sending Firmware Binary 8x 01 04 00 03 FF with X modem protocol Enter Standby...
  • Page 23 Basic Functions Finalizing procedure After the maintenance mode, perform the following finalizing procedure. HOST 8x 01 7F 01 7F FF ACK, COMP 8x 01 7F 7F 02 00 00 01 00 01 FF ACK, COMP 8x 01 7F 7F 02 03 08 00 00 03 FF ACK, COMP 8x 01 7F 7F 02 03 00 00 06 01 FF ACK, COMP 8x 01 7F 7F 02 03 00 01 06 01 FF...

  • Page 24: Eclipse

    Basic Functions Eclipse When designing the housing, refer to the dimensional allowance as shown in the figure below. 19.5 (25/32) unit: mm (inches) Spectral Sensitivity Characteristics Green Blue 400 450 500 550 600 650 700 750 800 850 900 950 1000 Wavelength [nm] Use the graph as a reference value. (We can not guarantee these values.) This data is measured when the IR cut filter is removed and the characteristics of the lens and optical source characteristics are ignored.

  • Page 25: Initial Settings, Custom Preset And Backup

    Basic Functions Initial Settings, Custom Preset and Backup Initial Settings for the various functions of the FCB camera are indicated in the “Initial Settings” column. The “Custom Preset” column indicates whether the custom preset function can be used to store the settings. The function enables the stored settings to be recalled automatically when the camera is turned on. The “Back up at standby” column indicates whether the data is preserved even when the camera is in the standby mode. Custom Back up Mode/Position setting Initial Settings Preset at standby Zoom Position Wide end   D-Zoom On/Off   D-Zoom Separate/Combine Combine   D-Zoom Position  ...
  • Page 26 Basic Functions Custom Back up Mode/Position setting Initial Settings Preset at standby Display On/Off   Mute On/Off   Auto ICR Alarm On/Off   Image Stabilizer On/Off/Hold   High Sensitivity Mode On/Off   Gamma 0:standard   Defog On/Off   NR level (normal setting)   NR level (independent setting) Disabled  ...

  • Page 27: Mode Condition

    Basic Functions...
  • Page 28 Basic Functions...
  • Page 29 Basic Functions...

  • Page 30: Command List

    Command List Command List Overview of VISCA VISCA/RS-232C Commands In VISCA, the device outputting commands, for example, a computer, is called the controller. The device receiving the commands, an FCB camera is This Manual outlines an RS-232C control protocol and called the peripheral device. In VISCA, up to seven command list for certain Sony cameras from which peripheral devices like the FCB camera can be control software can be developed. connected to one controller using communication THIS CONTROL PROTOCOL AND COMMAND conforming to the RS-232C standard. The parameters LIST IS PROVIDED BY SONY ON AN “AS-IS BASIS” of RS-232C are as follows. WITHOUT WARRANTY OF ANY KIND. SONY  C ommunication speed: 9.6 kbps/19.2 kbps/ DOES NOT WARRANT ANY PARTICULAR RESULT 38.4 kbps/115.2 kbps FROM THE USE OF THIS CONTROL PROTOCOL  Data bits : 8 AND COMMAND LIST AND DISCLAIMS AND  Start bit : 1 EXCLUDES ALL WARRANTIES. EXPRESS OR  Stop bit : 1 IMPLIED, WITH RESPECT TO THAT CONTROL  Non parity PROTOCOL AND COMMAND LIST, INCLUDING, Flow control using XON/XOFF and RTS/CTS, etc., is...
  • Page 31 Command List VISCA Communication Specifications VISCA packet structure The basic unit of VISCA communication is called a packet. The first byte of the packet is called the header and comprises the sender’s and receiver’s addresses. For example, the header of the packet sent to the FCB camera assigned address 1 from the controller (address 0) is hexadecimal 81h. The packet sent to the camera assigned address 2 is 82h. In the command list, as the header is 8X, input the address of the camera at X. The header of the reply packet from the camera assigned address 1 is 90h. The packet from the camera assigned address 2 is A0h. Some of the commands for setting cameras can be sent to all devices at one time (broadcast). In the case of broadcast, the header should be hexadecimal 88h. When the terminator is FFh, it signifies the end of the packet. Packet (3 to 16 bytes) Header Message (1 to 14 bytes) Terminator Byte 1 Byte 2 Byte 3 Sender’s address...
  • Page 32 Command List Responses for commands and inquiries The Acknowledge message is not returned for these commands and inquiries, and only the completion  A cknowledge message message of socket number 0 is returned. Returned by the FCB camera when it receives a Command execution cancel command. No Acknowledge message is returned for inquiries. To cancel a command which has already been sent, send the Cancel command as the next command. To  C ompletion message cancel one of any two commands which have been Returned by the FCB camera when execution of sent, use the cancel message. commands or inquiries is completed. In the case of inquiry commands, it will contain reply data for the Cancel Packet Note inquiry after the 3rd byte of the packet. If the Cancel 8X 2Y FF Y = socket number Acknowledge message is omitted, the socket number X = 1 to 7: FCB camera address, Y = socket number will contain 0.
  • Page 33 8X 09 00 02 FF Y0 50 GG GG HH HH JJ JJ KK FF GGGG = Vender ID (0020: Sony) HHHH = Model ID 046A: FCB-EV7300 JJJJ = ROM revision KK = Maximum socket #(02) X = 1 to 7: FCB camera address (For inquiry packet)
  • Page 34 Command List VISCA Command/Acknowledge Protocol Command Command Message Reply Message Comments General Command 81 01 04 38 02 FF 90 41 FF (Acknowledge) Returns Acknowledge when a command has been accepted, and (Example) +90 51 FF (Completion) Completion when a command has been executed. 90 42 FF 90 52 FF 81 01 04 38 FF 90 60 02 FF (Syntax Error) Accepted a command which is not supported or a command (Example) lacking parameters. 81 01 04 38 02 FF 90 60 03 FF There are two commands currently being executed, and the (Example) (Command Buffer Full) command could not be accepted. 81 01 04 08 02 FF 90 61 41 FF Could not execute the command in the current mode. (Example) (Command Not Executable) 90 62 41 FF Inquiry Command 81 09 04 38 FF 90 50 02 FF (Completion) Acknowledge is not returned for the inquiry command. (Example) 81 09 05 38 FF 90 60 02 FF (Syntax Error)
  • Page 35 Command List VISCA Camera-Issued Messages Acknowledge/Completion Messages Command Messages Comments Acknowledge z0 4y FF Returned when the command is accepted. (y:Socket No.) Completion z0 5y FF Returned when the command has been executed. (y:Socket No.) z = Device address + 8 Error Messages Command Messages Comments Syntax Error z0 60 02 FF Returned when the command format is different or when a command with illegal command parameters is accepted. Command Buffer Full z0 60 03 FF Indicates that two sockets are already being used (executing two commands) and the command could not be accepted when received. Command Canceled z0 6y 04 FF Returned when a command which is being executed in a socket specified by the cancel (y:Socket No.) command is canceled. The completion message for the command is not returned. No Socket z0 6y 05 FF Returned when no command is executed in a socket specified by the cancel command, (y:Socket No.) or when an invalid socket number is specified.

  • Page 36: Fcb Camera Commands

    Command List FCB Camera Commands Command List (1/6) Command Set Command Command Packet Comments AddressSet Broadcast 88 30 01 FF Address Setting IF_Clear – 8x 01 00 01 FF I/F Clear Broadcast 88 01 00 01 FF CommandCancel – 8x 2p FF p: Socket No. (=1 or 2) CAM_Power 8x 01 04 00 02 FF Power On/Off Off (Standby) 8x 01 04 00 03 FF CAM_Zoom Stop 8x 01 04 07 00 FF Tele (Standard) 8x 01 04 07 02 FF Wide (Standard) 8x 01 04 07 03 FF Tele (Variable) 8x 01 04 07 2p FF p=0 (Low) to 7 (High)
  • Page 37 Command List Command List (2/6) Command Set Command Command Packet Comments CAM_WB Auto 8x 01 04 35 00 FF Normal Auto Indoor 8x 01 04 35 01 FF Indoor mode Outdoor 8x 01 04 35 02 FF Outdoor mode One Push WB 8x 01 04 35 03 FF One Push WB mode 8x 01 04 35 04 FF Auto Tracing White Balance Manual 8x 01 04 35 05 FF Manual Control mode One Push Trigger 8x 01 04 10 05 FF One Push WB Trigger Outdoor Auto 8x 01 04 35 06 FF Outdoor auto Sodium Lamp Auto 8x 01 04 35 07 FF Auto including sodium lamp source Sodium Lamp 8x 01 04 35 08 FF Sodium lamp source fixed mode Sodium Lamp Outdoor 8x 01 04 35 09 FF...
  • Page 38 Command List Command List (3/6) Command Set Command Command Packet Comments CAM_ExpComp 8x 01 04 3E 02 FF Exposure Compensation On/Off Off 8x 01 04 3E 03 FF Reset 8x 01 04 0E 00 FF Exposure Compensation Amount Setting 8x 01 04 0E 02 FF Down 8x 01 04 0E 03 FF Direct 8x 01 04 4E 00 00 0p 0q FF pq: ExpComp Position CAM_Backlight 8x 01 04 33 02 FF Back Light Compensation On/Off 8x 01 04 33 03 FF CAM_SpotAE 8x 01 04 59 02 FF Spot Auto Exposure Setting 8x 01 04 59 03 FF Position 8x 01 04 29 0p 0q 0r 0s FF pq: X (0h to Fh), rs: Y (0h to Fh) CAM_AE_Response Direct 8x 01 04 5D pp FF pp: Auto Exposure Response Setting (01h to 30h), initial setting: 01h CAM_WD 8x 01 04 3D 02 FF...
  • Page 39 Command List Command List (4/6) Command Set Command Command Packet Comments CAM_ICR 8x 01 04 01 02 FF ICR Mode On/Off 8x 01 04 01 03 FF CAM_AutoICR 8x 01 04 51 02 FF Auto ICR Mode On/Off Off 8x 01 04 51 03 FF Threshold 8x 01 04 21 00 00 0p 0q FF pq: ICR On  Off Threshold Level CAM 8x 01 04 31 02 FF Auto ICR switching Alarm On/Off _AutoICRAlarmReply 8x 01 04 31 03 FF (Reply) y0 07 04 31 02 FF ICR Off  On y0 07 04 31 03 FF ICR On  Off CAM_Stabilizer 8x 01 04 34 02 FF Stabilizer On/Off/HOLD 8x 01 04 34 03 FF Hold 8x 01 04 34 00 FF CAM_Memory Reset 8x 01 04 3F 00 0p FF p: Memory Number (=0h to Fh)
  • Page 40 Command List Command List (5/6) Command Set Command Command Packet Comments CAM_IDWrite — 8x 01 04 22 0p 0q 0r 0s FF pqrs: Camera ID (=0000h to FFFFh) CAM_MD 8x 01 04 1B 02 FF MD On/Off 8x 01 04 1B 03 FF Function Set 8x 01 04 1C 0m 0n 0p 0q 0r 0s FF m: Display mode n: Detection Frame Set (00h to 0Fh) pq: Threshold Level (00h to FFh) rs: Interval Time set (00h to FFh) Window Set 8x 01 04 1D 0m 0p 0q rr 0s FF m: Select Detection Frame (0, 1, 2, 3) p: Start Horizontal Position (00h to 0Fh) q: Start Vertical Position (00h to 07h) rr: Stop Horizontal Position (01h to 10h) s: Stop Vertical Position (01h to 08h) Alarm (Reply) y0 07 04 1B 0p FF p: Detection Frame Number CAM_Continuous 8x 01 04 69 02 FF Zoom Position data Continuous Output On/Off ZoomPosReply 8x 01 04 69 03 FF (Reply) y0 07 04 69 0p 0p 0q 0q 0q 0q FF pp: D-Zoom Position...
  • Page 41 Command List Command List (6/6) Command Set Command Command Packet Comments CAM_ContrastAdjLevel Direct 8x 01 05 5D 01 0p 0q FF pq: 00h to FFh (Supported in FW version 00h to 7Fh: The smaller the value is, the lower the contrast 6.00 or later) becomes. 80h (Initial setting): No contrast adjustment 81h to FFh: The larger the value is, the higher the contrast becomes. CAM_ExExpComp Reset 8x 01 04 1F 0E 00 00 FF Exposure compensation reset 8x 01 04 1F 0E 02 pp FF Exposure compensation up pp: Step number pp=00h to 7Fh (However, 00h is the same operation as 01h.) Down 8x 01 04 1F 0E 03 pp FF Exposure compensation down pp: Step number pp=00h to 7Fh (However, 00h is the same operation as 01h.) Direct 8x 01 04 1F 4E 00 00 0p 0q FF Set the exposure compensation to the specified level pq: Level pq=00h to FFh CAM_ExAperture Reset 8x 01 04 1F 02 00 00 FF...
  • Page 42 Command List Inquiry Command List (1/4) Inquiry Command Command Packet Inquiry Packet Comments CAM_PowerInq 8x 09 04 00 FF y0 50 02 FF y0 50 03 FF Off (Standby) CAM_ZoomPosInq 8x 09 04 47 FF y0 50 0p 0q 0r 0s FF pqrs: Zoom Position CAM_DZoomModeInq 8x 09 04 06 FF y0 50 02 FF D-Zoom On y0 50 03 FF D-Zoom Off CAM_DZoomC/SModeInq 8x 09 04 36 FF y0 50 00 FF Combine Mode y0 50 01 FF Separate Mode CAM_DZoomPosInq 8x 09 04 46 FF y0 50 00 00 0p 0q FF pq: D-Zoom Position CAM_FocusModeInq 8x 09 04 38 FF y0 50 02 FF Auto Focus y0 50 03 FF...
  • Page 43 Command List Inquiry Command List (2/4) Inquiry Command Command Packet Inquiry Packet Comments CAM_SpotAEModeInq 8x 09 04 59 FF y0 50 02 FF y0 50 03 FF CAM_SpotAEPosInq 8x 09 04 29 FF y0 50 0p 0q 0r 0s FF pq: X Position, rs: Y Position CAM_WDModeInq 8x 09 04 3D FF y0 50 02 FF y0 50 03 FF y0 50 06 FF VE On CAM_WDParameterInq 8x 09 04 2D FF y0 50 00 0q 0r 0s 0t 0u 00 00 FF q: Display brightness level (0: Dark to 6: Bright) r: Brightness compensation selection (0: Very dark, 1: Dark, 2: Standard, 3: Bright) s: Compensation level (00h: Low, 01h: Mid, 02h: High) tu: Always 0 CAM_AEResponseInq 8x 09 04 5D FF y0 50 pp FF pp: 01h to 30h CAM_DefogInq 8x 09 04 37 FF y0 50 02 0p FF...
  • Page 44 Command List Inquiry Command List (3/4) Inquiry Command Command Packet Inquiry Packet Comments CAM_MuteModeInq 8x 09 04 75 FF y0 50 02 FF y0 50 03 FF CAM_PrivacyDisplayInq 8x 09 04 77 FF y0 50 pp pp pp pp FF pp pp pp pp: Mask Display (0: Off, 1: On) CAM_PrivacyPanTiltInq 8x 09 04 79 FF y0 50 0p 0p 0p 0q 0q 0q FF ppp: Pan qqq: Tilt CAM_PrivacyPTZInq 8x 09 04 7B mm FF y0 50 0p 0p 0p 0q 0q 0q 0r 0r 0r 0r mm: Mask Settings ppp: Pan qqq: Tilt rrrr: Zoom CAM_PrivacyMonitorInq 8x 09 04 6F FF y0 50 pp pp pp pp FF pp pp pp pp: Mask is displayed now. CAM_IDInq 8x 09 04 22 FF y0 50 0p 0q 0r 0s FF pqrs: Camera ID CAM_VersionInq 8x 09 00 02 FF...
  • Page 45 Command List Inquiry Command List (4/4) Inquiry Command Command Packet Inquiry Packet Comments CAM_ExColorHueInq 8x 09 04 1F 4F 00 FF y0 50 0p 0q FF pq: Phase setting level pq: 00h (-14 degree) to FFh (+14 degree) CAM_ExAutoICRThresholdInq 8x 09 04 1F 21 00 FF y0 50 00 00 0p 0q FF pq: ICR ON→OFF threshold level when Auto ICR pq = 00h to FFh CAM_ExAutoICROnLevelInq 8x 09 04 1F 21 01 FF y0 50 00 00 0p 0q FF pq: ICR OFF→ON threshold level when Auto ICR pq = 00h to 1Ch CAM_MinShutterInq 8x 09 04 12 FF y0 50 02 FF y0 50 03 FF CAM_MinShutterLimitInq 8x 09 04 13 FF y0 50 00 00 0p 0q FF pq: MinShutter Position CAM_HLCInq 8x 09 04 14 FF y0 50 0p 0q FF p: HLC level (0: OFF, 1: Low, 2: Mid, 3: High) q: H LC mask level (0: OFF, 1 to F: from low to high level)
  • Page 46 Command List Block Inquiry Command List Lens Control System Inquiry Commands ..... Command Packet 8x 09 7E 7E 00 FF Byte Comments Byte Comments Byte Comments Destination Address Source Address Focus Near Limit (H) 0 Completion Message (50h) DZoomMode 0: Combine 1: Separate 0: Normal 1: Interval 2: Zoom Trigger Focus Near Limit (L) AF Sensitivity 0: Low 1: Normal Digital Zoom 1: On 0: Off Focus Mode 0: Manual 1: Auto Zoom Position (HH) Focus Position (HH) Low Contrast Detection 1: Yes 0: No...
  • Page 47 Command List Camera Control System Inquiry Commands ....Command Packet 8x 09 7E 7E 01 FF Byte Comments Byte Comments Byte Comments Destination Address Source Address WB Mode Gain Position 0 Completion Message (50h) Bright Position Aperture Gain Exposure Mode R Gain (H) Exposure Comp. Position 1 Terminator (FFh) High Resolution 1: On 0: Off WD (1: Other than Off, 0: Off) Spot AE 1: On 0: Off Backlight 1: On 0: Off R Gain (L) Exposure Comp. 1: On 0: Off Slow Shutter 1: On 0: Off Shutter Position B Gain (H) Iris Position...
  • Page 48 Command List Other Inquiry Commands ..........Command Packet 8x 09 7E 7E 02 FF Byte Comments Byte Comments Byte Comments Destination Address Memory 1: Provided 0: Not provided Source Address ICR 1: Provided 0: Not provided 0 Completion Message (50h) Stabilizer 1: Provided 0: Not provided System 1: 1/50, 1/25 0: 1/60, 1/30 Auto ICR Alarm (1: On, 0: Off) Auto ICR 1: On 0: Off Camera ID (HH) Power 1: On 0: Off Stabilizer 1: On 0: Off Stabilizer Hold 1: Hold 0: Off 1 Terminator (FFh) ICR 1: On 0: Off Freeze 1: On 0: Off LR Reverse 1: On 0: Off Camera ID (HL) Privacy Zone 1: On 0: Off Mute 1: On 0: Off Title Display 1: On 0: Off...
  • Page 49 Command List Extended Function1 Query Command ......Command Packet 8x 09 7E 7E 03 FF Byte Comments Byte Comments Byte Comments Destination Address Color Gain (0h (60%) to Eh (200%)) Advanced Privacy Source Address AF Interval Time (H) (1: Provided, 0: Not provided) Reserved E-Flip 0 Completion Message (50h) (1: Provided, 0: Not provided) AF Interval Time (L) AE Response Gamma High Sensitivity mode Digital Zoom Position (H) Spot AE Position (X) (1: On, 0: Off) NR Level (The lower 3 bits of the CAM_ NRInq return value pq are stored.) Chroma Suppress...
  • Page 50 Command List Extended Function2 Query Command ......Command Packet 8x 09 7E 7E 04 FF Byte Comments Byte Comments Byte Comments Destination Address Source Address Compensation level 0: Low 1: Mid 2: High 0 Completion Message (50h) Defog 0: Off 1: On Defog Level 0: Off 1: On 2: VE On 0: mid 1: low 2: mid 3: high 1 Terminator (FFh) Display brightness level setting 0: Dark to 6: Bright Brightness compensation selection 0: Very dark 1: Dark 2: Standard 3: Bright...
  • Page 51 Command List Extended Function3 Query Command ......Command Packet 8x 09 7E 7E 05 FF Byte Comments Byte Comments Byte Comments Destination Address Reserved Reserved Source Address 0 Completion Message (50h) Reserved Reserved Reserved Reserved Color Hue (0h(− 14 degrees) to Eh(+ 14 degrees)) Reserved Reserved Reserved 1 Terminator (FFh) Reserved Reserved Reserved...
  • Page 52 Command List VISCA Command Setting Values Exposure control (1/2) Gain 48.8 dB (28 step) 60/59.94/ 50/25 mode 45.3 dB (26 step) 30/29.97 mode 41.9 dB (24 step) Shutter Speed 38.4 dB (22 step) 1/10000 1/10000 1/6000 1/6000 34.9 dB (20 step) 31.4 dB (18 step) 1/4000 1/3500 27.9 dB (16 step) 1/3000 1/2500 24.4 dB (14 step) 1/2000 1/1750 20.9 dB (12 step) 1/1500 1/1250 17.4 dB (10 step) 1/1000 1/1000 14 dB (8 step)
  • Page 53 Command List Exposure control (2/2) Zoom Ratio and Zoom Position (for reference) Iris Gain Bright Optical Zoom Optical Zoom F1.6 48.8 dB (28 step) Ratio Position Data F1.6 45.3 dB (26 step) 1× 0000 F1.6 41.9 dB (24 step) 2× 1851 F1.6 38.4 dB (22 step) 3× 22BE 4× 28F6 F1.6 34.9 dB (20 step) 5×...
  • Page 54 Command List Digital Zoom Combine mode Lens control Digital Zoom Digital Zoom 0000 to 4000 to 7AC0 Ratio Position Data Zoom Position Wide end Optical Digital 1× 4000 Tele end Tele end 2× 6000 1000 to F000 Focus Position 3× 6A80 Far end Near end 4× 7000 1000: Over Inf 5× 7300 2000: 25 m 6× 7540 3000: 11 m 7× 76C0 4000: 7 m 8×...
  • Page 55 Command List Temperature Reading Conversion Value Register Setting (Reference Value) The register settings are enabled when the power is turned off and then back on again. After turning the power back on again, verify that the mode settings have Reading Value Temperature pq (hex) Conversion been changed. Value (ºC) Register No. Value −8 to −2 VISCA 9600 bps −3 to +3 Baud Rate (Iinitial Setting) 7 to 13 19200 bps 38400 bps 17 to 23 115200 bps 27 to 33 Monitoring 1080i/59.94 37 to 43 Mode (Iinitial Setting) 47 to 53...
  • Page 56 Command List Others Register No. Value FocusTrace @ZoomDirect AF Active Time (Iinitial Setting: 01) AF Interval Time FocusOffset 00-FF 00: None to Spot AE X position @DomeCover (Iinitial Setting: 00) FF: Max. AE Parameter Spot AE Y position Change During R Gain VE On, Defog (Iinitial Setting) B Gain Aperture Control Level Auto Slow 1/30 AE Response 1/15 Shutter Limit AutoICR On  Off Threshold Level MD Threshold Level (Iinitial Setting) MD Interval Time MD Set Horizontal Position Extended Allowed up to MD Set Vertical Position Normal Shutter (Iinitial Setting) Chroma Suppress setting level...

  • Page 57: Specifications

    Specifications Specifications Imager 1/2.8 Type “Exmor” CMOS Sensor Back light compensation Picture elements 2140K pixels On/Off Lens 20× Zoom Electronic shutter speed F= 4.7 mm (WIDE) to 94.0 mm 1/1 sec to 1/10000 sec (22 steps) (TELE), F1.6 to F3.5 White Balance Auto, ATW, Indoor, Outdoor, One Zoom movement speed Push WB, Manual WB, Outdoor Optical WIDE – Optical TELE Auto, Sodium Vapor Lamp (Fix/ 2.1 sec (Focus Tracking On) Auto/Outdoor Auto) 1.5 sec (Focus Tracking Off) Gain Auto/Manual (0 to 28 step) Optical WIDE – Digital TELE Max. Gain Limit (6 to 28 step) 4.2 sec (29.97p/59.94p mode) Wide Dynamic Range Mode 4.6 sec (25p/50p mode) On/Off Digital WIDE – Digital TELE Noise Reduction 2.1 sec (29.97p/59.94p mode) On/Off (level 5 to 1 / Off, 6 steps) 2.5 sec (25p/50p mode) Defog mode On/Off Focus Movement time Color Enhancement ∞ to Near 0.7 sec On/Off...
  • Page 58 Specifications Interface FCB-EV7300 046240024006800+ (Kyocera-elco) • The FCB-EV7300 uses the LVDS transmitter IC chip. The LVDS receiver IC chip (e.g., THC63LVD1024, THC63LVD104C, BU90R102) is recommended. • Recommended connectors and cables Cable: #42 thin coaxial cable Connector: USL20-30S (KEL) LVDS Pixel Data Format Single Mode THS63LVD827 IN Pixel CLK Pixel Data THS63LVD827 OUT TA1 +/    TB1 +/ TC1 +/ TD1 +/ TCLK +  Please ignore the value which can be “0” or “1”.
  • Page 59 Specifications 720p/25 74.25M 74.25M Double Mode THS63LVD827 IN Pixel CLK Pixel Data EVEN EVEN THS63LVD827 OUT TA1 +/    TB1 +/ DATA TC1 +/  TD1 +/ TCLK + TA2 +/    TB2 +/ EVEN DATA TC2 +/...
  • Page 60 Specifications LVDS receiver circuit example Sony Corporation is not liable for any damages to user’s hardware incurred by the use of the circuit example shown below. LVDS receiver circuit example  (Single output) * Not compatible with 1080p/60, 59.94, 50 • The switch (S001) selects whether to input the rising edge or falling edge of the signal.
  • Page 61 Specifications LVDS receiver IC (e.g., THC63LVD104C) Pin assigment Single mode LVDS input - CMOS output * Not compatible with 1080p/60, 59.94, 50 Pin No. Description Signal Pin No. Description Signal GND_1 TEST VSYNC VCC_37 HSYNC VCC_9 GND_44 GND_16 VCC_48 RA− TXOUT0−...
  • Page 62 Specifications LVDS receiver circuit example  (Single output) • No.1 and 2 of S601 adjust the signal delay. No.3 selects whether to input the rising edge or falling edge of the signal.
  • Page 63 Specifications LVDS receiver IC (e.g., BU90R102) Pin assigment Single mode LVDS input - CMOS output Pin No. Description Signal Pin No. Description Signal Pin No. Description Signal PGND_1 HSYNC PVCC_2 VSYNC RESERVED VCC_53 PDWN GND_54 CONT11 MODE0 CONT21 CONT12 MODE1 CONT22 VCC_106 VCC_57...
  • Page 64 Specifications LVDS receiver circuit example  (Double output) • No.1 and 2 of S601 adjust the signal delay. No.3 selects whether to input the rising edge or falling edge of the signal.
  • Page 65 Specifications LVDS receiver IC (e.g., THC63LVD1024, BU90R102) Pin assigment Double mode LVDS input - CMOS output Pin No. Description Signal Pin No. Description Signal Pin No. Description Signal PGND_1 HSYNC PVCC_2 VSYNC RESERVED VCC_53 PDWN GND_54 CONT11 MODE0 CONT21 CONT12 MODE1 CONT22 VCC_106...
  • Page 66 Specifications Cable reference specifications (crossover) • Recommended connectors and cables Cable green: #42 thin coaxial cable Cable blue: #42 thin coaxial cable Connector: USL20-30S (KEL) Binding tape DIGITAL Image Output Y, Cb, Cr 4:2:2 FORMAT Color coding complies with BT709.
  • Page 67 Specifications Synchronized codes Blanking Active Video Area or Non-active Video Area XX for SAV XX for EAV Active Video Area First Field Non-active Video Area Active Video Area Second Field Non-active Video Area...
  • Page 68 Specifications Synchronized codes Interlace system (Comparable to SMPTE 274 M) Blanking Non-active Video Area   Active Video Area   First Field Blanking  Blanking  Non-active Video Area Non-active Video Area  Blanking    Active Video Area Second Field Blanking   Blanking Non-active Video Area ...
  • Page 69 Specifications Synchronized codes Progressive system (Comparable to SMPTE 274 M, 296 M) Blanking Non-active Video Area   Blanking Active Video Area   Blanking Non-active Video Area    SAV for Active Video Area  SAV for Non-active Video Area  EAV for Active Video Area ...
  • Page 70 Specifications Dimensions Front Back Bottom Within a depth Within a depth of 3 mm ( in.) of 3 mm ( in.) or less from the or less from the top surface bottom surface Screw for camera tripod within a depth of 5 mm ( in) or less (1/4-20UNC)
  • Page 71 Specifications CN501 Pin assignment Kyocera-elco 046240024006800+ Pin No. Name Level CMOS 5 V (Low: Max 0.1 V, High: Min 4.4 V) CMOS 5 V (Low: Max 1.0 V, High: Min 2.3 V) RESET Reset: Low (GND), Normal: Open (1.8V) VBS-OUT Y-OUT HD Analog Component CN401 KEL Co. USL00-30L-C Pb-OUT HD Analog Component Pin No. Name Level Pr-OUT HD Analog Component TXOUT3+ TXOUT3− DC IN 6 to 12 V DC TXCLKOUT+ DC IN 6 to 12 V DC TXCLKOUT− DC IN 6 to 12 V DC TXOUT2+ DC IN 6 to 12 V DC TXOUT2−...
