Overheating protection

If the device becomes too hot during the charging process, the output power and out-
put current are automatically reduced to prevent damage to the device.

4 Mode selection

1. Press the mode button, the charger will enter the charging mode from the standby
state and the charging LED will light up.
2. Suitable for batteries with capacity of more than 5Ah in cold state (0-4°C) of 12V
WET, EFB, and the majority of GEL batteries, or for many AGM batteries in normal
state.
Note: Do not connect 6V battery.
3. If there is no other operation, it will automatically enter the charging mode in 5
seconds.
Mode
7 Standby
11 Charging mode
(14.7 V / 3.5 A)
10 Fully charged
(≥14.7 V)
9 Very low battery
(2 V - 4.5 V)
4.1 Pulse charging
This is an automatic charging function that cannot be selected manually.
If the battery voltage in 12 V mode is between 4.5 V (± 0.5 V) and 10.5 V (± 0.5 V) at the
start of the charging process, the charger will automatically switch to pulse charging.
4.2 Trickle charging phase
The charger has an automatic trickle charging phase with max. 200 mA at full charge.
4.3 Maintenance phase
When the battery is fully charged, if the charger is always connected to the battery,
the charger will enter maintenance phase to maintain the battery capacity in full state.

5 Maintenance and care

Always remove the mains plug from the socket before cleaning the charger. The
charger is maintenance-free.
1. Switch off the device.
2. Use a dry cloth to clean the plastic surfaces of the device.
3. Never use solvents or other aggressive cleaning agents.
4. To maintain operational safety, the devices must only be repaired by the manufactur-
er or its service representative using original spare parts.
5. For Li-Ion (LiFePO₄) batteries, please use the Bosch C40-Li or C80-Li.
6. For 6 V batteries, please use the C30, C40-Li or C80-Li.
7. For 24 V batteries, please use the C70.
14

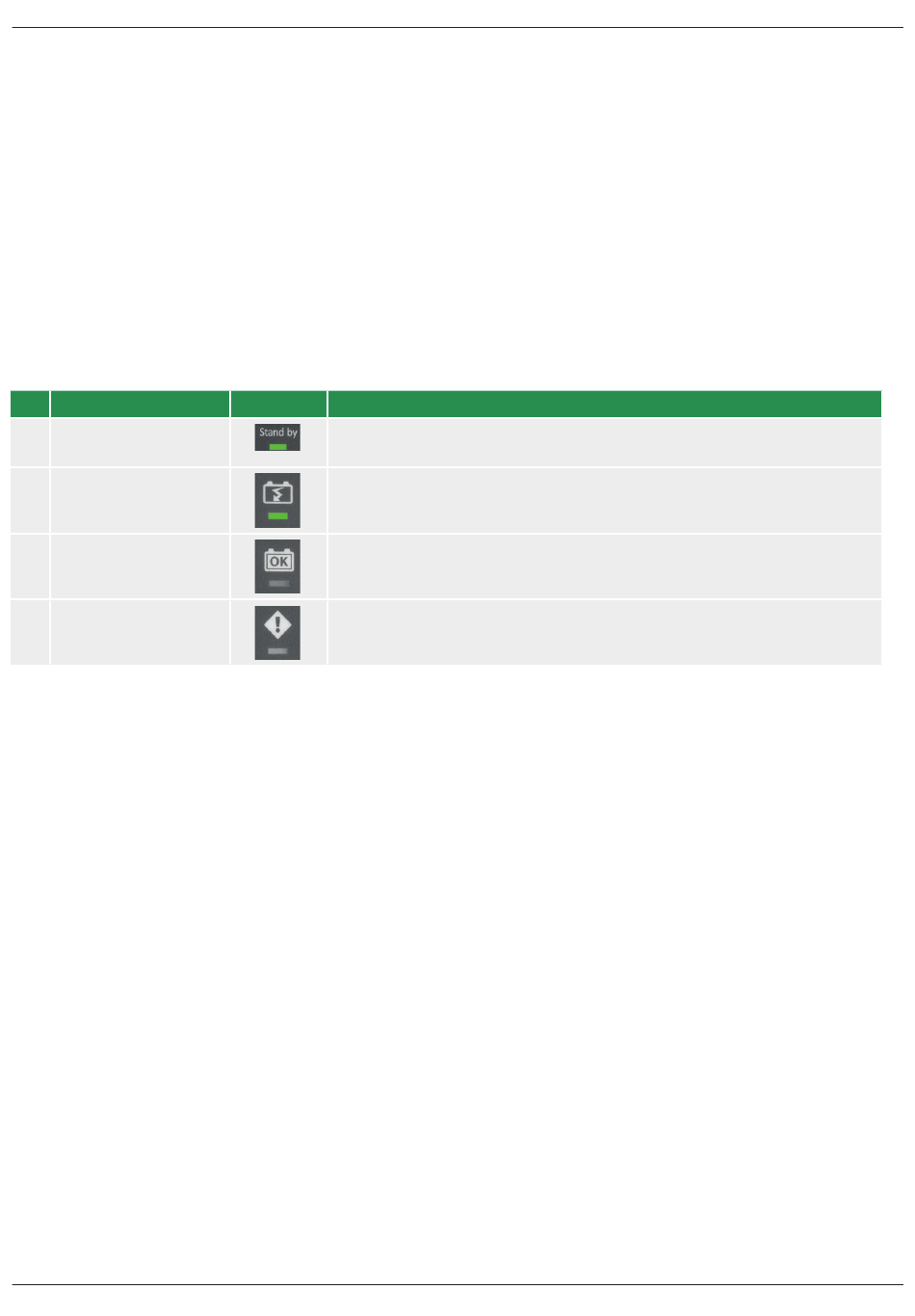

Indicator Function
◾ Switched on, not charging
◾ Press the mode button once, LED 2 will light up, then
the charger will switch to charging mode.
◾ LED 2 OFF, LED 3 ON means fully charged.
◾ LED 4 ON
