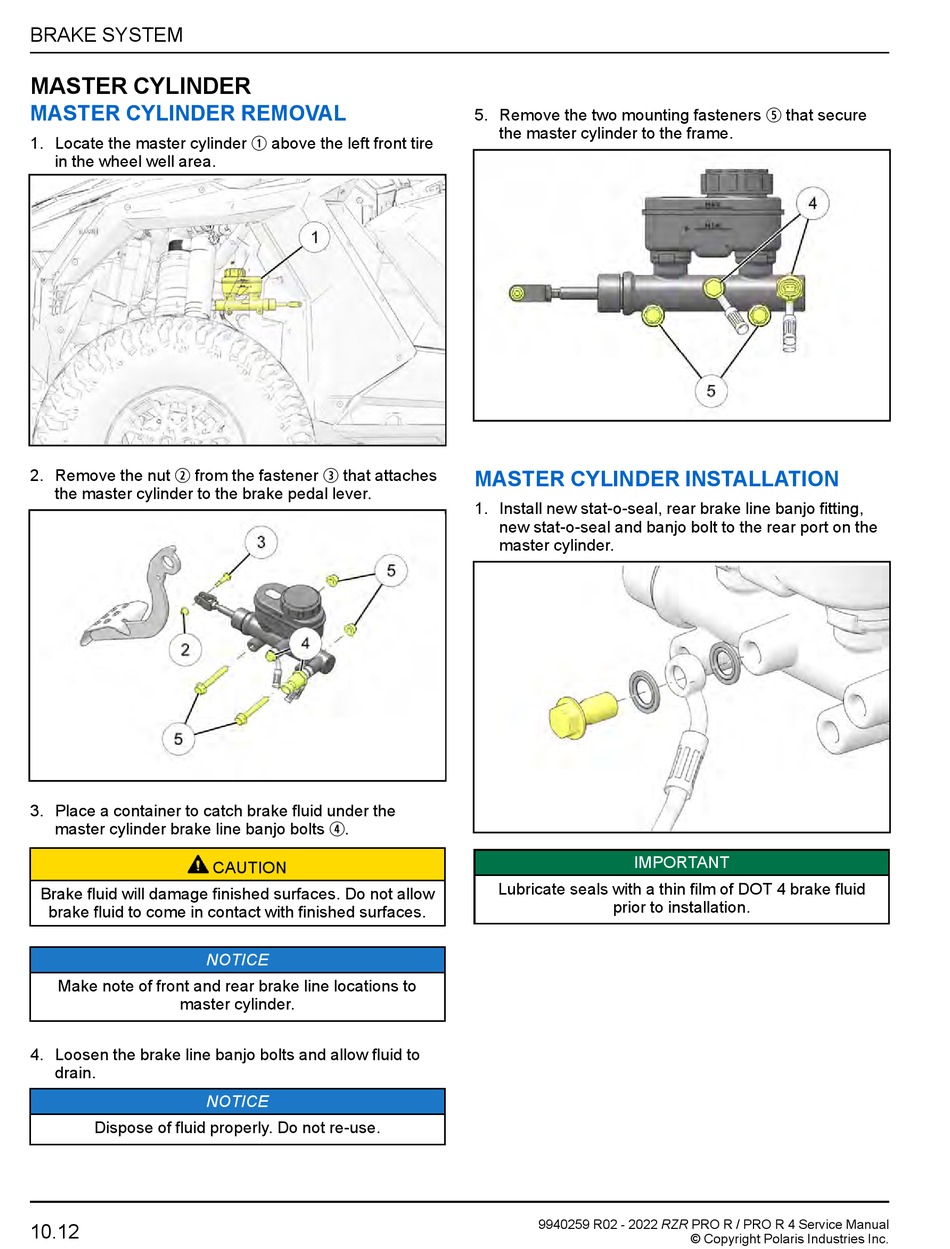

Master Cylinder; Master Cylinder Removal; Master Cylinder Installation - Polaris RZR PRO R Service Manual

BRAKE SYSTEM

MASTER CYLINDER

MASTER CYLINDER REMOVAL

1. Locate the master cylinder
in the wheel well area.
w
2. Remove the nut from the fastener
the master cylinder to the brake pedal lever.
3. Place a container to catch brake fluid under the
master cylinder brake line banjo bolts
Brake fluid will damage finished surfaces. Do not allow
brake fluid to come in contact with finished surfaces.
NOTICE
Make note of front and rear brake line locations to
master cylinder.
4. Loosen the brake line banjo bolts and allow fluid to
drain.
NOTICE
Dispose of fluid properly. Do not re-use.
10.12
q
above the left front tire
e
that attaches
r
.
CAUTION
5. Remove the two mounting fasteners
the master cylinder to the frame.

MASTER CYLINDER INSTALLATION

1. Install new stat-o-seal, rear brake line banjo fitting,
new stat-o-seal and banjo bolt to the rear port on the
master cylinder.
IMPORTANT
Lubricate seals with a thin film of DOT 4 brake fluid
prior to installation.
9940259 R02 - 2022 RZR PRO R / PRO R 4 Service Manual
t
that secure
