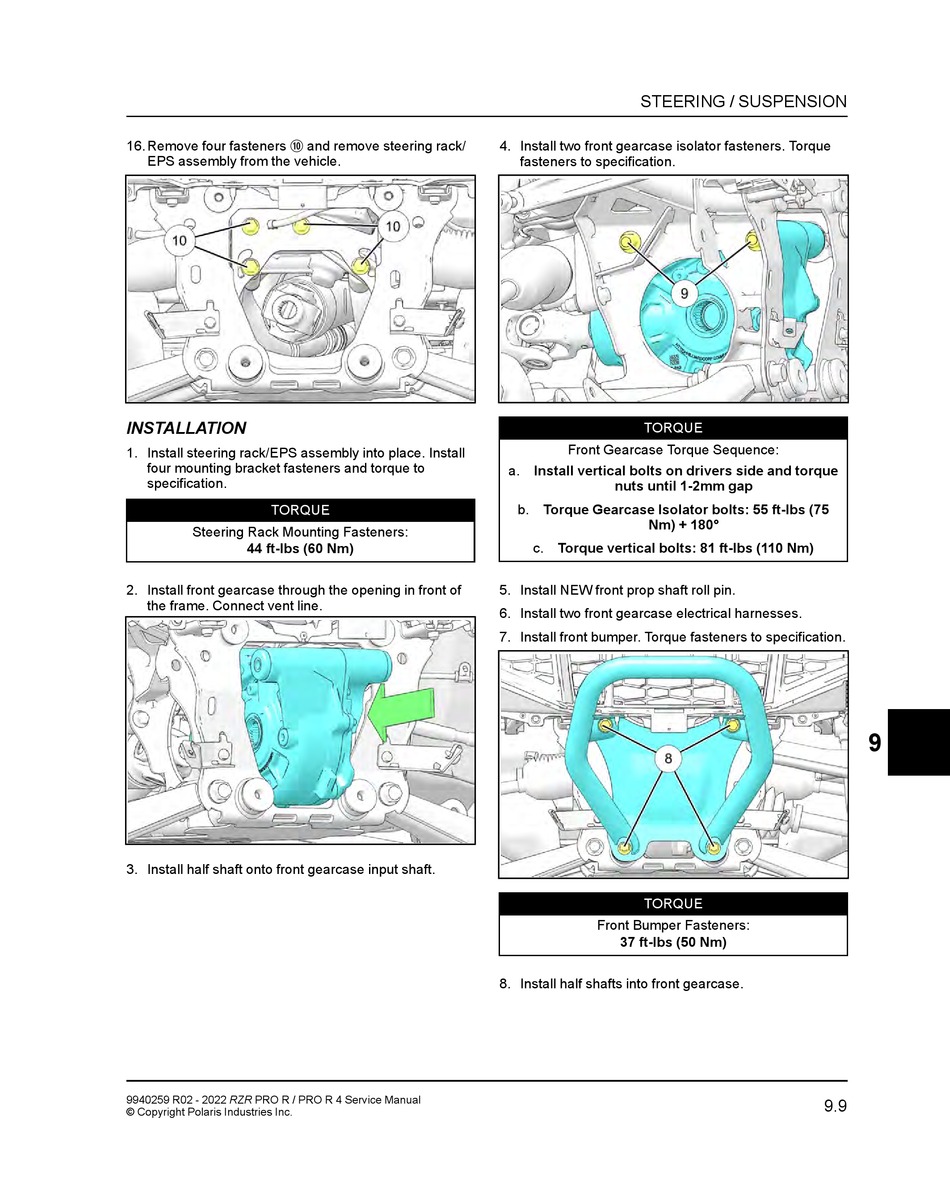

Polaris RZR PRO R Service Manual page 347

a
16. Remove four fasteners
EPS assembly from the vehicle.
INSTALLATION
1. Install steering rack/EPS assembly into place. Install
four mounting bracket fasteners and torque to
specification.
TORQUE
Steering Rack Mounting Fasteners:
44 ft-lbs (60 Nm)
2. Install front gearcase through the opening in front of
the frame. Connect vent line.
3. Install half shaft onto front gearcase input shaft.
9940259 R02 - 2022 RZR PRO R / PRO R 4 Service Manual
© Copyright Polaris Industries Inc.
and remove steering rack/
STEERING / SUSPENSION
4. Install two front gearcase isolator fasteners. Torque
fasteners to specification.
TORQUE
Front Gearcase Torque Sequence:
a. Install vertical bolts on drivers side and torque
nuts until 1-2mm gap
b. Torque Gearcase Isolator bolts: 55 ft-lbs (75
Nm) + 180°
c. Torque vertical bolts: 81 ft-lbs (110 Nm)
5. Install NEW front prop shaft roll pin.
6. Install two front gearcase electrical harnesses.
7. Install front bumper. Torque fasteners to specification.
TORQUE
Front Bumper Fasteners:
37 ft-lbs (50 Nm)
8. Install half shafts into front gearcase.
9
9.9
