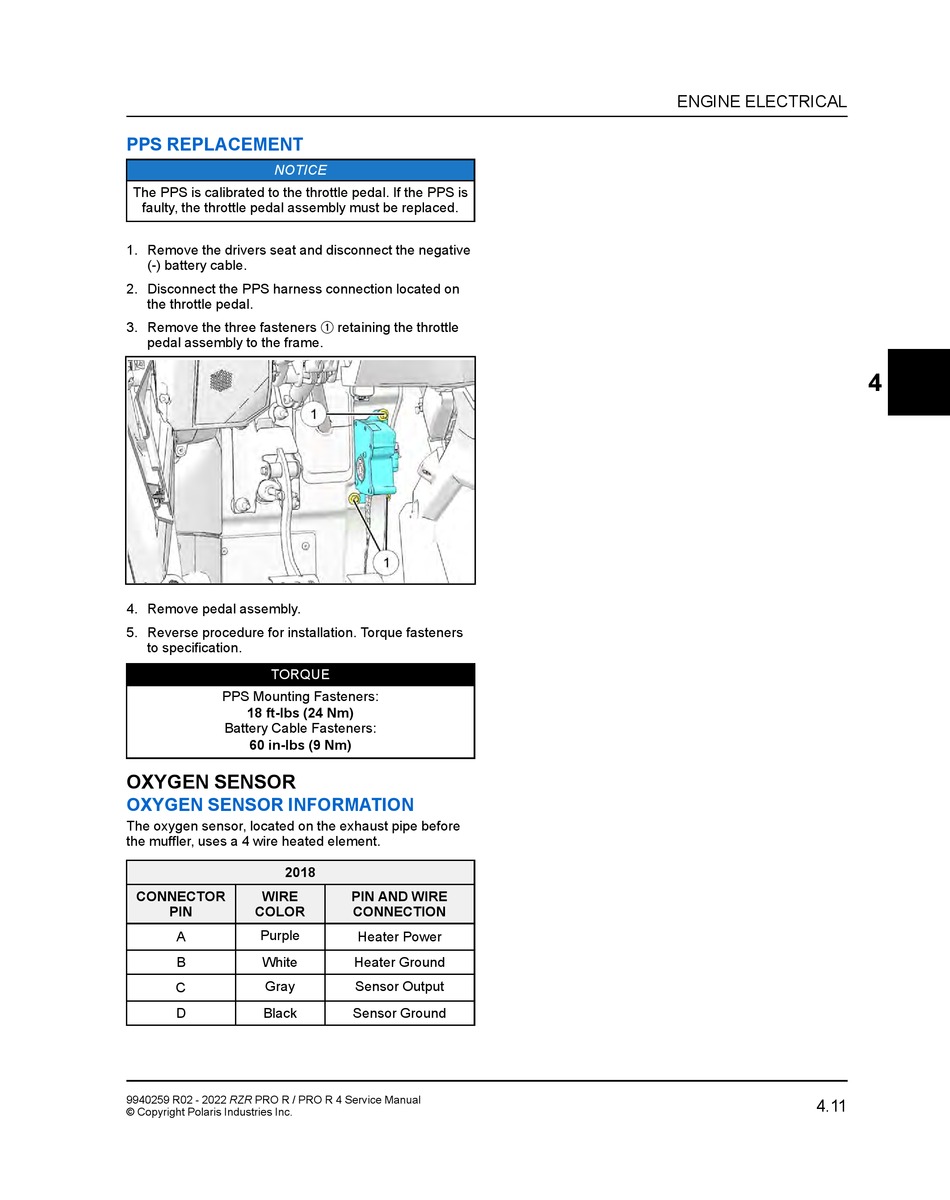

PPS REPLACEMENT

NOTICE
The PPS is calibrated to the throttle pedal. If the PPS is
faulty, the throttle pedal assembly must be replaced.
1. Remove the drivers seat and disconnect the negative
(-) battery cable.
2. Disconnect the PPS harness connection located on
the throttle pedal.
3. Remove the three fasteners
pedal assembly to the frame.
4. Remove pedal assembly.
5. Reverse procedure for installation. Torque fasteners
to specification.
TORQUE
PPS Mounting Fasteners:
18 ft-lbs (24 Nm)
Battery Cable Fasteners:
60 in-lbs (9 Nm)

OXYGEN SENSOR

OXYGEN SENSOR INFORMATION

The oxygen sensor, located on the exhaust pipe before
the muffler, uses a 4 wire heated element.
2018
CONNECTOR WIRE
PIN COLOR
Purple
A
B White
Gray
C
D Black
