Product description
3.6

Dimensions

3.6.1

Dimension of heat pump models 5 OR-S, 7 OR-S, 9 OR-S

99

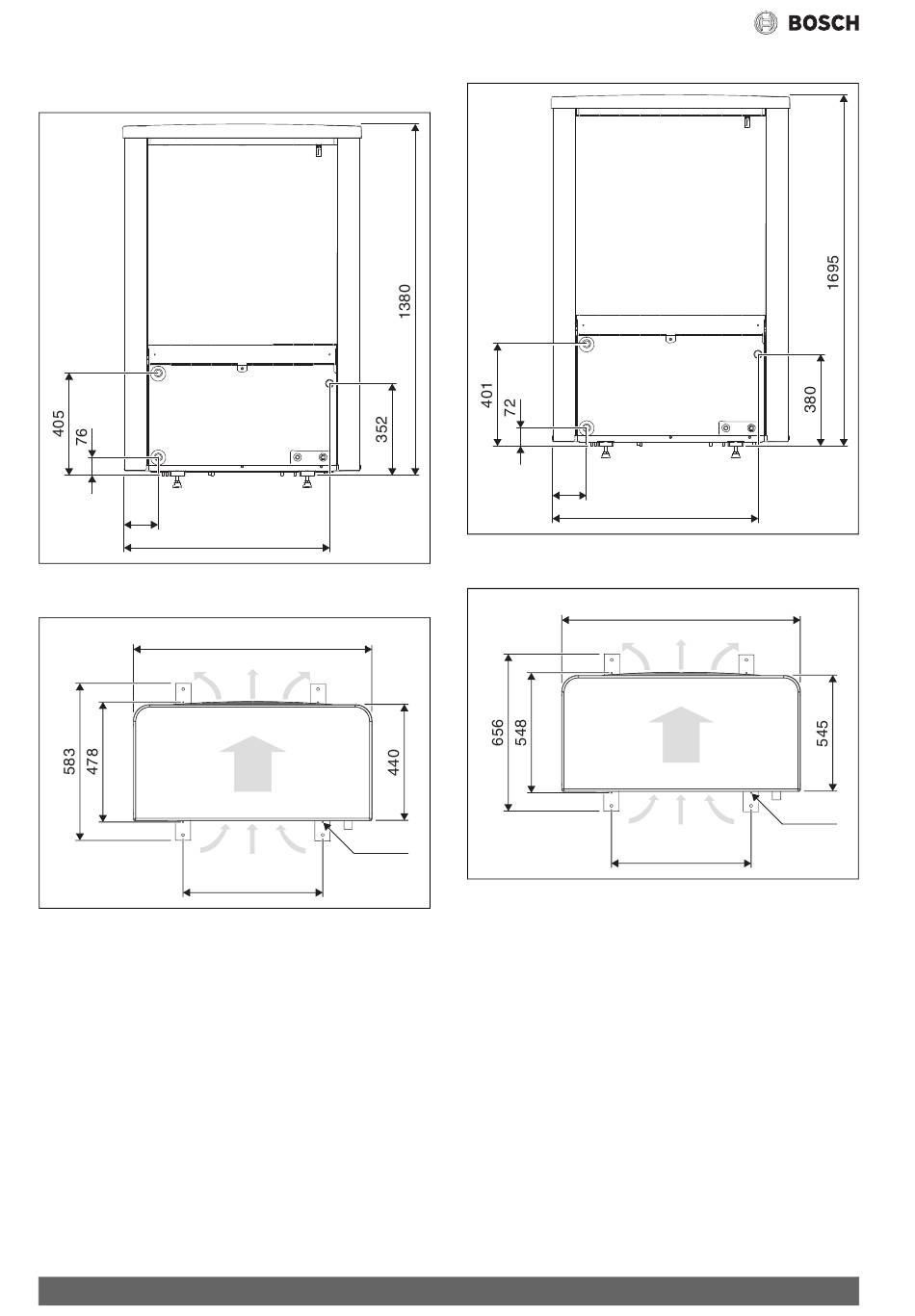

Fig. 3 Dimensions and connections of heat pump models 5 OR-S-9
OR-S
Fig. 4 Dimensions of heat pump models 5 OR-S-9 OR-S, view from top
6
836
930
ø10,5
510
3.6.2 Dimensions of heat pump models 13 OR-S/T, 17 OR-T
132
Fig. 5 Dimensions and connections of heat pump models 13 OR-S/T-

17 OR-T

Fig. 6 Dimensions of heat pump models 13 OR-S/T-17 OR-T, view
from top
Compress 7000i AW – 6721830633 (2021/02)
976
1122
ø10,5
680
