Sony RB1G Service Manual page 9

RB1G CHASSIS
Safety Notes
W600A/ W603A/ W605A/ W607A/ W650A/ W651A/ W653A/
W654A/ W655A/ W656A/W657A/ W658A/ W670A/ W674A

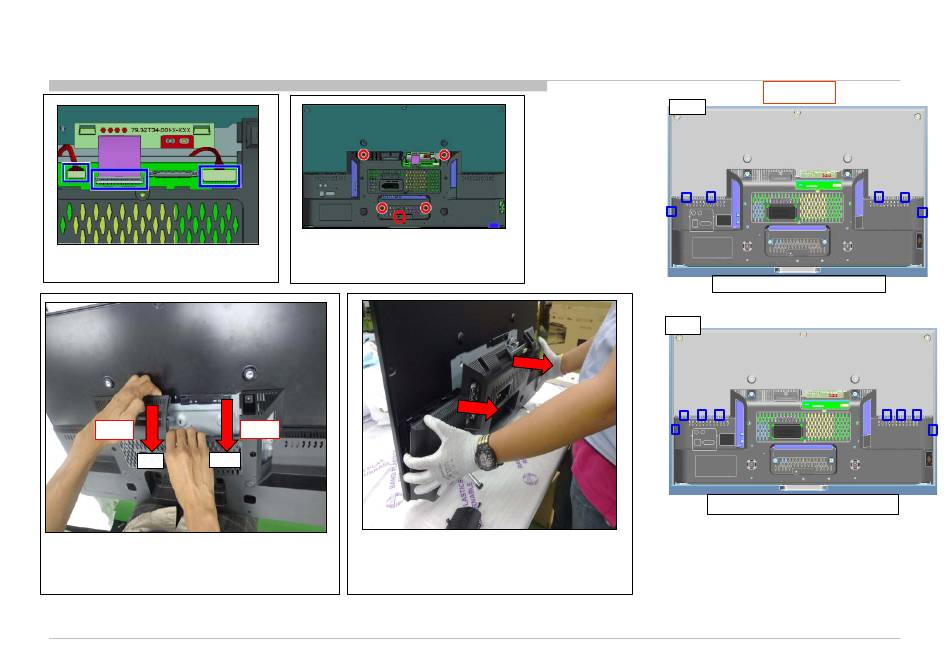

1-8-2 . Method to disassemble Chassis Box (Standing)
CAUTION
32"
2. Remove 5 screws from Chassis Box.
1. Remove 3 connectors
Make sure 32" got 6 hooks
42"
Pull Pull
1
2
Make sure 42" got 8 hooks
3. Pull opening of Bracket Top area to make gap from
4. Take out Chassis Box
Chassis Box top edge.
Then insert fingers to top edge gap and pull Chassis
Box to release hooks, one side（1 or 2）at one time
9
