Sony RB1G Service Manual page 23

Troubleshooting
Troubleshooting Reference

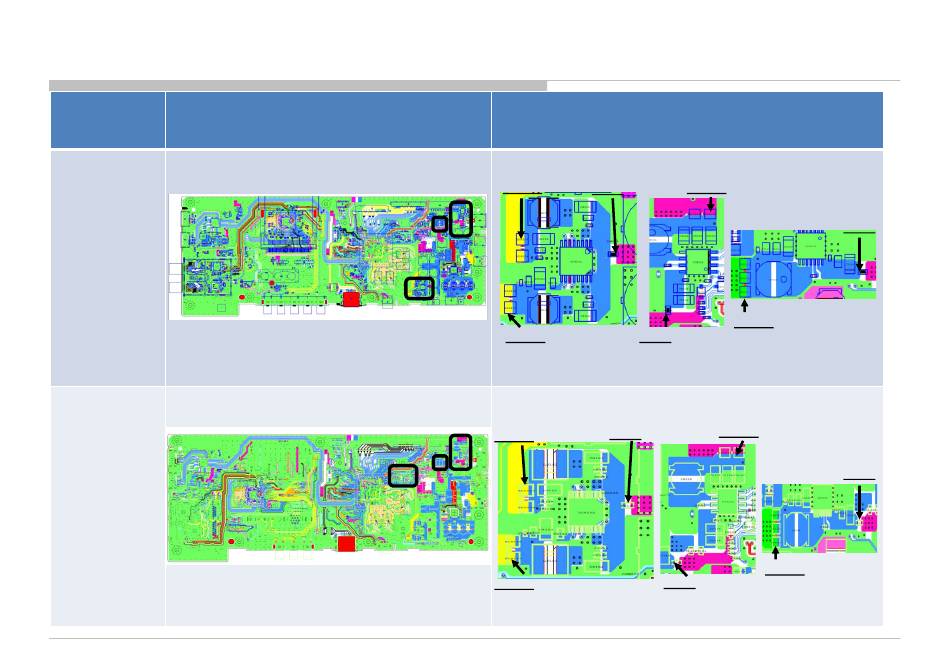

Board Name Board PWB (A side)
BKX
(SL9103)
(SL9105)
(SL9107)
(SL9109)
(SL9111)
(F9102)
(F9104)
(F9105)
(F9106)
BKJ
(SL9103)
(SL9105)
(SL9107)
(SL9109)
(SL9111)
(F9102)
(F9104)
(F9105)
(F9106)
Detail
SL9103
F9102
SL9107 F9104
F9102
SL9103
F9104
SL9107
W600A/ W603A/ W605A/ W607A/ W650A/ W651A/ W653A/
W654A/ W655A/ W656A/W657A/ W658A/ W670A/ W674A
SL9109
F9105
SL9111
SL9109
F9105
SL9111
RB1G CHASSIS
