For safe operation, read and understand this router manual and the
!
WARNING
router table's manual before using either.
Your router can also be used in a router table.

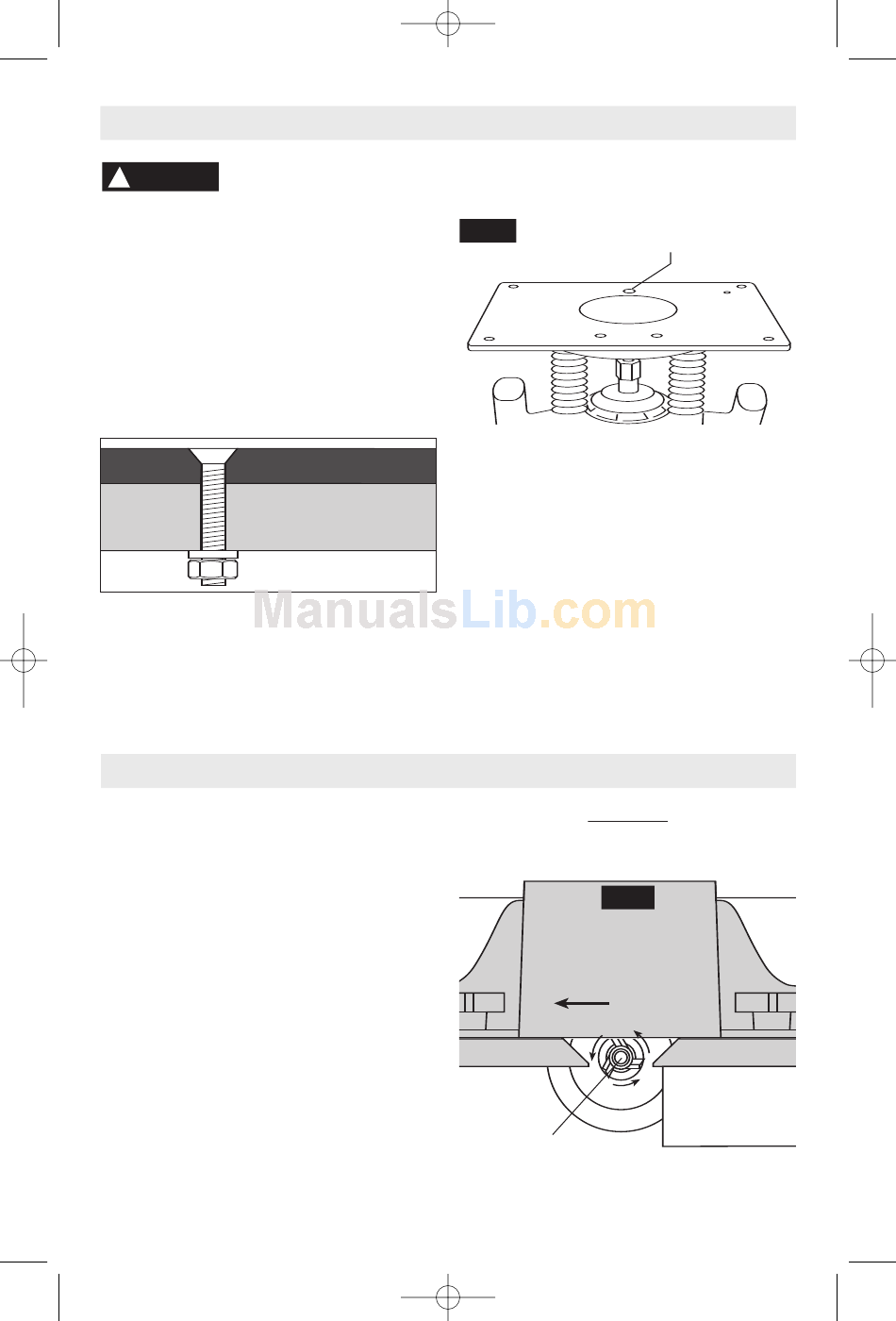

ATTACHING ROUTER BASE TO
MOUNTING PLATE
1. First remove the router's sub-base.
2. Attach the router to the router table's
mounting plate using three 1/4" x 20
countersunk phillips machine screws, washers
and nuts (Fig. 20).
thickness of your router table or router table
mounting plate.
If your router table mounting plate does not
have countersunk holes, you will need to
determine the hole locations, drill and
countersink them.
DEPTH ADJUSTMENT
See Plunge Action, depth Rod and Turret, and
Fine adjustments section on page 8 and 9.
FEEDING THE WORKPIECE ON A ROUTER
Always use your router table's fence or starter
pin and the appropriate guard and follow the
router table's instruction manual. ALWAYS
feed the workpiece from right to left across the
front of the bit. On Bosch router tables, the
correct feed direction is also shown on fence
housing and on the featherboards, when they
have been properly installed. (Fig. 21)
Whenever possible, when using the fence, use
a push stick to push the workpiece, especially
when working with narrow pieces.
For complete instructions on operation of a
router in a router table, please refer to the
instructions that come with the router table.
7/24/06 9:03 AM
Operation in Router Table
The length will depend on the
MOUNTING PLATE
ROUTER BASE
Operating Instructions
TABLE
Page 16
1/4" X 20 COUNTERSUNK
FIG. 20
PHILLIPS MACHINE SCREWS
CONNECT THE ROUTER AND THE
ROUTER TABLE SWITCH
To prepare for use of the switch,
1. Make sure the router switch and the router
table switch are both turned off.
2. Plug the router table switch cord to wall
outlet.
3. Plug the router into the "pigtail" socket on
the router table switch.
4. Lock router switch on: squeeze trigger,
depress lock-on button, and release trigger.
5. Use the router table switch to start and stop
the router.
TOP VIEW
NOTE: For clarity, guard and featherboard
removed from drawing.
FENCE FACE
BIT BEARING
-16-
FIG. 21
DIRECTION
OF FEED
FENCE FACE
WORKPIECE
