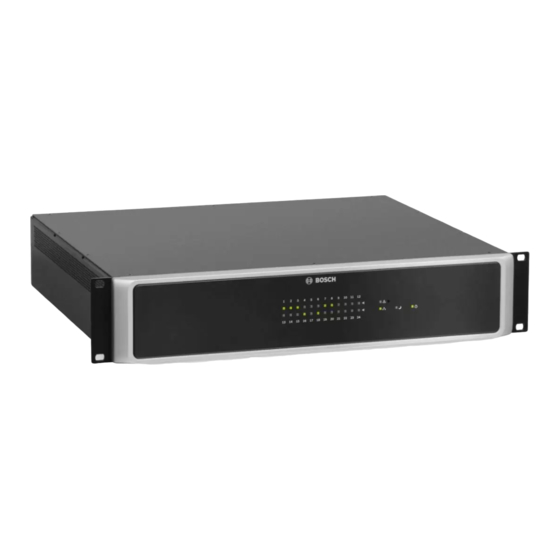

PAVIRO Router
PVA‑4R24
en
User manual

Advertisement

Table of Contents
loading

Summary of Contents for Bosch PAVIRO PVA-4R24

  • Page 1 PAVIRO Router PVA‑4R24 User manual...
  • Page 3: Table Of Contents

    Line supervision 8.1.1 Impedance measurement 8.1.2 EOL slave module 8.1.3 Plena EOL Pilot tone Amplifier input supervision Maintenance Firmware update Resetting to factory default settings Technical data 10.1 Dimensions Bosch Security Systems, B.V. 2022-11 | 07 | F01U306901 User manual...
  • Page 4: Important Product Information

    Warning! To prevent a shock hazard disconnect all power sources prior to system installation. 13. Only use recommended batteries and observe polarity. Risk of explosion if an incorrect type of battery is used. 2022-11 | 07 | F01U306901 Bosch Security Systems, B.V. User manual...
  • Page 5: Disposal Instructions

    To dispose of old electrical or electronic devices, you should use the return and collection systems put in place in the country concerned. FCC statement Warning! Changes or modifications not expressly approved by Bosch could void the user’s authority to operate the equipment. Notice! This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 6: Short Information

    The zone indicator lights on the front indicate the current status of every zone: – Green: Zone in use for non emergency purpose – Red: Zone in use for emergency purpose – Yellow: Zone fault detected – Off: Zone in idle condition 2022-11 | 07 | F01U306901 Bosch Security Systems, B.V. User manual...
  • Page 7: System Overview

    This button has the following functions if the CAN address of the device is set to 00: – Resetting a fault (e.g. watchdog fault): Press the button briefly to confirm a fault. Bosch Security Systems, B.V. 2022-11 | 07 | F01U306901 User manual...
  • Page 8 Standby indicator This indicator lights up green when the device is in light standby mode. Power indicator This indicator lights up green when the power light supply is OK. 2022-11 | 07 | F01U306901 Bosch Security Systems, B.V. User manual...
  • Page 9: Rear Panel

    6 DC power input 7 CAN ADDRESS selector HIGH-byte and LOW-byte for configuring the CAN switch address of the device. 8 CAN BUS port Connection with CAN bus, e.g. controller. Bosch Security Systems, B.V. 2022-11 | 07 | F01U306901 User manual...
  • Page 10: Parts Included

    | Parts included PAVIRO Router Parts included Quantity Component PVA-4R24 Router Set of connectors Set of feet Installation manual Important safety instructions 2022-11 | 07 | F01U306901 Bosch Security Systems, B.V. User manual...
  • Page 11: Installation

    The device must be protected from: – Dripping water or spray – Direct sunlight – High ambient temperatures or immediate sources of heat – High humidity – Large dust deposits – Strong vibrations Bosch Security Systems, B.V. 2022-11 | 07 | F01U306901 User manual...
  • Page 12 Remote control via the CAN bus – Monitoring of the DC input – Function of the Control Port Standby operation is activated via the CAN bus and indicated by the Standby indicator light. 2022-11 | 07 | F01U306901 Bosch Security Systems, B.V. User manual...
  • Page 13: Connection

    A (C) and B (D). Spare amplifier input S2 of AMP IN B (D) is for replacing the amplifiers connected to inputs 2 of routing blocks A (C) and B (D). Bosch Security Systems, B.V. 2022-11 | 07 | F01U306901 User manual...
  • Page 14: Loudspeaker Output

    VDE regulation DIN VDE 0800 is mandatory. Especially, when 100 V loudspeaker networks in alarm system applications are concerned, all safety precautions have to be in accordance with the safety class 2 wiring. 2022-11 | 07 | F01U306901 Bosch Security Systems, B.V. User manual...
  • Page 15: Supply Voltage

    The DC input is protected against incorrect polarity and overload. The associated fuse is located on the inside of the device and is not accessible from outside of the device. Warning! Never connect the positive terminal + with ground. Bosch Security Systems, B.V. 2022-11 | 07 | F01U306901 User manual...
  • Page 16: Can Bus

    Table 6.1: Data rate and bus length of the CAN BUS The following diagrams show the assignment of the CAN port/CAN connector. Figure 6.1: Assignment of the CAN port Figure 6.2: Assignment of the CAN connector 2022-11 | 07 | F01U306901 Bosch Security Systems, B.V. User manual...
  • Page 17 Since there must always be precisely two terminating resistors on a CAN bus, a stub line cannot be terminated. This creates reflections, which impair the rest of the bus system. To Bosch Security Systems, B.V. 2022-11 | 07 | F01U306901...
  • Page 18: Control Input

    1.5 mm² (AWG16) can be used. Recommended connecting cable: shielded flexible stranded wire, LiY, 0.5 mm². The control port is configured in IRIS-Net. Caution! The maximum permissible voltage on a control input is 32 V. 2022-11 | 07 | F01U306901 Bosch Security Systems, B.V. User manual...
  • Page 19: Control Output

    The isolated control inputs can be used as normal logical (high/low) input (with low <= 5 V or high >= 10 V) only. This inputs comply with VDE 0833-4. Control output Bosch Security Systems, B.V. 2022-11 | 07 | F01U306901 User manual...
  • Page 20 To integrate the device into the hazard alert systems, a normally-closed contact (standby current principle) is recommended. Caution! The maximum load of the control relay is 32 V/1 A. 2022-11 | 07 | F01U306901 Bosch Security Systems, B.V. User manual...
  • Page 21 PAVIRO Router Connection | en 4CR12 4R24 Figure 6.5: Internal configuration of the REL contact (VDE 0833-4) Bosch Security Systems, B.V. 2022-11 | 07 | F01U306901 User manual...
  • Page 22: Configuration

    0 to F 192 to 207 0 to F 208 to 223 0 to F 224 to 239 0 to A 240 to 250 B to F Reserved Table 7.5: CAN addresses 2022-11 | 07 | F01U306901 Bosch Security Systems, B.V. User manual...
  • Page 23: Displaying The Can Baud Rate

    62.5 kbit/s to 20 kbit/s, press the Recessed button exactly five times, i.e. 62.5 > 125 > 250 > 500 > 10 > 20). The new CAN baud rate is applied two seconds after the last time that the Recessed button is pressed. Bosch Security Systems, B.V. 2022-11 | 07 | F01U306901 User manual...
  • Page 24: Operation

    A defective loudspeaker might not be detected if long loudspeaker cables with a higher measuring frequency are used, due to the fact that the cable impedance (or cable capacitance) might become dominant compared with the loudspeaker impedance. 2022-11 | 07 | F01U306901 Bosch Security Systems, B.V. User manual...
  • Page 25: Eol Slave Module

    EOL master does not receive a response from the slave – then an error message is generated. The unique addressing of the slave modules means that multiple slave modules can be connected to one speaker line. Bosch Security Systems, B.V. 2022-11 | 07 | F01U306901 User manual...
  • Page 26: Plena Eol

    Since the background music also includes a pilot tone signal, there is no need to interrupt background music. Please refer to the system manual for details about installation and configuration. 2022-11 | 07 | F01U306901 Bosch Security Systems, B.V. User manual...
  • Page 27: Pilot Tone

    Parameter Value/Range Frequency 1000 - 25000 Hz Voltage > 3 Veff Test cycle < 10 seconds The supervision can be switched on/off with the IRIS-Net software. Bosch Security Systems, B.V. 2022-11 | 07 | F01U306901 User manual...
  • Page 28: Maintenance

    The device has now been reset to the factory default settings. Caution! Before reconnecting the device to the CAN BUS, note the CAN baud rate, which may change under certain circumstances. 2022-11 | 07 | F01U306901 Bosch Security Systems, B.V. User manual...
  • Page 29: Technical Data

    -5 °C to +45 °C (+23 °F to +113 °F) Storage temperature -40 °C to +70 °C (-40 °F to +158 °F) Humidity (non-condensing) 5% to 90% Altitude Up to 2000 m Mechanical Dimensions (HxWxD) 88 mm x 483 mm x 391 mm Bosch Security Systems, B.V. 2022-11 | 07 | F01U306901 User manual...
  • Page 30: Dimensions

    | Technical data PAVIRO Router Weight (net) 8.2 kg Mouting Standalone; 19 in. rack Color Black with silver 10.1 Dimensions 2022-11 | 07 | F01U306901 Bosch Security Systems, B.V. User manual...
  • Page 32 Bosch Security Systems B.V. Torenallee 49 5617 BA Eindhoven Netherlands www.boschsecurity.com © Bosch Security Systems B.V., 2022 Building solutions for a better life. 202211301045...
