System Components
Rear Panel

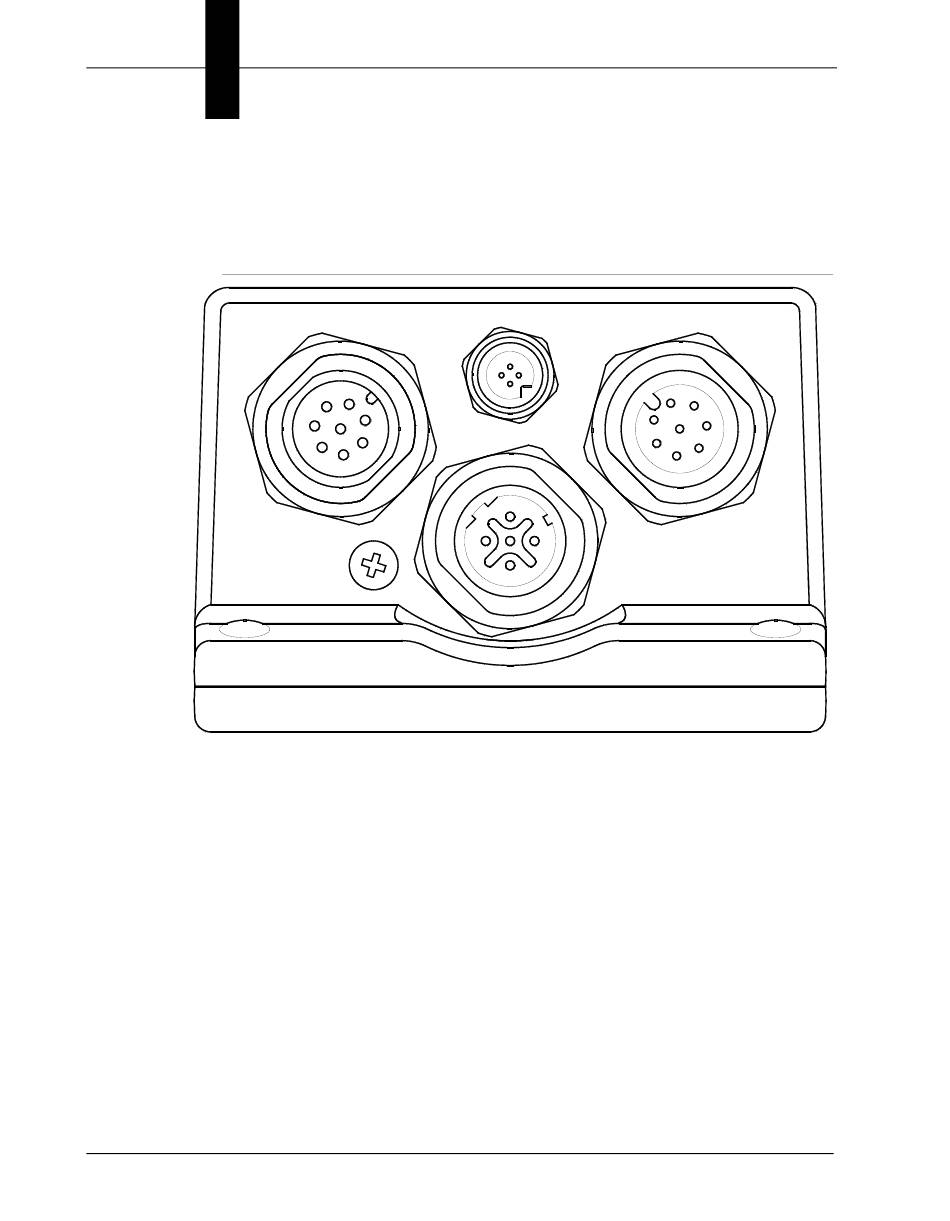

Figure 2–2 details the layout of the rear panel.
FIGURE 2–2.
X1
•
X1 — Power & Primary I/O (M12 A-coded, plug)
•
X2 — External Light Power, Strobe only (M5, socket)
•
X3 — Secondary I/O, Serial (M12 A-coded, socket)
•
X4 — Industrial Ethernet (M12 D-Coded)
•
S1 — QuicSet™ (Remove screw for access)
2-6
Rear Panel Layout
S1
SIMATIC HawkEye™ 1600T Smart Camera Guide
X2
X3
X4
