Adjusting the position attached the Saddle Inlet Flapper Solenoid (SL206)

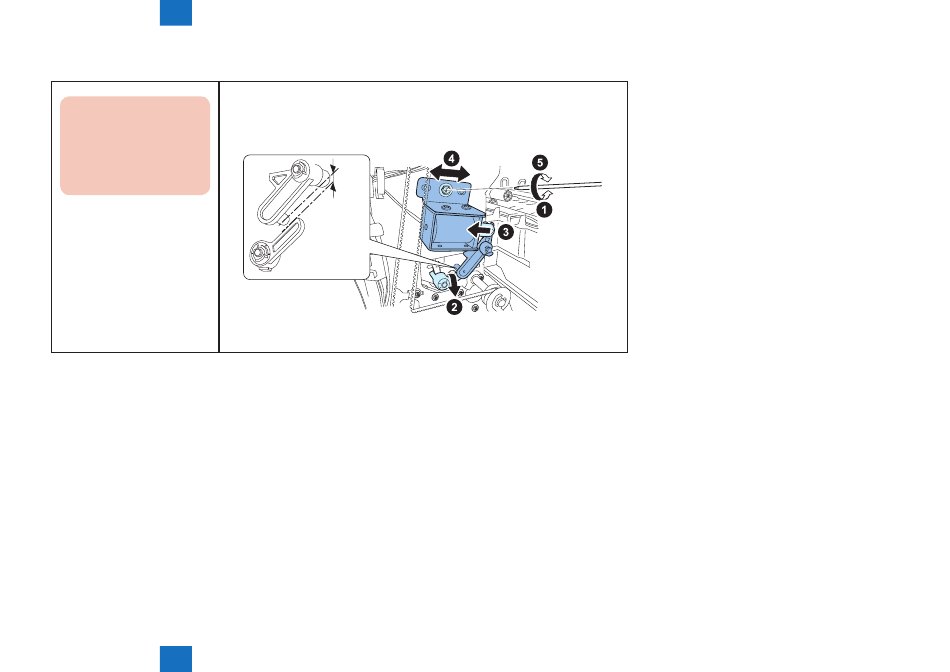

1) Loosen the screw.
2) Lower the arm of the saddle inlet flapper until it stops. Then, shift the position of the solenoid so that
the arm bumps against the link when pushing the plunger of the solenoid.
CAUTION:
3) Tighten the screw.
When attaching the saddle
inlet flapper solenoid
(SL206), adjust the position
attached the solenoid.
